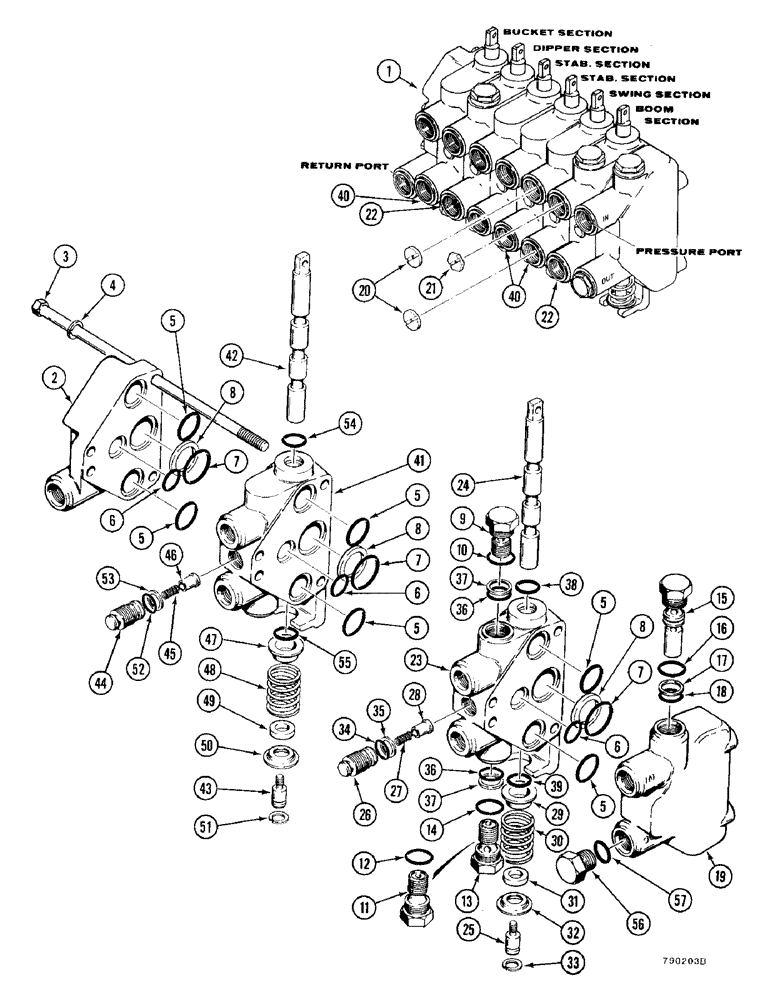

Запчасти Case FH4 (3-24) - BACKHOE CONTROL VALVE ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

H513788

LOCK VALVE

BACKHOE CONTROL VALVE ASSEMBLY, Includes: Refs. 2-39

1шт.

2

H52803

PLATE ASSY.

PLATE - end, Includes: Refs. 3, 4

1шт.

3

H52811

BOLT

BOLT - retaining

4шт.

4

92-6

LOCK WASHER,3/8"

4шт.

H52969

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

KIT - seal (Between sections), Includes: Refs. 5-8

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - o-ring

12шт.

6

NSS

NOT SOLD SEPARAT

SEAL - o-ring

6шт.

7

NSS

NOT SOLD SEPARAT

SEAL - o-ring

6шт.

8

NSS

NOT SOLD SEPARAT

WASHER - backup

6шт.

H351791

VALVE

- relief, 3000 PSI (Dipper & boom section top), Includes: Refs. 9, 10

2шт.

9

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

10

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - o-ring

1шт.

11

H52837

PLUG

- dipper section, Includes: Ref. 12

1шт.

12

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - o-ring

1шт.

H351791

VALVE

- relief, 3000 PSI (Boom section bottom), Includes: Refs. 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - relief

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - o-ring

1шт.

F88054

VALVE

- relief - 2000 PSI (Port plate), Includes: Refs. 15-18

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - relief

1шт.

H226415

SEAL ASSY.

KIT - seal, Includes: Refs. 16-18

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - o-ring

1шт.

17

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - o-ring

1шт.

19

H52852

PLATE ASSY.

PLATE - port

1шт.

20

H61077

ORIFICE

- swing section

2шт.

21

H746859

PLATE ASSY.

ORIFICE - boom section - upper

1шт.

22

H513630

SECTOR

BOOM & DIPPER SECTION - valve, Includes: Refs. 23-39

2шт.

23

NSS

NOT SOLD SEPARAT

BODY - valve section

1шт.

24

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

25

H210831

SCREW

SCREW - spool

1шт.

26

H52886

BODY

CHECK - lift

1шт.

27

H47514

SPRING

- check

1шт.

28

H52894

PLUNGER

- check

1шт.

29

H52902

CAP

WASHER - deep

1шт.

30

F59118

SPRING

- spool return

1шт.

31

H746164

WASHER

SPACER - spring

1шт.

32

F59116

WASHER

- shallow

1шт.

33

A27804

CIRCLIP,#50, .392" Dia, E-Type

RING, Retaining, #50, .392" Dia, E-Type

1шт.

H52985

GASKET KIT

KIT - seal repair (Boom & dipper section), Includes: Refs. 34-39

1шт.

34

NSS

NOT SOLD SEPARAT

SEAL - o-ring, check

1шт.

35

NSS

NOT SOLD SEPARAT

WASHER - backup, check

1шт.

36

NSS

NOT SOLD SEPARAT

SEAL - o-ring, relief valve and plug

2шт.

37

NSS

NOT SOLD SEPARAT

WASHER - backup, relief valve and plug

2шт.

38

NSS

NOT SOLD SEPARAT

SEAL - o-ring, spool (Upper)

1шт.

39

NSS

NOT SOLD SEPARAT

SEAL - o-ring, spool (Lower)

1шт.

40

H513648

VALVE

BUCKET STABILIZER SWING SECTION - valve, Includes: Refs. 41-55

4шт.

41

NSS

NOT SOLD SEPARAT

BODY - valve section

1шт.

42

NSS

NOT SOLD SEPARAT

SPOOL - valve section

1шт.

43

H210831

SCREW

END - valve spool

1шт.

44

H52886

BODY

CHECK - lift

1шт.

45

H47514

SPRING

- check

1шт.

46

H52894

PLUNGER

- check

1шт.

47

H52902

CAP

WASHER - deep

1шт.

48

F59118

SPRING

- spool return

1шт.

49

H746164

WASHER

SPACER - spring

1шт.

50

F59116

WASHER

- shallow

1шт.

51

A27804

CIRCLIP,#50, .392" Dia, E-Type

RING, Retaining, #50, .392" Dia, E-Type

1шт.

H52977

GASKET KIT

KIT - seal repair (Bucket, stabilizer & swing section), Includes: Refs. 52-55

1шт.

52

NSS

NOT SOLD SEPARAT

SEAL - o-ring, check

1шт.

53

NSS

NOT SOLD SEPARAT

WASHER - backup, check

1шт.

54

NSS

NOT SOLD SEPARAT

SEAL - o-ring, spool (Upper)

1шт.

55

NSS

NOT SOLD SEPARAT

SEAL - o-ring, spool (Lower)

1шт.

56

86512512

PLUG,7/8" - 14 ORB

Incl. Ref. 57 Hex Hd, 7/8"-14 ORB

1шт.

57

SEAL - o-ring

1шт.
