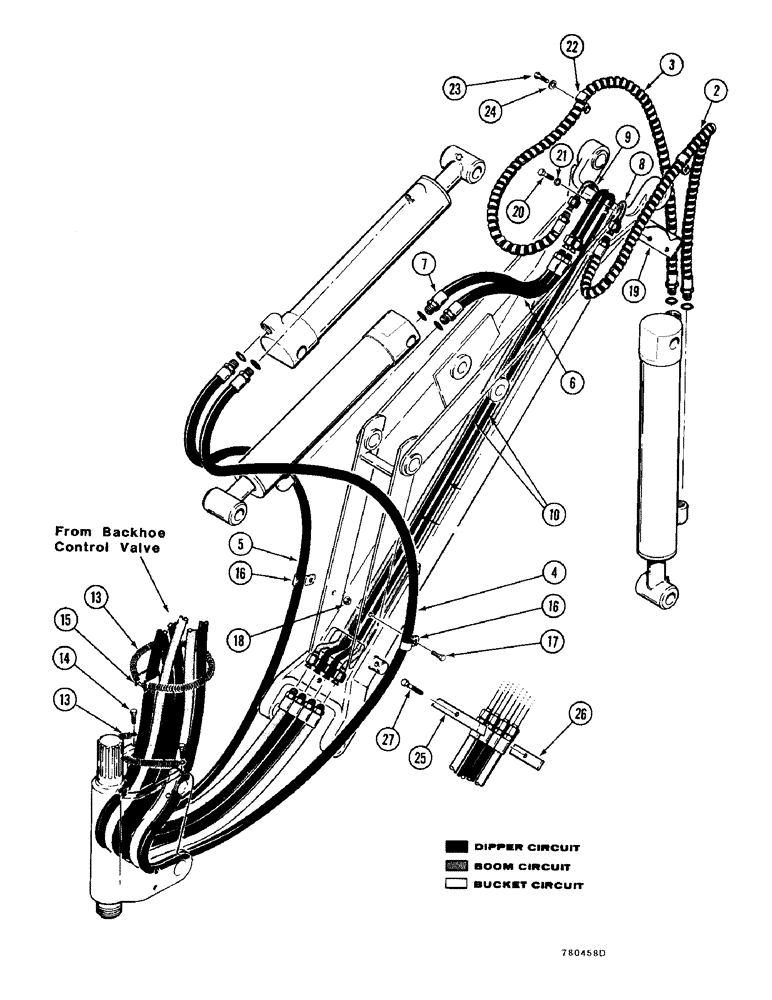

Запчасти Case FH4 (3-22) - BACKHOE BOOM, DIPPER, BUCKET HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

2

H357863

HOSE,9.65mm ID x 1549.4mm L, SAE 100R1

1шт.

Used on D-100

1шт.

2

H383976

HOSE,9.5mm ID x 1880mm L, SAE 100R1

D-100XR 9.50 mm ID x 1880.00 mm, SAE 100R1

1шт.

Used on D-100XR

1шт.

3

H268565

HYDRAULIC HOSE,9.52 mm ID x 1066.80 mm, SAE 100R1

(3/4 ORB x 3/4 JIC M) 9.52 mm ID x 1066.80 mm, SAE 100R1

1шт.

Used on D-100

1шт.

3

H383984

HOSE,9.50 mm ID x 1397.00 mm, SAE 100R1

1шт.

Used on D-100XR

1шт.

4

H360412

HOSE,0.38" ID x 75.00", SAE 100R1

1шт.

5

H195826

HOSE,0.38" ID x 55.00", SAE 100R1

HSOE, 0.38" ID x 55.00", SAE 100R1

1шт.

6

H268540

HYDRAULIC HOSE,9.52 mm ID x 889.00 mm, SAE 100R1

(3/4 ORB x 3/4 JIC M) 9.52 mm ID x 889.00 mm, SAE 100R1

1шт.

7

H244921

HYDRAULIC HOSE,9.52 mm ID x 381.00 mm, SAE 100R1

9.52 mm ID x 381.00 mm, SAE 100R1

1шт.

8

H593376

TUBE,0.5" OD

- bucket cylinder

1шт.

Used on D-100

1шт.

8

H645416

TUBE ASSY.,0.5" OD

TUBE - bucket cylinder

1шт.

Used on D-100XR

1шт.

9

H593384

TUBE,12.7 mm OD

- bucket cylinder

1шт.

Used on D-100

1шт.

9

H645424

TUBE ASSY.,0.5" OD

TUBE - bucket cylinder

1шт.

Used on D-100XR

1шт.

10

H593392

TUBE,0.5" OD

- bucket cylinder

2шт.

Used on D-100

1шт.

10

H656611

TUBE - bucket cylinder 12.7 mm OD

2шт.

Ref. 10 H656611 Another tube (not a sub) used H421818.

1шт.

Used on D-100XR

1шт.

13

H52548

SPRING

Includes: Ref. 14

2шт.

14

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

15

H52571

CLAMP

- hose

1шт.

16

H51763

CLAMP

- hose, Includes: Refs. 17, 18

2шт.

17

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

18

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

19

H386425

HOSE CLAMP

CLAMP - hose

1шт.

H61069

FLAP

CUSHION - anti-wear (Not shown), Includes: Refs. 20, 21

1шт.

20

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

21

280736

NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

22

H276758

CLAMP

- hose

2шт.

23

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

24

280129

NUT,1/4"-20

NUT, LOCK, 1/4"-20, GC

2шт.

25

H52589

CLAMP

- tube

1шт.

26

H51748

CLAMP

- base, Includes: Ref. 27

1шт.

27

131-121

SPRING NUT,Tinn, U, #10-24

BOLT - hex hd (5/16 x 2)

1шт.

Guard-Boom CYL. tube H421800.

1шт.

187-1069 Screw 2.

1шт.

113-104 Bolt 3

1шт.

131-176 Nut 2

1шт.

H45468 CLAMP-1

1шт.

Hose Sleeving L79101

1шт.

Nylon Tie L11541.

1шт.
