Запчасти Case FH4 (3-20) - BACKHOE CONTROL VALVE HYDRAULIC SYSTEM - REAR MOUNTED (35) - HYDRAULIC SYSTEMS

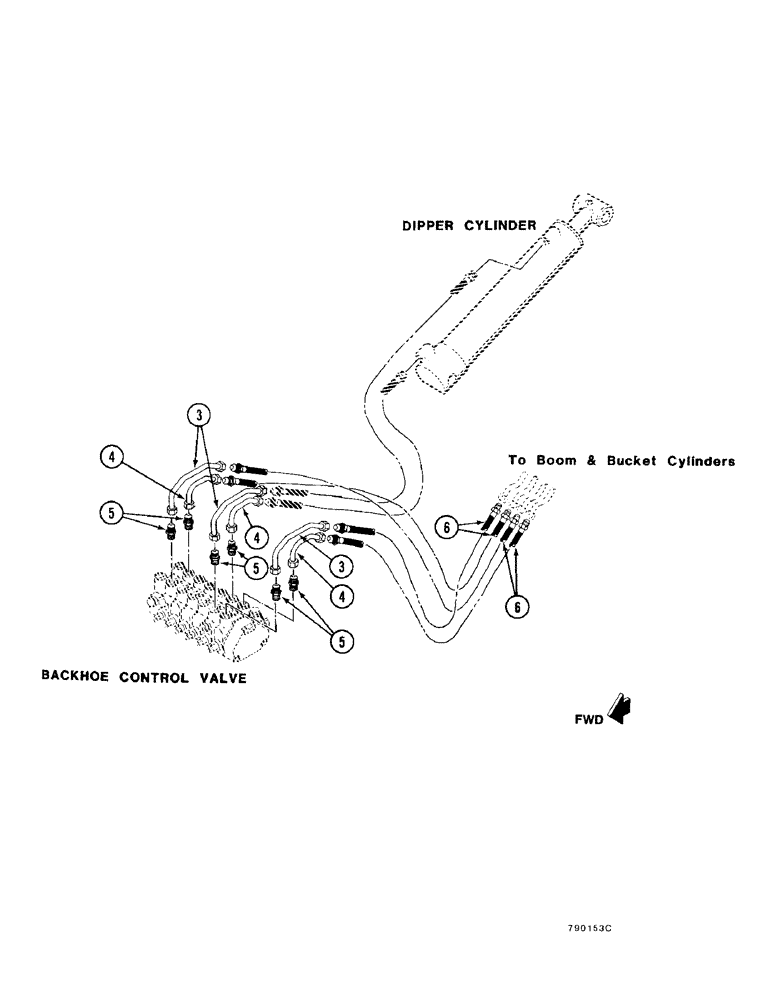

Схема запчастей Case FH4 - (3-20) - BACKHOE CONTROL VALVE HYDRAULIC SYSTEM - REAR MOUNTED (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

3

H560185

TUBE,0.5" OD x 7.094, 2" L

- long

3шт.

4

H560177

TUBE,0.5" OD

- short

3шт.

5

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - (3/4 ORB x 3/4 JIC M)

6шт.

6

H278994

HYDRAULIC HOSE,9.52 mm ID x 889.00 mm

(3/4 JIC M Ends) 9.52 mm ID x 889.00 mm

4шт.

Выбрано товаров: 4
