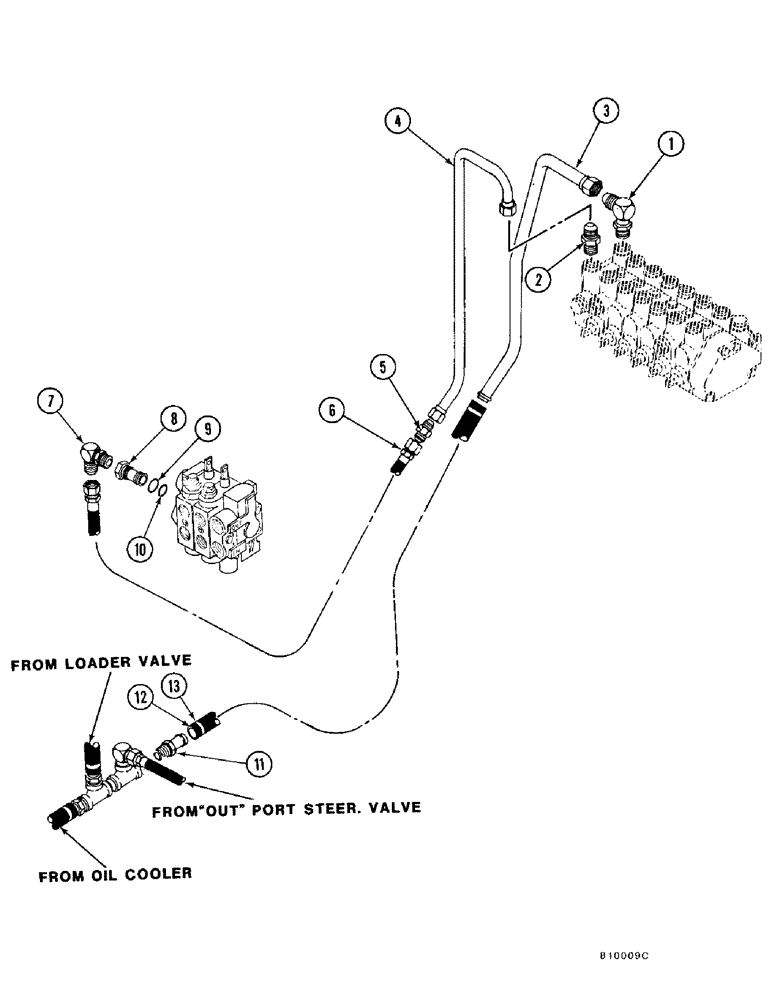

Запчасти Case FH4 (3-16) - BACKHOE SUPPLY AND RETURN HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degrees (7/8 ORB x 1-1/16 JIC M)

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - (7/8 ORB x 7/8 JIC M)

1шт.

3

H645044

TUBE ASSY.,19.05 mm OD

TUBE - return

1шт.

4

H645051

TUBE ASSY.,15.88 mm OD

TUBE - pressure

1шт.

5

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

CONNECTOR - (7/8 JIC M)

1шт.

6

H211284

HYDRAULIC HOSE,12.70 mm ID x 939.80 mm, SAE 100R1

12.70 mm ID x 939.80 mm, SAE 100R1

1шт.

7

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

(7/8 ORB x 7/8 JIC M) 90º, 7/8"-14, 37º x 7/8"-14, O-Ring

1шт.

H653121

ADAPTER

- power beyond, Includes: Refs. 8-10

1шт.

8

NSS

NOT SOLD SEPARAT

BODY

1шт.

9

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

1шт.

10

D77584

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

1шт.

11

217-155

FITTING,3/4" Hose Barb x 3/4" Male NPTF

CONNECTOR - (3/4 MP x 3/4 barb)

1шт.

12

H309054

HOSE

- (3/4 x 10.5)

1шт.

13

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose (3/4)

2шт.
