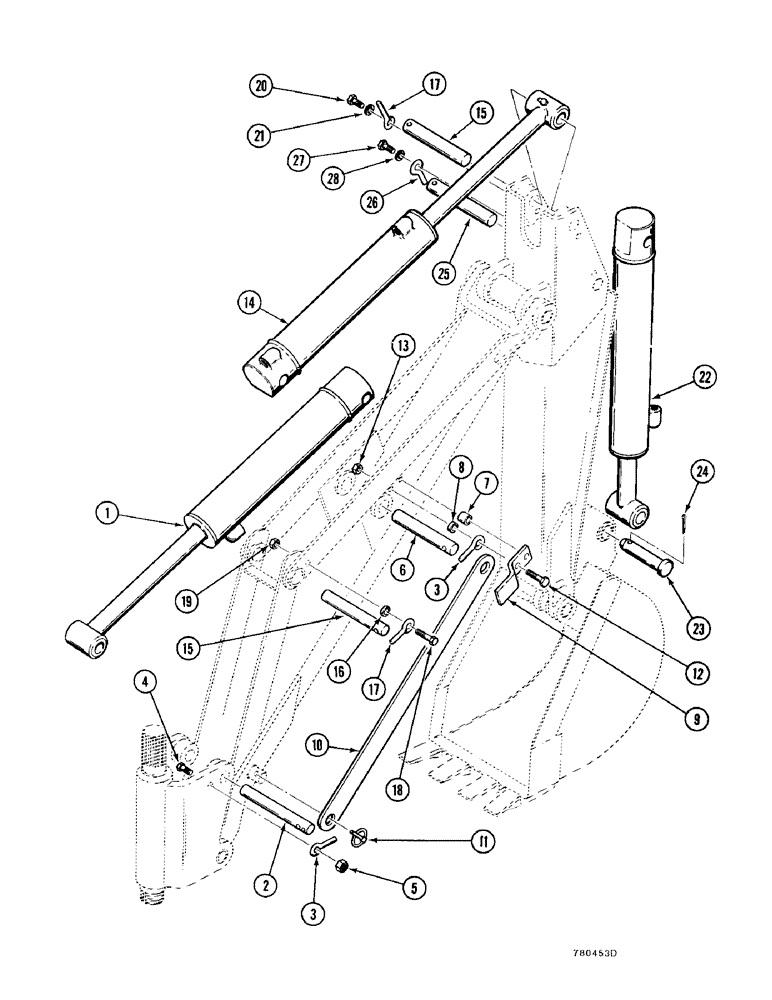

Запчасти Case FH4 (3-10) - BACKHOE BOOM, DIPPER, BUCKET CYLINDER INSTALLATION (35) - HYDRAULIC SYSTEMS

1

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

- (See figure 3-28), Includes: Refs. 2-6

1шт.

2

H56945

AXLE PIN

PIN - (1-1/8 x 8-9/16)

1шт.

3

H313981

PIN

RETAINER - pin

2шт.

4

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

5

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC hex C/L (3/8)

1шт.

6

H50690

AXLE PIN,28.57mm OD x 171.45mm L

PIN - (1-1/8 x 6-3/4)

1шт.

7

NSS

NOT SOLD SEPARAT

SPACER

1шт.

8

H53793

SPACER

1шт.

H905380

KIT

- transport link, Includes: Refs. 9-13

1шт.

9

H60616

AXLE PIN

CLIP

1шт.

10

H56952

DRAG LINK

LINK - transport

1шт.

11

A30338

PIN

- klik

1шт.

12

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

13

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC hex C/L (3/8)

2шт.

14

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

- dipperstick (See figure 3-28)

1шт.

Used on D-100

1шт.

14

G100391

CYLINDER - dipperstick (See figure 3-28), Includes: Refs. 15-21

1шт.

Used on D-100XR

1шт.

15

H50690

AXLE PIN,28.57mm OD x 171.45mm L

PIN - (1-1/8 x 6-3/4)

2шт.

16

H53793

SPACER

1шт.

17

H313981

PIN

RETAINER - pin

2шт.

18

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

19

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC hex (3/8)

1шт.

20

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

22

G100936

CYLINDER,Double Acting, 38.1mm Rod, 371.35mm Stroke

- bucket, Includes: Refs. 23-28

1шт.

23

H257048

PIN,28.5mm OD x 146.05mm L

- clevis (1-1/8 x 5-1/4)

1шт.

24

132-307

COTTER PIN,1/4" x 1 3/4"

PIN, Split (Cotter), 1/4" x 1 3/4"

1шт.

25

H50690

AXLE PIN,28.57mm OD x 171.45mm L

PIN - (1-1/8 x 6-3/4)

1шт.

26

H313981

PIN

RETAINER - pin

1шт.

27

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.
