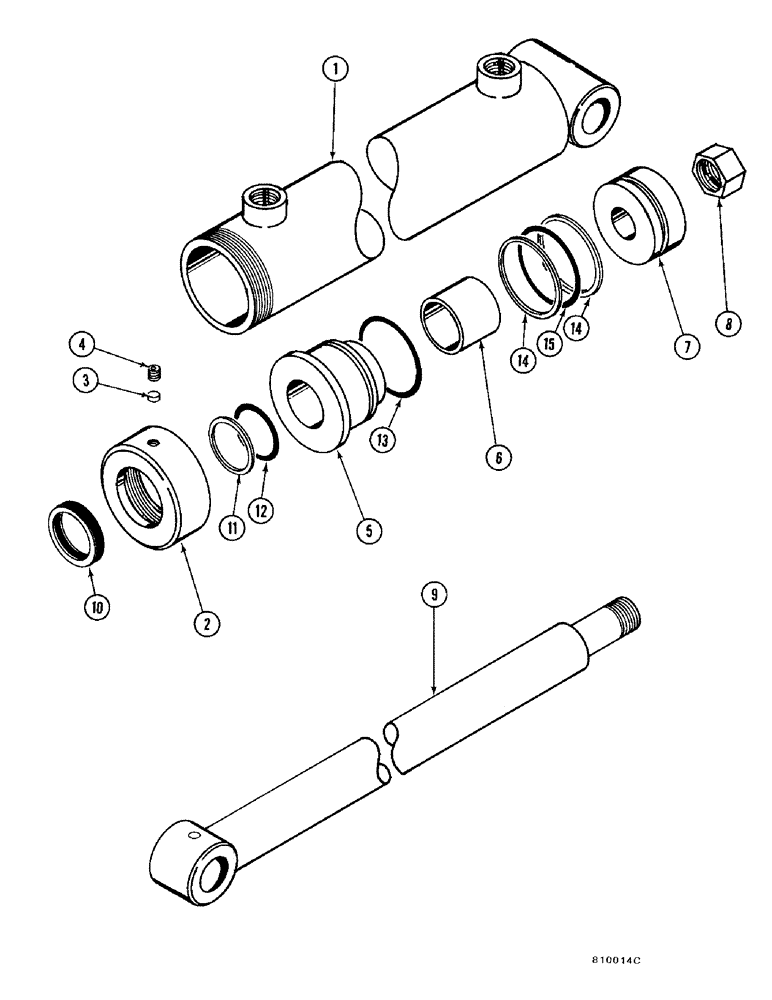

Запчасти Case FH4 (2-16) - LIFT & BUCKET CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

H662734

CYLINDER

LIFT & BUCKET CYLINDER ASSEMBLY, Includes: Refs. 1-9

4шт.

1

H662742

TUBE ASSY.,29.94" L

BARREL ASSEMBLY

1шт.

2

T50089

CAP

HEADCAP

1шт.

3

T55068

PLUG

- nylon

1шт.

4

83-44

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set

1шт.

5

T50088

HEAD

1шт.

6

T55637

SPACER

1шт.

7

B17273

PISTON

1шт.

8

131-909

LOCK NUT,3/4"-16

NUT - piston rod

1шт.

9

H662759

PISTON ROD

ASSEMBLY

1шт.

T51876

BRACKET

KIT - seal repair, Includes: Refs. 10-15

1шт.

Under item 9, seal kit t51876 should be t51786.

1шт.

10

NSS

NOT SOLD SEPARAT

WIPER - rod

1шт.

11

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING

1шт.

14

NSS

NOT SOLD SEPARAT

WASHER - backup, Includes: Ref. 15

2шт.

15

NSS

NOT SOLD SEPARAT

O-RING

1шт.
