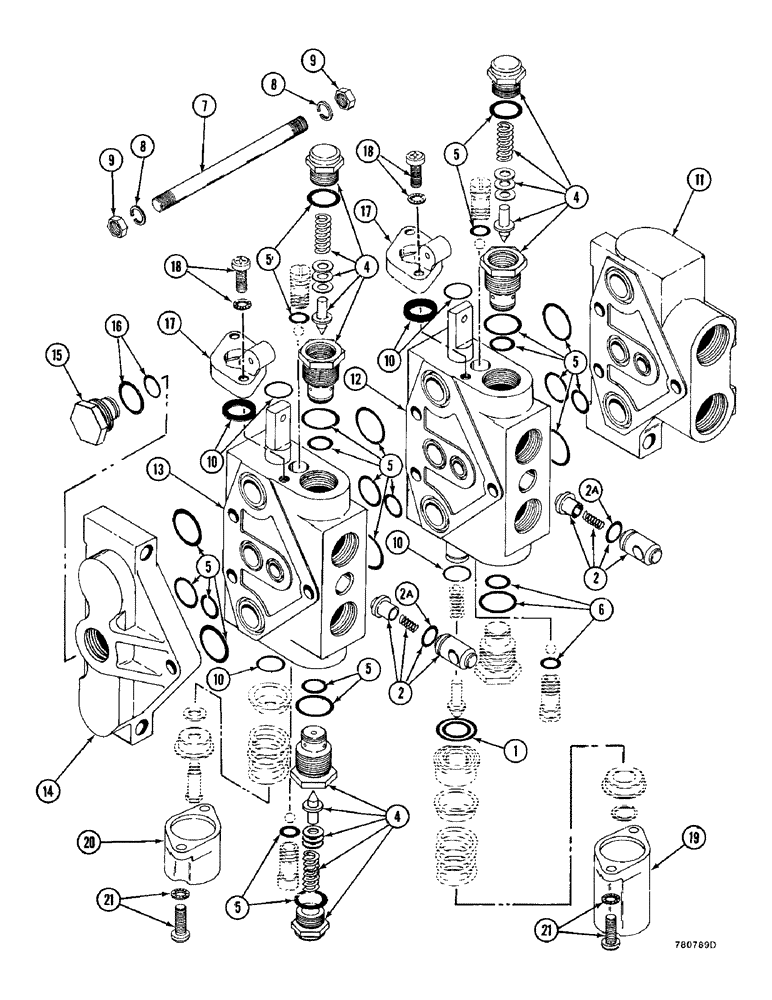

Запчасти Case FH4 (2-14) - LOADER CONTROL VALVE ASSEMBLY (35) - HYDRAULIC SYSTEMS

H660290

VALVE

ASSEMBLY- loader control, Includes: Refs. 1-21

1шт.

1

H644856

KIT

- valve section float set

1шт.

2

H644880

CHECK VALVE

KIT - load check valve, Includes: Ref. 3

1шт.

3

H655969

KIT

- load check valve seal

1шт.

4

H649301

CARTRIDGE

KIT - relief valve cartridge, Includes: Ref. 5

3шт.

5

H644914

KIT

- relief valve seal

1шт.

6

H644898

KIT

- plug seal

1шт.

H644906

TIE-ROD

KIT - tie bolt, Includes: Refs. 7-9

1шт.

7

NSS

NOT SOLD SEPARAT

STUD

3шт.

8

80682

LOCK WASHER,1/4"

Washer, Lock, 1/4"

6шт.

9

25-114

NUT,1/4"-28, G5

- NF hex (3/8)

6шт.

10

H644849

SEAL

KIT - valve section spool seal

2шт.

11

H649152

COVER

SECTION ASSEMBLY - inlet

1шт.

12

H649178

KNIFE SECTION

SECTION ASSEMBLY - float

1шт.

13

H649319

KNIFE SECTION

SECTION ASSEMBLY - standard

1шт.

14

H398792

SECTION ASSEMBLY - outlet

1шт.

H653121

ADAPTER

PLUG ASSEMBLY - power beyond, Includes: Refs. 15-16

1шт.

15

NSS

NOT SOLD SEPARAT

PLUG

1шт.

16

H655761

KIT

- power beyond seal

1шт.

H655894

RETAINER

KIT - retainer, Includes: Refs. 17, 18

2шт.

17

H417568

RETAINER

1шт.

18

H400648

SCREW

2шт.

19

H411678

CAP

HOUSING - long

1шт.

20

H401182

CAP

HOUSING - short, Includes: Ref. 21

1шт.

21

H400648

SCREW

ASSEMBLY

4шт.
