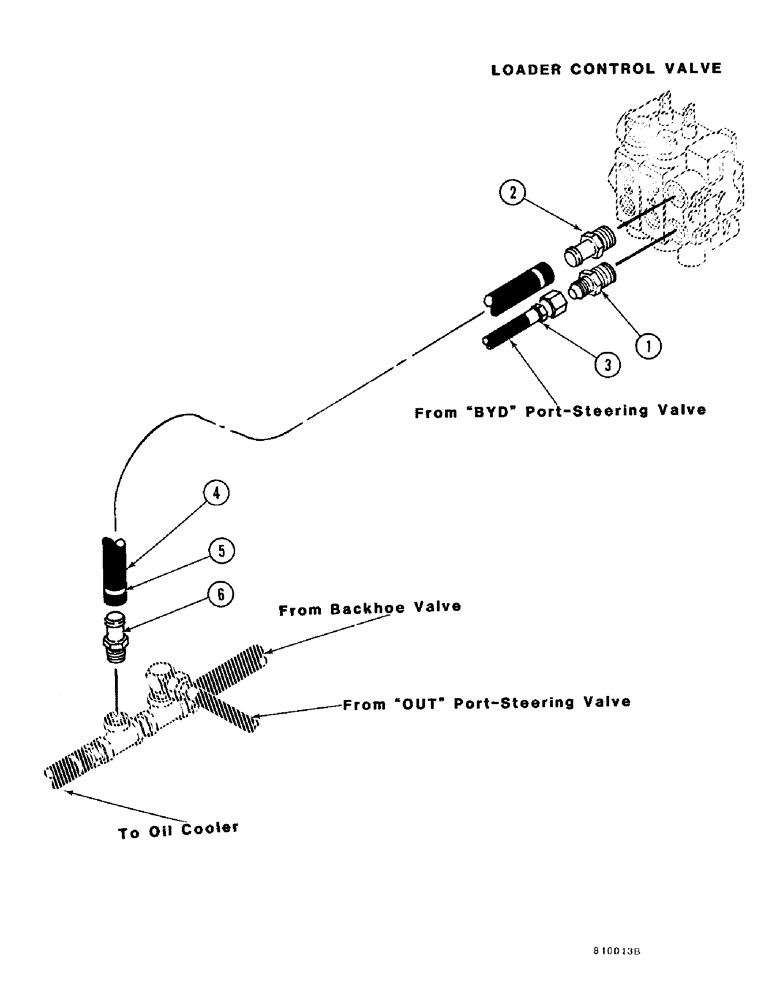

Запчасти Case FH4 (2-08) - LOADER SUPPLY & RETURN HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - (1-1/16 ORB x 3/4 JIC M)

1шт.

2

217-177

FITTING,3/4" Hose Barb x 1-1/16" - 12 Male ORB

CONNECTOR - (1-1/16 ORB x 3/4 barb)

1шт.

3

H354837

HOSE,0.38" ID x 58.00", SAE 100R1A

1шт.

4

H309088

HOSE

- 3/4 x 35

1шт.

5

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose

2шт.

6

217-155

FITTING,3/4" Hose Barb x 3/4" Male NPTF

CONNECTOR - (3/4 MP x 3/4 barb)

1шт.
