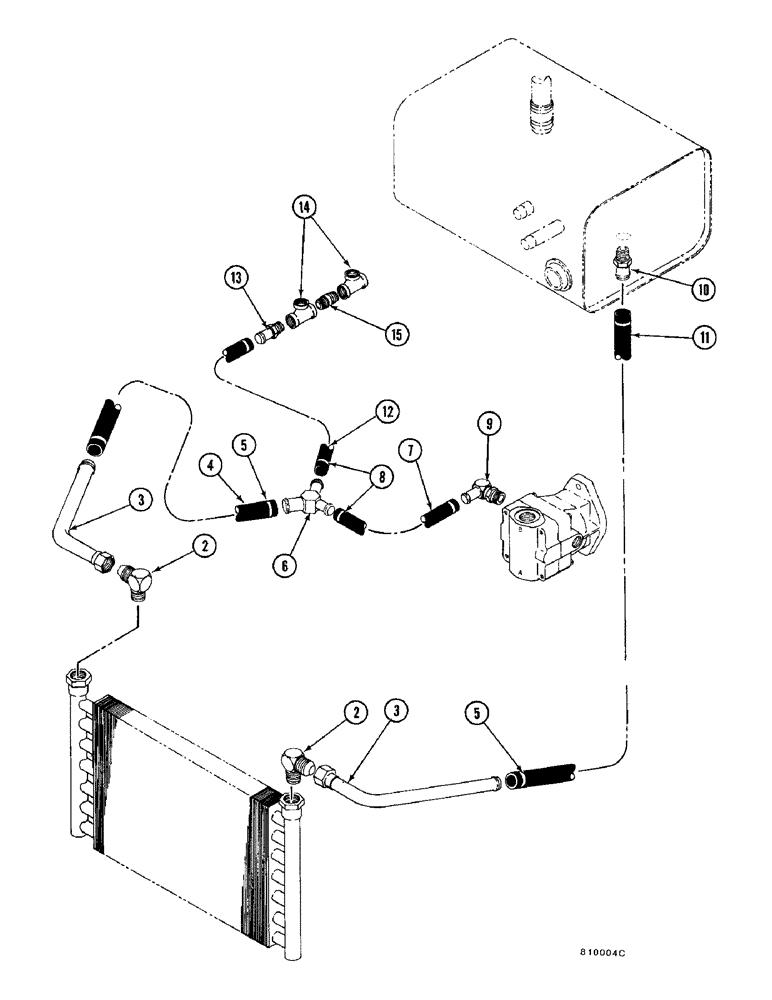

Запчасти Case FH4 (1-48) - OIL COOLER HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

2

218-496

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degrees (3/4 MP x 1-5/8 JIC M)

2шт.

3

H642165

TUBE ASSY.,25.4 mm OD x 200, 90 mm L

TUBE - oil cooler

2шт.

4

L45541

HOSE

- 1 x 36

1шт.

5

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1)

4шт.

6

H339747

FITTING

- Y (3/4 barb x 3/4 barb x 1 barb)

1шт.

7

H309054

HOSE

- 3/4 x 10.5

1шт.

8

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose (3/4)

4шт.

9

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW - 90 degrees (1-1/16 ORB x 3/4 barb)

1шт.

10

217-156

FITTING,1" Hose Barb x 1" Male NPTF

CONNECTOR - (1 MP x 1 barb)

1шт.

11

H167601

HOSE

- 1 x 46

1шт.

12

H307769

HOSE ASSY.

HOSE - 3/4 x 42

1шт.

13

217-155

FITTING,3/4" Hose Barb x 3/4" Male NPTF

CONNECTOR

1шт.

14

221-425

FITTING,3/4" NPT

TEE - pipe (3/4)

2шт.

15

221-211

PIPE,Nipple, 3/4" NPT x 1 3/8"

NIPPLE - pipe (3/4 all thd)

1шт.
