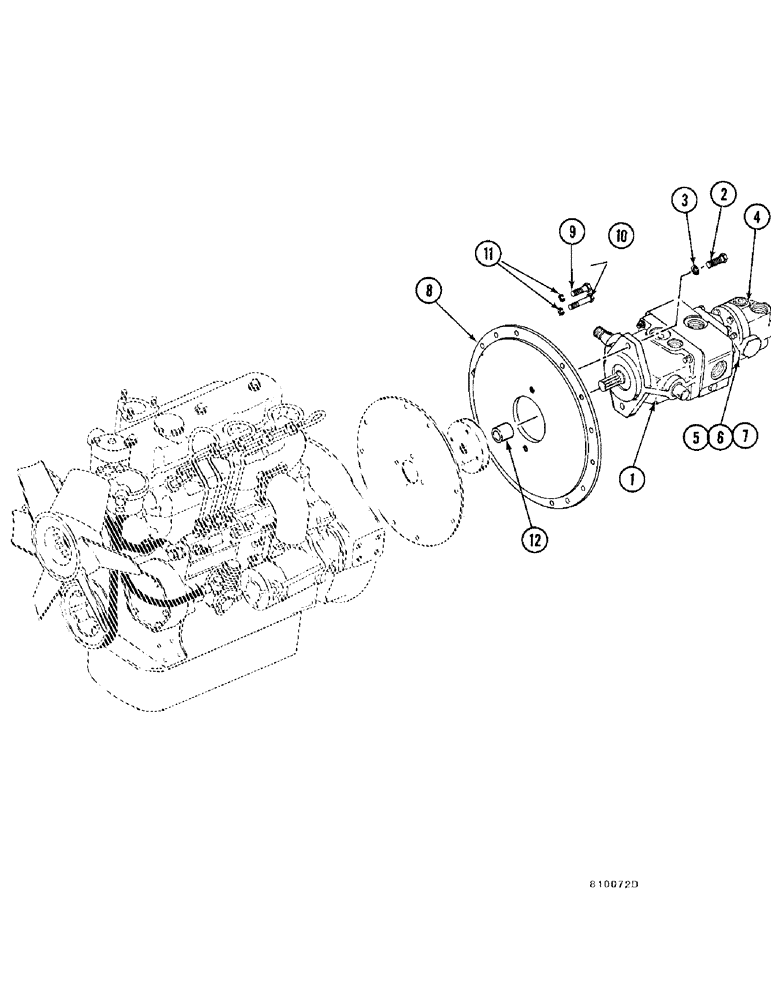

Запчасти Case FH4 (1-15A) - HYDRAULIC PUMP INSTALLATION - 2.1 LITRE DIESEL ENGINE (35) - HYDRAULIC SYSTEMS

1

H660399

PUMP

PROPULSION PUMP ASSEMBLY - (See figure 1-60), Includes: Refs. 2, 3

1шт.

2

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

3

195-533

WASHER,1/2", SAE

- lock (1/2)

2шт.

4

H626895

PUMP

STEERING PUMP ASSEMBLY - (See figure 1-62), Includes: Refs. 5-7

1шт.

5

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

195-525

WASHER,3/8", SAE

2шт.

8

H408872

MOUNTING PLATE

PLATE - pump mounting, Includes: Refs. 9-11

1шт.

9

513-705

BOLT

- HH (M10 x 25)

11шт.

10

513-707

BOLT

- HH (M10 x 35)

4шт.

11

892-1110

LOCK WASHER,M10

15шт.

12

H401901

SPACER

- flex plate

1шт.
