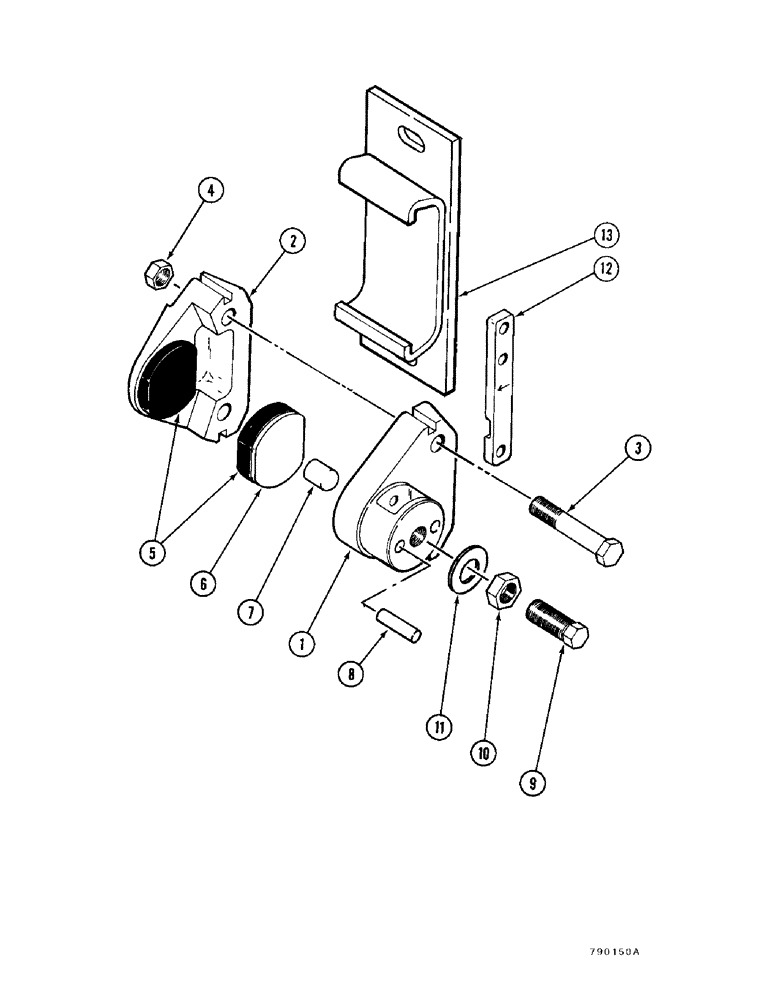

Запчасти Case FH4 (1-52) - BRAKE CALIPER ASSEMBLY (33) - BRAKES & CONTROLS

H638841

SET

CALIPER ASSEMBLY - parking brake, Includes: Refs. 1-12

1шт.

1

H378497

HOUSING

1шт.

2

H378455

ANVIL

1шт.

3

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

4

131-1306

JAM NUT,Jam, 3/8"-16

NUT - NC hex C/L (3/8)

2шт.

5

H378463

LINING

- brake

2шт.

6

H378471

PLATE ASSY.

PLATE - backing

1шт.

7

H378489

PIN

- actuator

1шт.

8

H378505

PULLEY

PIN - groove

2шт.

9

H378513

PIN

- adjuster

1шт.

10

129-164

JAM NUT,Hex, 7/16" - 20, Gr 5

Jam, 7/16"- 20, G5

1шт.

11

H378539

WASHER

1шт.

12

H378521

LEVER

1шт.

13

H641506

CALIPER

BRACKET

1шт.
