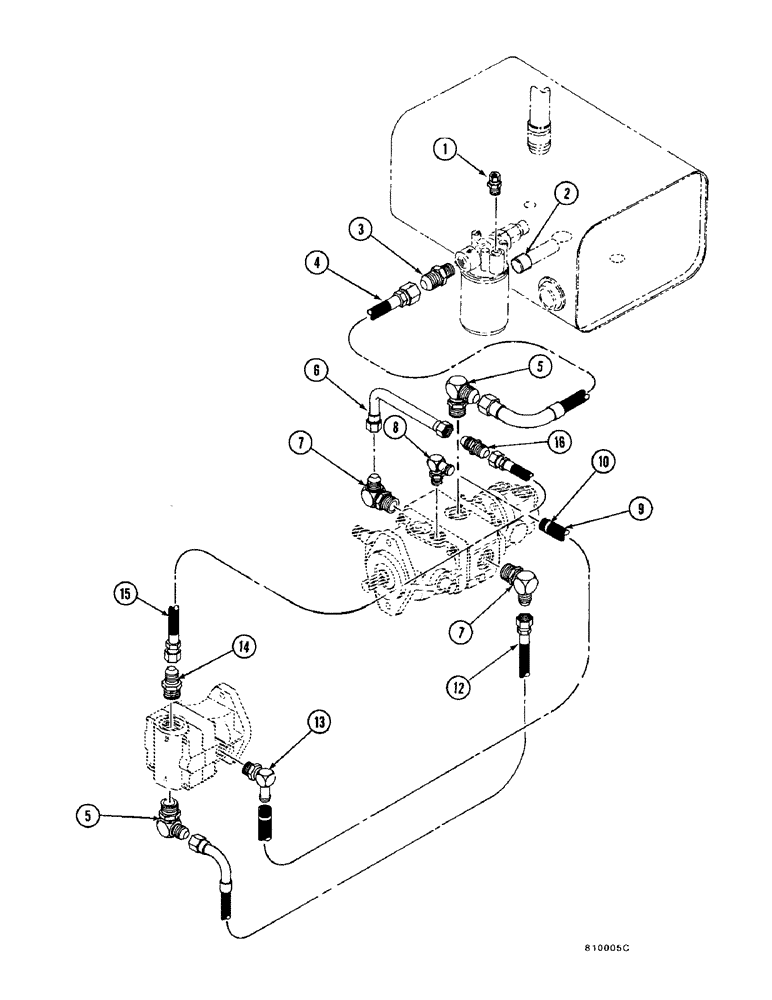

Запчасти Case FH4 (1-46) - PROPULSION HYDRAULIC SYSTEM (29) - HYDROSTATIC DRIVE

1

218-5096

ADAPTER

CONNECTOR - (3/4 ORB x 1/8 NPT Fe)

1шт.

2

221-526

CAP

- pipe (3/4)

1шт.

3

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., (1-5/16 JIC M x 1 ORB)

1шт.

4

H280677

HOSE

& TUBE - 1 x 33 (1-5/16 JIC Fe Swv)

1шт.

5

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º (1-5/16 ORB x 1-5/16 JIC M)

1шт.

6

H598011

TUBE,0.75" OD x 7.375, 3.25" L

1шт.

7

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degrees (1-5/16 ORB x 1-1/16 JIC M)

3шт.

8

217-364

FITTING,90 Degree Elbow, 3/4" Hose Barb x 3/4" - 16 Male ORB

ELBOW - 90 degrees (3/4 ORB x 3/4 barb)

1шт.

9

H212951

HOSE

- 3/4 x 24

1шт.

10

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose (3/4)

2шт.

12

H377762

HOSE

& TUBE - 3/4 x 550 MM (1-1/16 JIC Fe Swv)

1шт.

13

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW - 90 degrees (1-1/16 ORB x 3/4 barb)

1шт.

14

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - (1-5/16 ORB x 1-1/16 JIC M)

1шт.

15

H377754

HOSE,0.75" ID x 23.62", SAE 100R2, SAE 100R3

1шт.

16

218-737

UNION,1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

CONNECTOR - (1-1/16 JIC M)

1шт.
