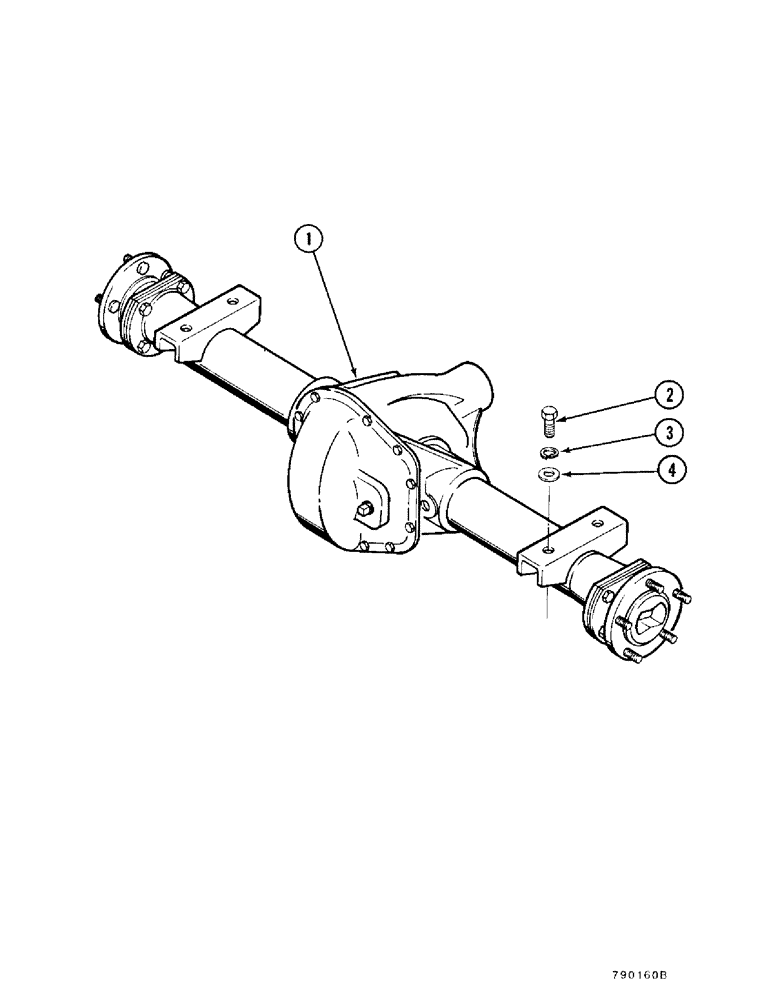

Запчасти Case FH4 (1-08) - AXLE INSTALLATION (23) - FOUR WHEEL DRIVE SYSTEM

1

H650705

AXLE, REAR

AXLE ASSEMBLY - front (See figure 1-58)

1шт.

1

H650689

AXLE

ASSEMBLY - rear, Includes: Refs. 2-4

1шт.

2

114-700

BOLT,Hex, 3/4" - 16 x 1-1/2", Gr 5, Full Thd

- NF HH (3/4 x 1-1/2)

8шт.

3

195-545

WASHER,3/4", SAE

- lock (3/4)

8шт.

4

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- heat treated flat (25/32)

8шт.
