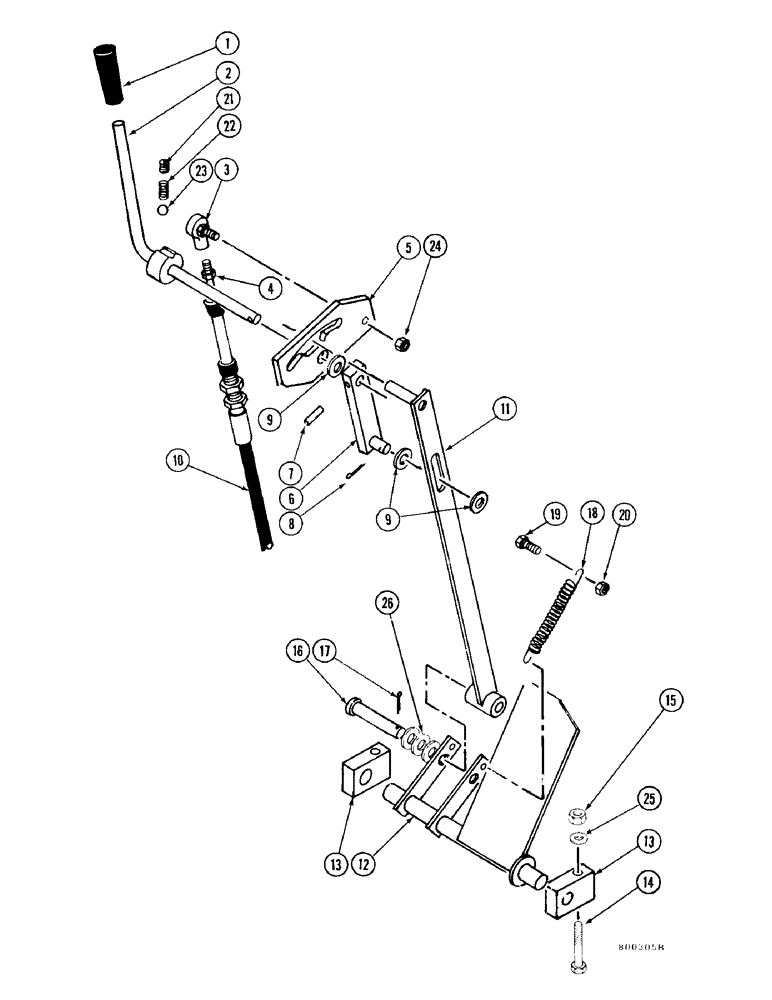

Запчасти Case FH4 (1-34) - FORWARD AND REVERSE CONTROL INSTALLATION (21) - TRANSMISSION

1

A37247

KNOB

1шт.

2

H656173

LEVER ASSY.

LEVER - switch

1шт.

3

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

JOINT - ball

1шт.

4

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

5

H404269

PLATE

- shifting

1шт.

6

H656132

LEVER

1шт.

7

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

1шт.

8

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

9

H274894

WASHER

- heat treated

3шт.

10

H590166

CABLE

- propulsion

1шт.

11

H656140

ROD ASSY.

ROD - pintle shaft control

1шт.

12

H656116

PEDAL ASSY.

PEDAL - foot

1шт.

13

H404376

BLOCK

- bearing

2шт.

14

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

15

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC hex C/L (3/8)

2шт.

16

H101741

AXLE PIN

PIN - clevis (1/2 x 2-3/4)

1шт.

17

132-68

PIN

- cotter

1шт.

18

H360313

VALVE SPRING

SPRING

1шт.

19

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- NC HH (5/16 x 1)

1шт.

20

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC hex C/L (5/16)

2шт.

21

81-912

SET SCREW,9/16"-12 x 3/4", Slotted

SCREW - headless, slotted (9/16-12 x 3/4)

1шт.

22

A51825

SPRING

1шт.

23

211-26

BALL,15/32" Dia

- (15-32 diameter)

1шт.

24

131-1169

LOCK NUT,5/16"-24, GA

NUT, LOCK, 5/16"-24, GA

1шт.

25

195-525

WASHER,3/8", SAE

2шт.

26

195-533

WASHER,1/2", SAE

- Flat (1/2)

3шт.
