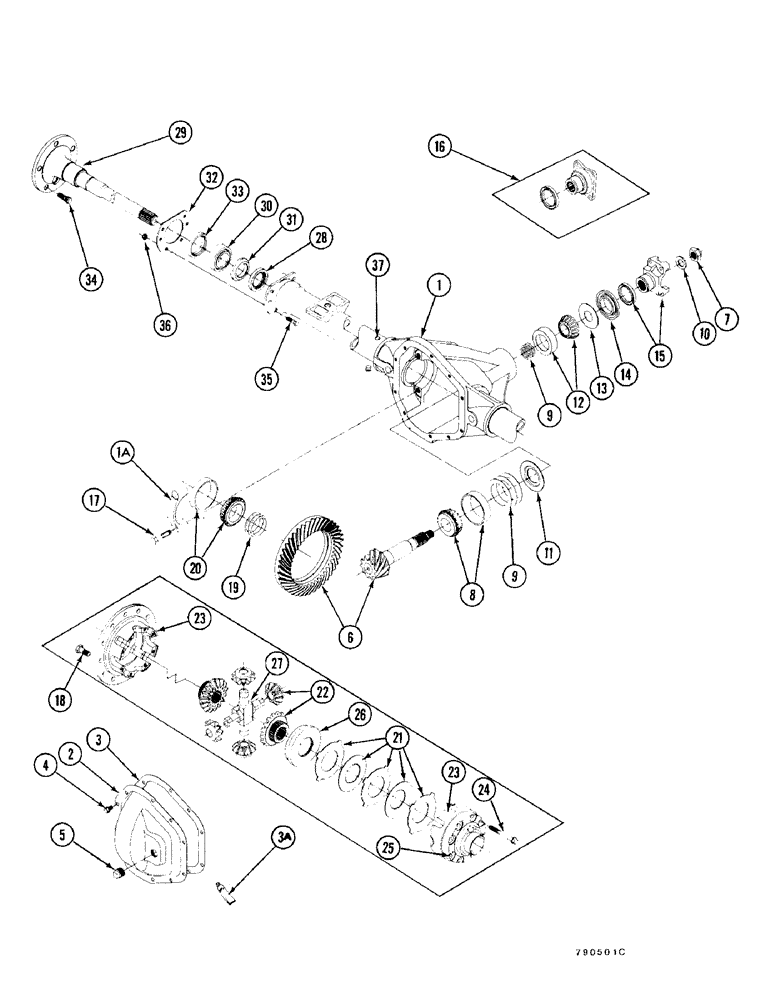

Запчасти Case FH4 (1-58) - AXLE ASSEMBLY - DANA MODEL 70 (14) - MAIN GEARBOX & DRIVE

H650689

AXLE

ASSEMBLY - front

1шт.

H650705

AXLE, REAR

AXLE ASSEMBLY - rear, Includes: Refs. 1-37

1шт.

1

H663153

HOUSING - front axle (Includes refs. 1A & 17)

1шт.

1

H663161

HOUSING

- rear axle (Includes refs. 1A & 17)

1шт.

1a

NSS

NOT SOLD SEPARAT

CAP - bearing

2шт.

H637959

KIT

- carrier cover, Includes: Refs. 2-4

1шт.

2

H224717

COVER ASSY

COVER - carrier

1шт.

3

H224725

GASKET

- cover

1шт.

Use with cover assembly with a flat sealing surface.

1шт.

3a

345-69

SEALANT

- RTV silicone

1шт.

Use with cover assembly with a rib design sealing surface.

1шт.

4

H227132

FLANGE BOLT

BOLT - carrier cover

10шт.

5

221-48

PLUG

- cover

1шт.

6

H644799

SET

PINING & GEAR ASSEMBLY, Includes: Ref. 7

1шт.

7

H224642

NUT

- pinion

1шт.

8

H637967

BEARING

KIT - bearing (inner pinion)

1шт.

9

H637983

SHIM KIT

KIT - pinion & bearing adjust sham (Includes refs. 3, 7, & 10)

1шт.

10

H224501

WASHER

- pinion nut, 7/8 inch

1шт.

11

H224592

BAFFLE

- pinion bearing oil

1шт.

12

H630434

BEARING

KIT - bearing (outer pinion)

1шт.

13

H224535

SHIELD

SLINGER - outer pinion bearing

1шт.

14

H755157

SEAL

SEAL - oil

1шт.

15

H224519

YOKE

ASSEMBLY - end (front)

1шт.

16

H263111

FLANGE

YOKE ASSEMBLY - end (rear)

1шт.

17

H226548

SCREW

BOLT - differential bearing cap

4шт.

H637934

KIT

- differential case assembly, Includes: Refs. 18-27

1шт.

18

H136416

FLANGE BOLT,Serr, 1/2" - 20 x 1.125", Gr 8

BOLT - drive gear

12шт.

19

H638007

KIT

- differential adjust shims

1шт.

20

H637975

KIT

- differential bearing, Another Kit used (NOT A SUB) Part H630442

1шт.

H596486

CASE

DIFFERENTIAL CASE ASSEMBLY, Includes: Refs. 21-27

1шт.

21

H224675

DISC

KIT - differential disc and pinion

1шт.

22

H604132

GEAR WHEEL

KIT - differential gear and pinion

1шт.

23

H596494

CARRIER

SUB ASSEMBLY - differential case, Includes: Refs. 24, 25

1шт.

24

H275172

BOLT

- differential case

8шт.

25

H257164

ADAPTER - stud

8шт.

26

H224683

RING

- differential

2шт.

27

H224709

AXLE PIN

SHAFT - differential

2шт.

H650374

AXLE SHAFT

KIT - axle shaft, Includes: Refs. 28-34

2шт.

28

H263087

SEAL

- oil

1шт.

Included in H650390 Unit Bearing and Seal Kit; 2 kits required per axle assembly.

1шт.

29

H650382

SHAFT ASSY.

SHAFT ASSEMBLY - axle, Includes: Refs. 30-33

1шт.

30

H263152

WHEEL BEARING KIT

BEARING ASSEMBLY

1шт.

Included in H650390 Unit Bearing and Seal Kit; 2 kits required per axle assembly.

1шт.

31

H263160

OIL SEAL

RETAINER RING - wheel bearing

1шт.

Included in H650390 Unit Bearing and Seal Kit; 2 kits required per axle assembly.

1шт.

32

H263137

RETAINER

- oil seal

1шт.

Included in H650390 Unit Bearing and Seal Kit; 2 kits required per axle assembly.

1шт.

33

H263145

SEAL ASSY.

SEAL - oil

1шт.

Included in H650390 Unit Bearing and Seal Kit; 2 kits required per axle assembly.

1шт.

34

H171090

WHEEL BOLT

STUD - wheel

5шт.

35

H263103

BOLT

BOLT

12шт.

36

H197780

LOCK NUT

NUT - lock

12шт.

37

H393199

VENT

1шт.
