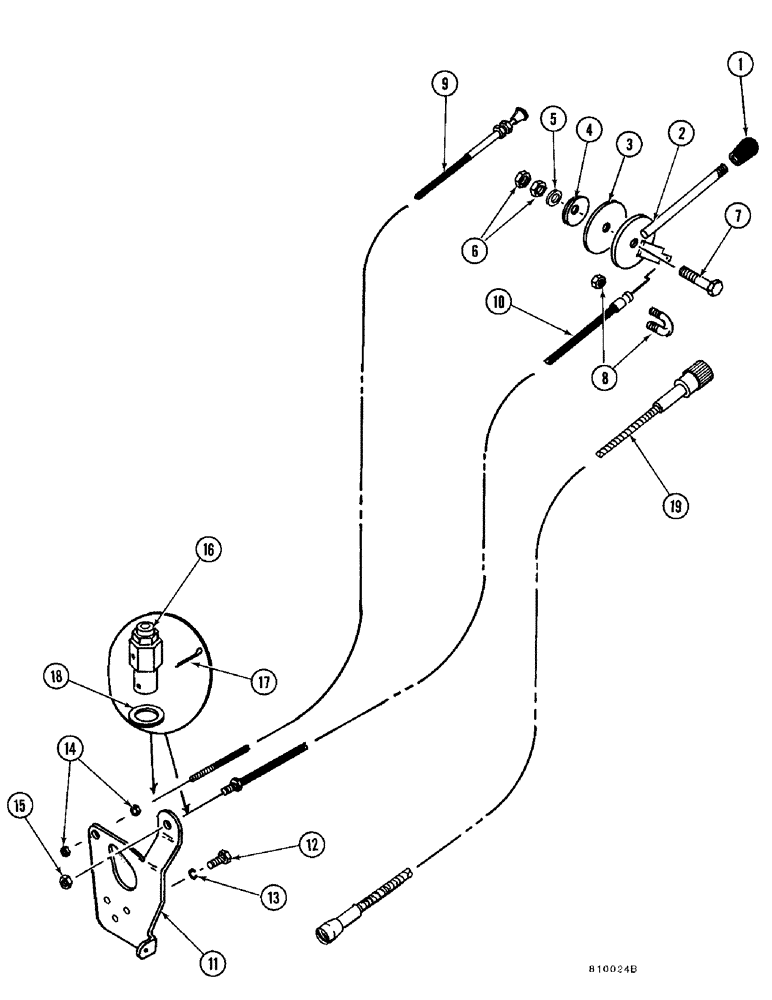

Запчасти Case FH4 (1-29A) - ENGINE CONTROL INSTALLATION - 2.1 LITRE DIESEL ENGINE (10) - ENGINE

1

A14051

GRIP

KNOB - throttle

1шт.

2

H643692

HANDLE

- throttle

1шт.

3

R15071

DISC

- friction

1шт.

4

R14771

WASHER

- cupped

1шт.

5

195-525

WASHER,3/8", SAE

1шт.

6

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC hex (3/8 - jam)

2шт.

7

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

8

H381269

U-BOLT

- with nuts

1шт.

9

H374934

CABLE

- motor stop

1шт.

10

H383422

CABLE

- throttle

1шт.

11

H405183

BRACKET

- throttle

1шт.

12

513-403

BOLT - HH (M6 x 14)

3шт.

13

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

14

H243782

NUT

- conduit (3/16)

2шт.

15

H99101

NUT

- conduit (1/4)

1шт.

16

H564047

CONTROL

STOP - wire

2шт.

17

132-239

PIN - cotter (1/16 x 3/4)

2шт.

18

195-518

WASHER,1/4", SAE

- flat (1/4)

2шт.

19

H413591

CABLE PULLING GRIP

CABLE - tachometer drive

1шт.
