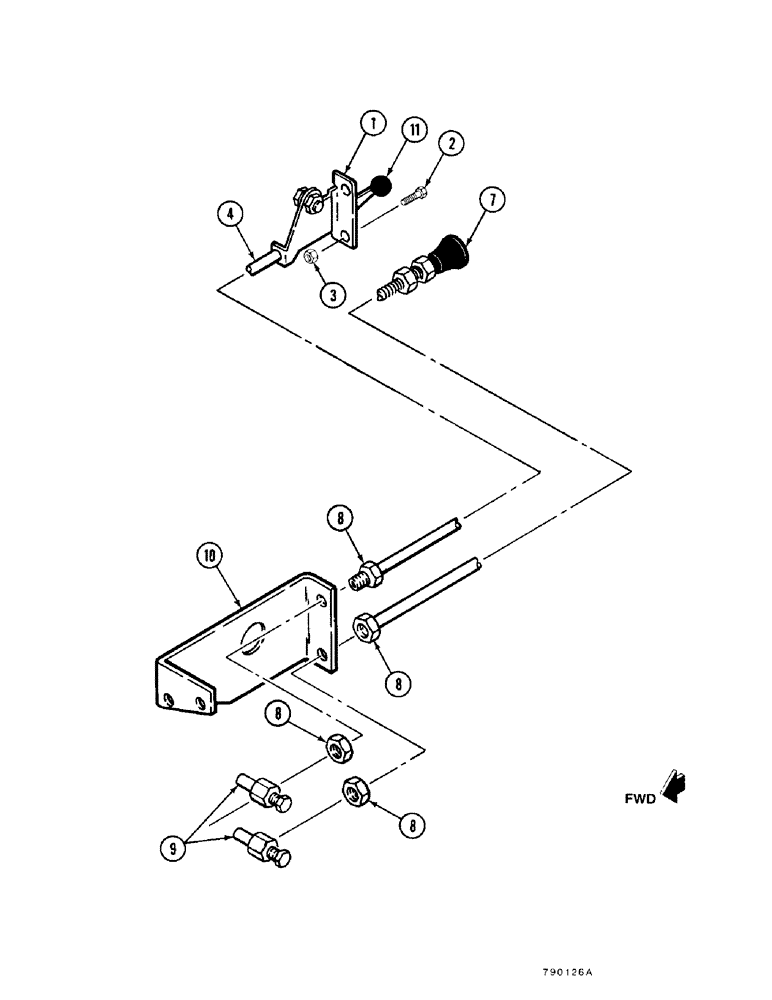

Запчасти Case FH4 (1-28) - ENGINE CONTROL INSTALLATION - 1.8 LITRE DIESEL ENGINE (10) - ENGINE

1

H581736

CONTROL BLOCK

CONTROL - throttle, Includes: Refs. 2, 3

1шт.

2

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

3

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

4

H410019

ELECTRICAL WIRE

WIRE - throttle control

1шт.

Ref. 4 New Cable, Also needs (1) H99457 Conduit Nut and (1) 131-1133 Nut.

1шт.

7

H374934

CABLE

CONTROL - engine stop, Includes: Ref. 8

1шт.

8

H243782

NUT

- conduit

4шт.

9

H43034

JOINT TURNING

SWIVEL - throttle & engine stop

2шт.

10

H383083

BRACKET - throttle & engine stop

1шт.

11

H244434

KNOB

- throttle control

1шт.
