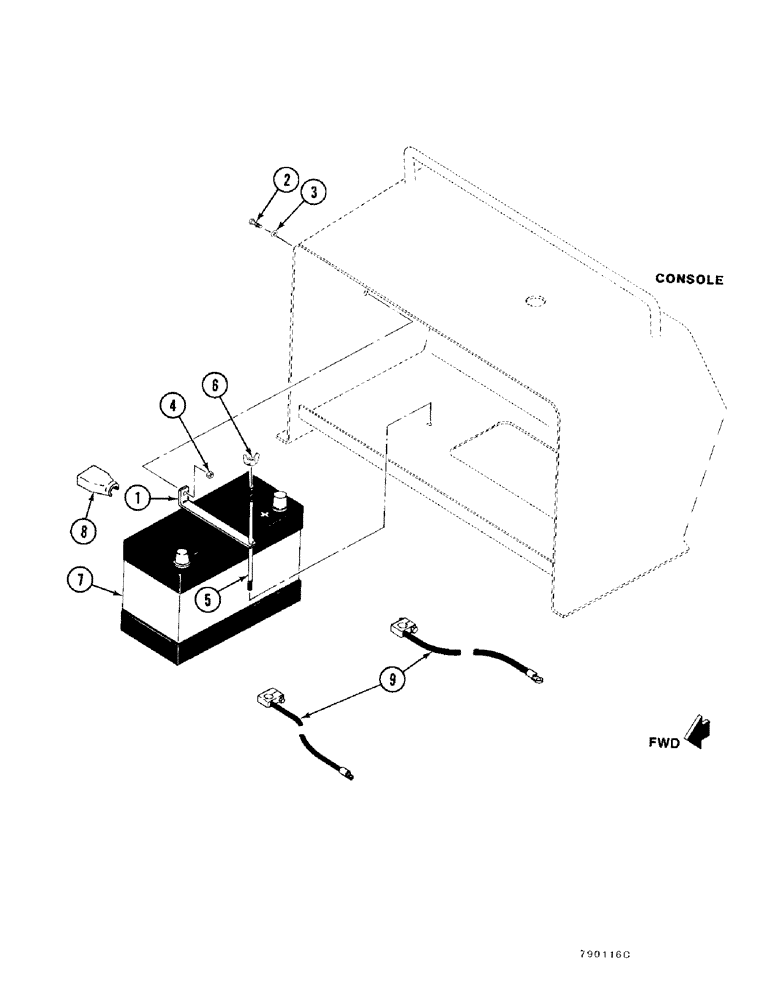

Запчасти Case FH4 (1-26) - BATTERY INSTALLATION (10) - ENGINE

1

H372698

STRAP

- battery, Includes: Refs. 2-4

1шт.

2

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

3

195-521

WASHER,5/16", SAE

- flat (5/16)

1шт.

4

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC hex C/L (5/16)

1шт.

5

H376384

BOLT

- battery hold down

1шт.

6

129-419

WING NUT,5/16"-18

NUT - wing

2шт.

7

A145205

WET BATTERY

1шт.

Used on machines with 1.8 litre diesel engine

1шт.

7

L73867

DRY BATTERY

- maintenance free

1шт.

Used on machines with 2.1 litre diesel engine.

1шт.

8

H102681

COVER ASSY

CAP - battery

1шт.

9

H172304

NEG BATTERY CABLE

CABLE - battery

2шт.

Used on machines with 1.8 litre diesel engine

1шт.

9

H107979

NEG BATTERY CABLE

CABLE - battery

2шт.

24" Cable H167726

1шт.

Cable 52" H302950

1шт.

Used on machines with 2.1 litre diesel engine.

1шт.
