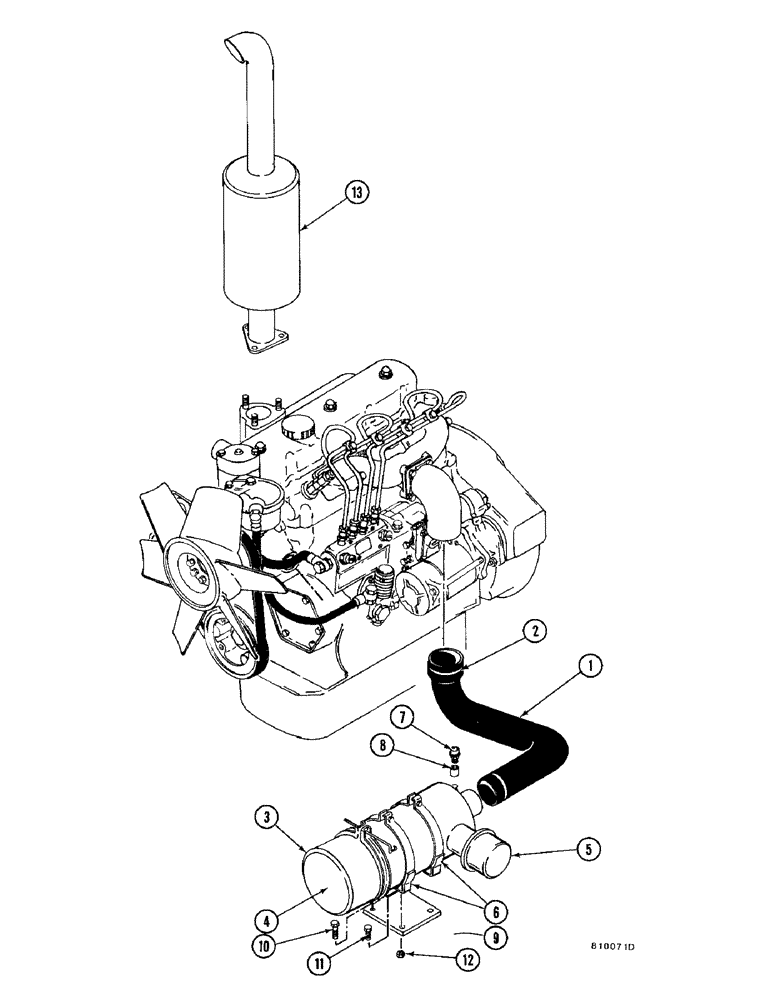

Запчасти Case FH4 (1-23A) - MUFFLER, AIR CLEANER INSTALLATION - 2.1 LITRE DIESEL ENGINE (10) - ENGINE

1

H416230

HOSE - air cleaner

1шт.

2

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

D55203

CLEANER ASSY.

AIR CLEANER ASSEMBLY, Includes: Ref. 3

1шт.

3

D48198

AIR CLEANER

ELEMENT - air cleaner

1шт.

5

D22685

CAP

DELETED

1шт.

6

R41654

COLLAR CLAMP

BAND - mounting

2шт.

7

D67721

SWITCH

INDICATOR - air cleaner

1шт.

8

221-355

BALL

COUPLING - pipe (1/8)

1шт.

9

H416529

PLATE

- mounting, Includes: Refs. 10-12

1шт.

10

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

11

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

12

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC hex C/L (5/16)

4шт.

13

H416131

MUFFLER

1шт.

Refer to air cleaner H668939 .

1шт.
