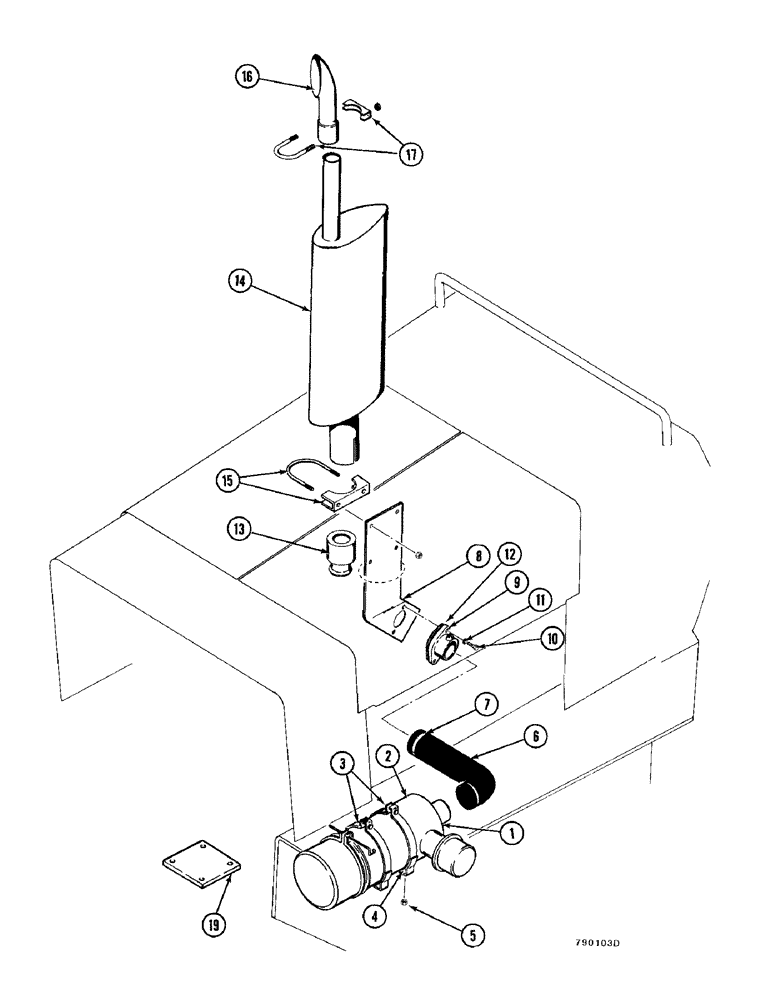

Запчасти Case FH4 (1-22) - MUFFLER, AIR CLEANER INSTALLATION - 1.8 LITRE DIESEL ENGINE (10) - ENGINE

1

D55203

CLEANER ASSY.

AIR CLEANER, Includes: Ref. 2

1шт.

Ref. 1, Another Air Cleaner (not a sub) part H668939.

1шт.

2

D48198

AIR CLEANER

ELEMENT - air cleaner

1шт.

3

R41654

COLLAR CLAMP

BAND - air cleaner mounting, Includes: Refs. 4, 5

2шт.

4

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- NC HH (3/16 x 3/4)

4шт.

5

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC hex C/L (3/16)

4шт.

6

H415372

HOSE - air cleaner, Includes: Ref. 7

1шт.

Ref. 6 can be made from H340091.

1шт.

7

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

8

H377291

BRACKET - muffler support

1шт.

9

H628081

AIR INTAKE TUBE,1.68" L

TUBE - intake, Includes: Refs. 10, 11

1шт.

10

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

12

H353334

GASKET

2шт.

13

H393512

ADAPTER

- muffler

1шт.

14

A39561

MUFFLER

Includes: Ref. 15

1шт.

15

A27115

CLAMP

- muffler

2шт.

16

A39571

PIPE, EXHAUST SYSTEM

PIPE - extension, Includes: Ref. 17

1шт.

17

G45410

CLAMP

- muffler

1шт.

18

A59569

INDICATOR

- air cleaner restriction (not shown)

1шт.

19

H416529

PLATE

- mounting

1шт.

Exhaust Clamp E36314.

1шт.

Air Cleaner Cap is Part D22685.

1шт.
