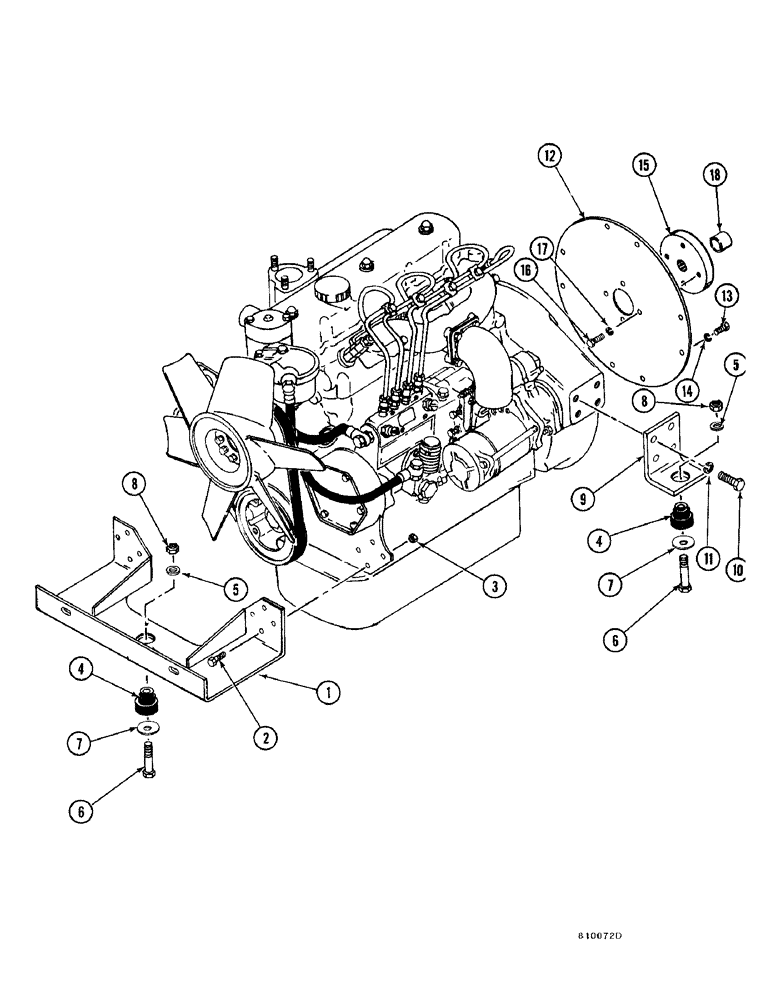

Запчасти Case FH4 (1-21A) - ENGINE INSTALLATION - 2.1 LITRE DIESEL ENGINE (10) - ENGINE

1

H661819

MOUNTING PARTS

MOUNTING - engine front

1шт.

2

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

8шт.

3

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC hex C/L (5/16)

8шт.

4

H384578

ANCHOR

MOUNT - engine

3шт.

5

195-2053

WASHER,17/32" x 1 1/2" x .083"

- flat (1/2 ID x 1-1/2 OD)

3шт.

6

113-441

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

Hex, 1/2"-13 x 2 1/4", G5

3шт.

7

195-106

WASHER,1/2"

- flat

3шт.

8

131-1182

LOCK NUT,1/2"-13, GA

NUT - NC hex (1/2)

3шт.

9

H416198

MOUNTING PARTS

MOUNTING - engine rear

2шт.

10

513-805

SCREW

BOLT - HH (M12 x 30)

8шт.

11

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

12

H408849

PLATE

- pump drive

1шт.

13

513-605

BOLT

- HH (M8 x 20)

8шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

15

H408807

HUB ASSY.

HUB - pump drive

1шт.

16

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

18

H401901

SPACER

- flex plate

1шт.

For engine info see CE 400.

1шт.
