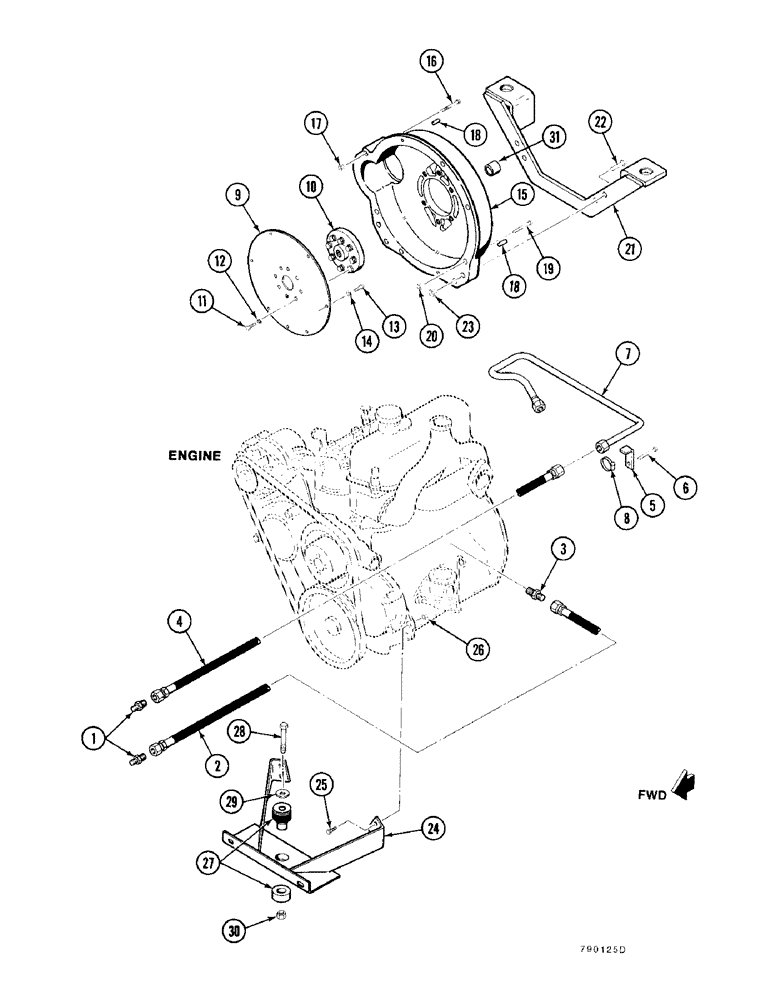

Запчасти Case FH4 (1-20) - ENGINE INSTALLATION - 1.8 LITRE DIESEL ENGINE (10) - ENGINE

1

218-1525

CONNECTOR - (1/4 MP x 7/8 JIC M)

2шт.

2

H203323

HOSE

- 1/2 x 28 (7/8 JIC Fm Swv Ends)

1шт.

3

218-1026

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

CONNECTOR - (3/8 MP x 7/8 JIC M)

1шт.

4

H211839

HOSE

- 1/2 x 27 (7/8 JIC M x 7/8 JIC Fm Swv)

1шт.

5

H376186

LUG - support, Includes: Ref. 6

1шт.

6

113-138

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

1шт.

7

H641837

TUBE - assembly, Includes: Ref. 8 15.75 mm OD

1шт.

8

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - tube

1шт.

NSS

NOT SOLD SEPARAT

PLATE ASSEMBLY - drive, Includes: Refs. 9-14

1шт.

9

H334631

PLATE

- flex

1шт.

10

H630053

HUB CAP

BLOCK - hub, Includes: Refs. 11, 12

1шт.

11

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

8шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

13

114-102

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

- NF HH (5/16 x 1)

6шт.

14

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

15

H335653

HOUSING

- flywheel, Includes: Refs. 16-20

1шт.

16

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

1шт.

17

131-52

NUT,3/8"-16, GC

NUT - NC hex C/L (3/8)

1шт.

18

H358754

PIN

- dowel (5/16 x 3/4)

2шт.

19

113-133

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

- NC HH (5/16 x 3-1/4)

5шт.

20

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC hex C/L (5/16)

5шт.

21

H640250

MOUNT - rear engine, Includes: Refs. 22, 23

1шт.

22

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

23

131-70

NUT,1/2"-13, GB

NUT - NC hex C/L (1/2)

4шт.

24

H640375

MOUNT - engine front, Includes: Refs. 25, 26

1шт.

25

113-268

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

- NC HH (3/8 x 1)

4шт.

26

131-1216

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

4шт.

27

H340562

MOUNTING PARTS

MOUNT - engine, Includes: Refs. 28-30

3шт.

28

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

3шт.

29

H165720

WASHER

- special (1/2)

3шт.

30

131-1182

LOCK NUT,1/2"-13, GA

NUT - NC hex C/L (1/2)

3шт.

31

H401901

SPACER

- flex plate

1шт.

Fan Belt is part H429357.

1шт.

For engine info see CE 400.

1шт.
