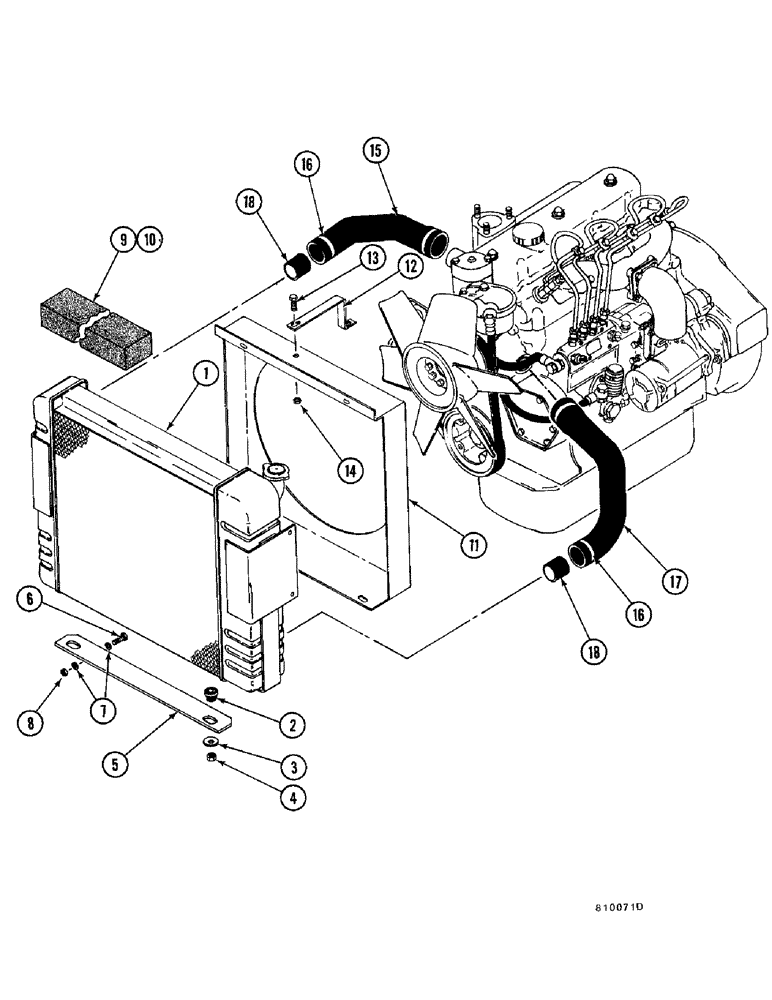

Запчасти Case FH4 (1-19A) - RADIATOR INSTALLATION - 2.1 LITRE DIESEL ENGINE (10) - ENGINE

1

H634618

RADIATOR

1шт.

2

H340588

BUSHING

MOUNT - rubber

2шт.

3

H182691

RETAINER

WASHER - mount

2шт.

4

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC hex C/L (3/8)

2шт.

5

H373415

SUPPORT

- radiator

1шт.

6

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

7

195-521

WASHER,5/16", SAE

- flat (5/16)

4шт.

8

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC hex C/L (5/16)

2шт.

9

H395376

FOAM

- radiator, side & bottom (1700 MM long)

1шт.

10

H395368

FOAM

- radiator, top (760 MM long)

1шт.

11

H416255

SHROUD

- radiator

1шт.

12

H409300

BRACKET

- support (top)

1шт.

13

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

14

131-52

NUT,3/8"-16, GC

NU1 - NC hex C/L (3/8)

1шт.

15

H409912

RADIATOR HOSE,33.00 mm ID, 42.00 mm ID x 82.00 mm, SAE 20R4

Upper 33.00 mm ID, 42.00 mm ID x 82.00 mm, SAE 20R4

1шт.

16

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

4шт.

17

H409920

RADIATOR HOSE,33.00 mm ID, 42.00 mm ID x 120.00 mm, SAE 20R4

Lower 33.00 mm ID, 42.00 mm ID x 120.00 mm, SAE 20R4

1шт.

18

H407353

BUSHING

- hose

2шт.
