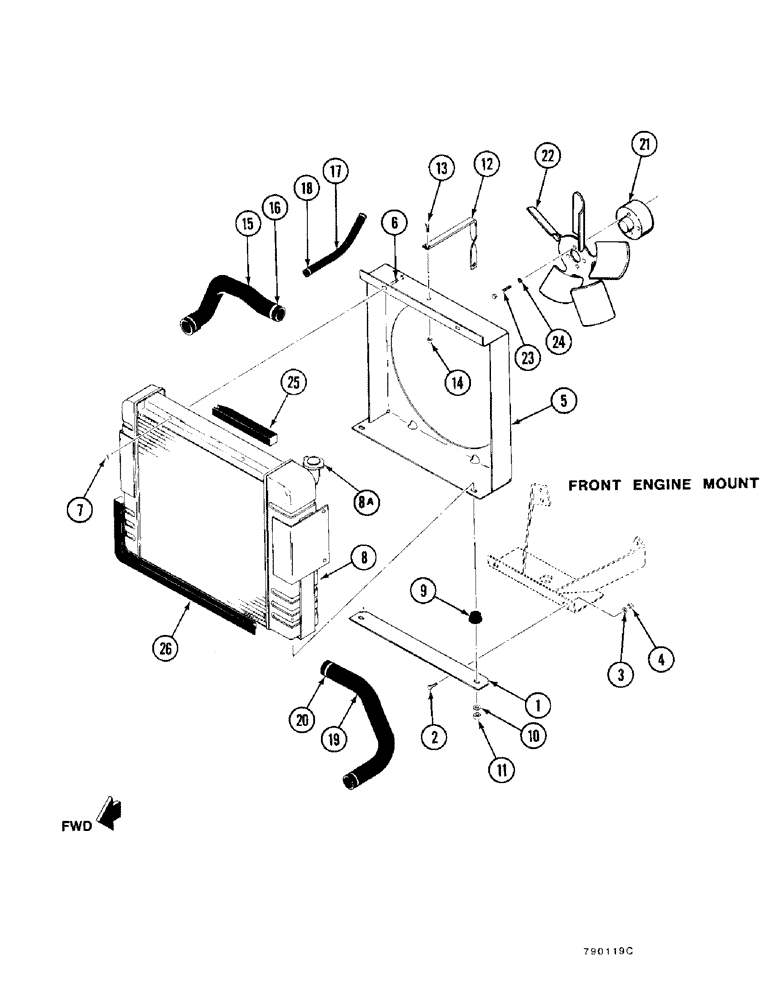

Запчасти Case FH4 (1-18) - RADIATOR INSTALLATION - 1.8 LITRE DIESEL ENGINE (10) - ENGINE

1

H373415

SUPPORT

- radiator, Includes: Refs. 2-4

1шт.

2

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

3

195-521

WASHER,5/16", SAE

- flat (5/16)

2шт.

4

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC hex C/L (5/16)

2шт.

5

H373506

SHROUD, Includes: Refs. 6, 7

1шт.

6

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

2шт.

7

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

8

H634618

RADIATOR

1шт.

8a

F23120

CAP

- radiator

1шт.

9

H340588

BUSHING

- radiator support, Includes: Refs. 10, 11

2шт.

10

H182691

RETAINER

WASHER - flat (3/8)

2шт.

11

113-1181

NUT - NC hex C/L (3/8)

2шт.

12

H336230

BRACKET - radiator support, Includes: Refs. 13, 14

1шт.

13

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

14

131-52

NUT,3/8"-16, GC

NUT - NC hex C/L (3/8)

1шт.

15

H347807

RADIATOR HOSE,1.12" ID, 1.25" ID x 8.3", SAE 20R4

Upper Includes: Refs. 16 1.12" ID, 1.25" ID x 8.3", SAE 20R4

1шт.

16

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

17

A19491

HOSE - (5/16 x 15), Includes: Refs. 18

1шт.

18

214-251

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP - hose

2шт.

19

H347815

RADIATOR HOSE,1.25" ID x 8.30", SAE 20R4

Lower 1.25" ID x 8.30", SAE 20R4

1шт.

20

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

21

H377309

SPACER

- fan

1шт.

22

H406777

FAN

Includes: Refs. 23, 24

1шт.

23

114-20

BOLT,Hex, 1/4" - 28 x 2-3/4", Gr 5

- NF HH (1/4 x 2-3/4)

4шт.

24

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

25

H395368

FOAM

- radiator top

1шт.

26

H395376

FOAM

- radiator side and bottom

1шт.
