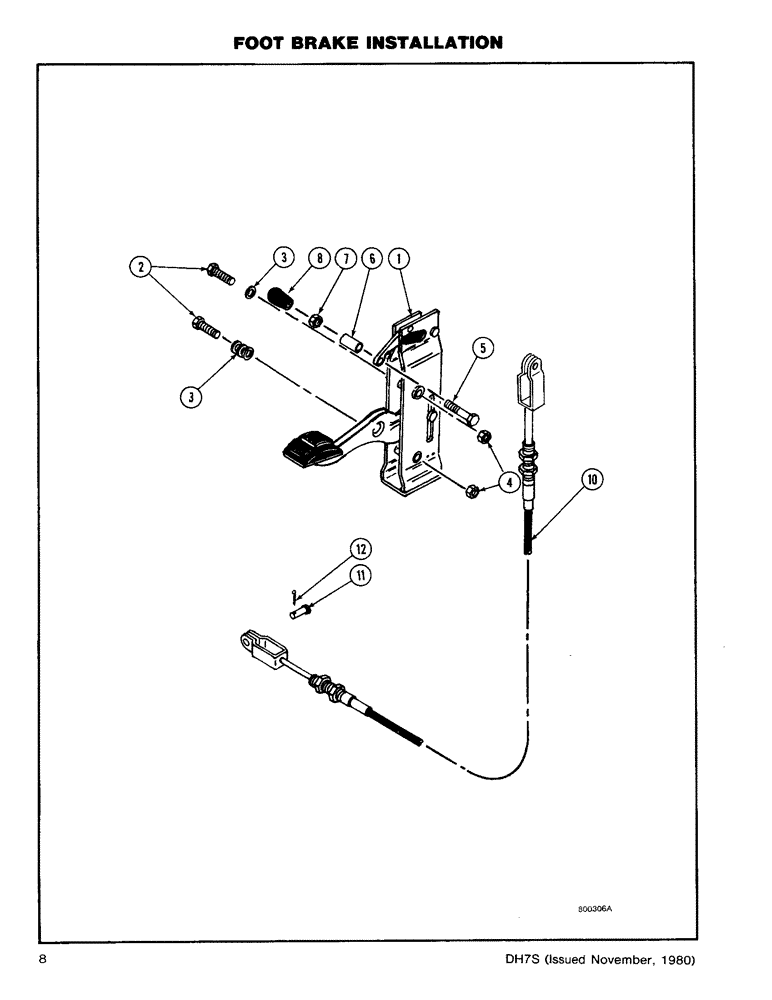

Запчасти Case DH7 (08) - FOOT BRAKE INSTALLATION, FOOT BRAKE INSTALLATION (33) - BRAKES & CONTROLS

1

H656215

LEVER ASSY.

LEVER - Foot Brake

1шт.

2

113-120

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- NC HH (5/16 x 1 1/4)

2шт.

3

195-521

WASHER,5/16", SAE

- Flat (5/16)

3шт.

4

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex C/L (5/16)

2шт.

5

113-132

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- NC HH (1/4 x 1 3/4)

1шт.

6

H404723

SPACER

1шт.

7

86637933

JAM NUT,5/16" - 24, Gr 5

- NC Hex Jam (1/4)

1шт.

8

F64341

KNOB

1шт.

10

H635417

CABLE PULLING GRIP

CABLE - Brake

1шт.

11

D23693

AXLE PIN

PIN - Clevis (1/4 x 1)

1шт.

12

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.
