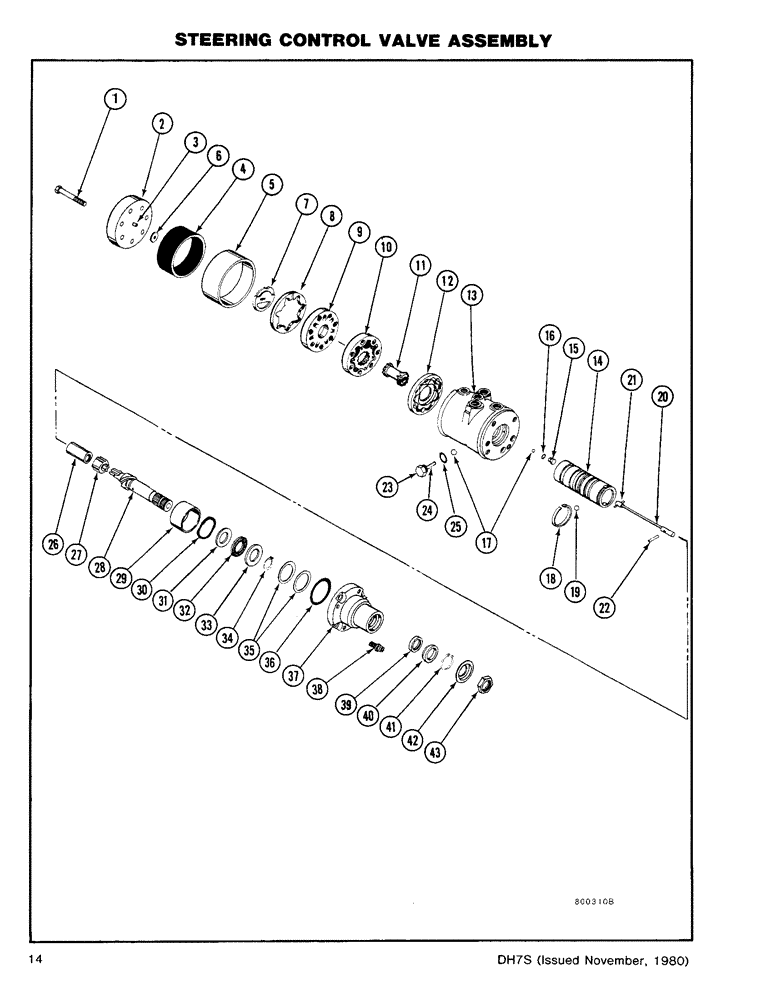

Запчасти Case DH7 (14) - STEERING CONTROL VALVE ASSEMBLY (41) - STEERING

H660100

GUIDE

STEERING CONTROL VALVE ASSEMBLY, Includes: Ref. 1 - 43

1шт.

1

A44196

BOLT

- NC HH

7шт.

A45102

BOOT

COVER ASSEMBLY, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

COVER

1шт.

3

NSS

NOT SOLD SEPARAT

NEEDLE

1шт.

4

D74440

SEAL

- Rotor

1шт.

5

A45286

RETAINER

- Seal

1шт.

6

A43579

WASHER,0.19" ID x 0.677" OD x 0.032"

WASHER

1шт.

A43574

COMMUTATOR

ASSEMBLY, Includes: Ref. 7 - 43

1шт.

7

NSS

NOT SOLD SEPARAT

COMMUTATOR

1шт.

8

NSS

NOT SOLD SEPARAT

RING - Commutator

1шт.

9

A43573

MANIFOLD

1шт.

10

A45013

ROTOR

SET - Rotor

1шт.

11

A44199

LINK

- Drive

1шт.

12

A43569

BUSHING

SPACER

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

14

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

L36015

PLUG

and O-RING ASSEMBLY, Includes: Ref. 15 and 16

2шт.

15

NSS

NOT SOLD SEPARAT

PLUG

1шт.

16

A43729

O-RING

1шт.

17

211-7

BALL,1/4" Dia

- stud 1/4" Dia

2шт.

18

A43560

SPRING

1шт.

19

211-9

BALL,5/16" Dia

- (5/16 diameter)

1шт.

L36010

BAR

TORSION BAR ASSEMBLY, Includes: Ref. 20 and 21

1шт.

20

NSS

NOT SOLD SEPARAT

BAR - Torsion

1шт.

21

NSS

NOT SOLD SEPARAT

ROLLER - Needle

1шт.

22

D53297

PIN

ROLLER - Needle

1шт.

F82944

PLUG

AND ROLL PIN ASSEMBLY, Includes: Ref. 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

PLUG

1шт.

24

NSS

NOT SOLD SEPARAT

PIN - Roll

1шт.

25

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

26

A44198

SPACER

1шт.

27

D43554

TUBE

RING - Drive

1шт.

28

D73672

SHAFT

- Input

1шт.

29

N6514

BUSHING

SPACER

1шт.

30

A43721

BEARING WASHER,1.466" ID x 1.74" OD x 0.195"

WASHER - Wave

1шт.

31

F19634

BEARING WASHER

RACE - Bearing

1шт.

32

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

BEARING - Thrust

1шт.

33

A43558

BEARING WASHER,0.91" ID x 1.735" OD x 0.126"

WASHER - Thrust

1шт.

34

A43720

RING

- Retaining

1шт.

35

L35662

SHIM

- (0.010)

1шт.

35

A44435

SHIM

- (0.005)

1шт.

35

L35663

SHIM

- (0.025)

1шт.

35

L35664

SHIM

- (0.030)

1шт.

36

A43566

SEAL,47.09mm ID x 51.16mm OD x 1.75mm Thk

RING - Seal

1шт.

37

D65139

COVER

- Upper

1шт.

38

166-24

12 PT SCREW,Flg, 5/16" - 18 x 3/4", Gr 8

SCREW

4шт.

A47038

SEAL KIT,Pump Shaft

KIT - Seal, Includes: Ref. 39 - 43

1шт.

39

NSS

NOT SOLD SEPARAT

SEAL

1шт.

40

NSS

NOT SOLD SEPARAT

WASHER - Backup

1шт.

41

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125

1шт.

42

D70586

SEAL,26.29mm ID x 41.66mm OD x 1.45mm Thk

1шт.

43

F19646

LOCK NUT,13/16"-20, Thin

NUT - (13/16-20 UNF)

1шт.
