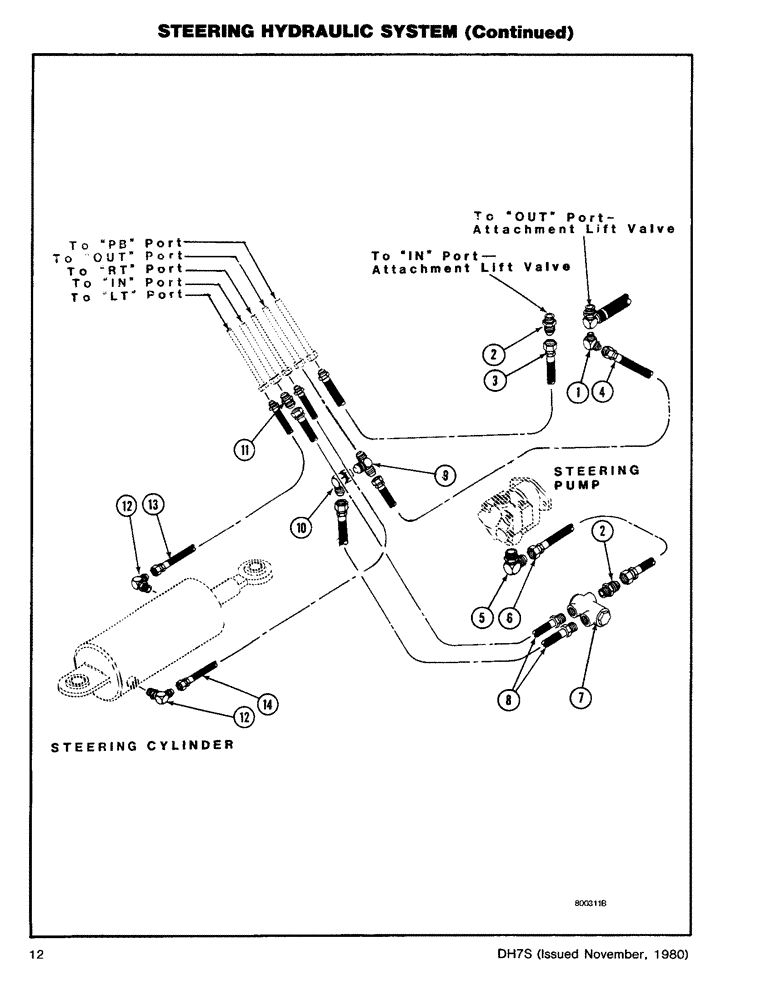

Запчасти Case DH7 (12) - STEERING HYDRAULIC SYSTEM (41) - STEERING

1

218-534

ELBOW,45 Degree, 3/4"-14, 37 Degree x 3/8"-18, NPTF

- 90 degree (3/8 NPTF x 3/4 JIC M)

1шт.

2

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., (3/4 ORB x 7/8 JIC M)

2шт.

3

H206441

HOSE

- 1/2 x 46 (3/4 JIC M x 7/8 JIC Fe Sw)

1шт.

4

H205955

HYDRAULIC HOSE,9.52 mm ID x 1193.80 mm, SAE 100R1

9.52 mm ID x 1193.80 mm, SAE 100R1

1шт.

5

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

(7/8 ORB x 7/8 JIC M) 90º, 7/8"-14, 37º x 7/8"-14, O-Ring

1шт.

6

H215798

HOSE - 1/2 x 69 (7/8 JIC Fe Sw Ends)

1шт.

7

H542910

LOCK VALVE

RELIEF VALVE ASSEMBLY - (See Figure 16)

1шт.

8

H200188

HOSE

- 3/8 x 26 (3/4 ORB x 3/4 JIC Fe Sw)

2шт.

9

218-594

TEE,3/4"-16, 37 Degree

- (3/4 JIC M)

1шт.

10

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree (3/4 JIC M x 3/4 JIC Fe Sw)

1шт.

11

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR - (3/4 JIC M x 3/4 JIC M)

1шт.

12

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree (9/16 ORB x 9/16 JIC M)

2шт.

13

H256503

HOSE ASSY.

HOSE - 1/4 x 56 (9/16 JIC M x 9/16 JIC Fe SW)

1шт.

14

H339499

HOSE ASSY.

HOSE - 1/4 x 48 (9/16 JIC M x 9/16 JIC Fe SW)

1шт.
