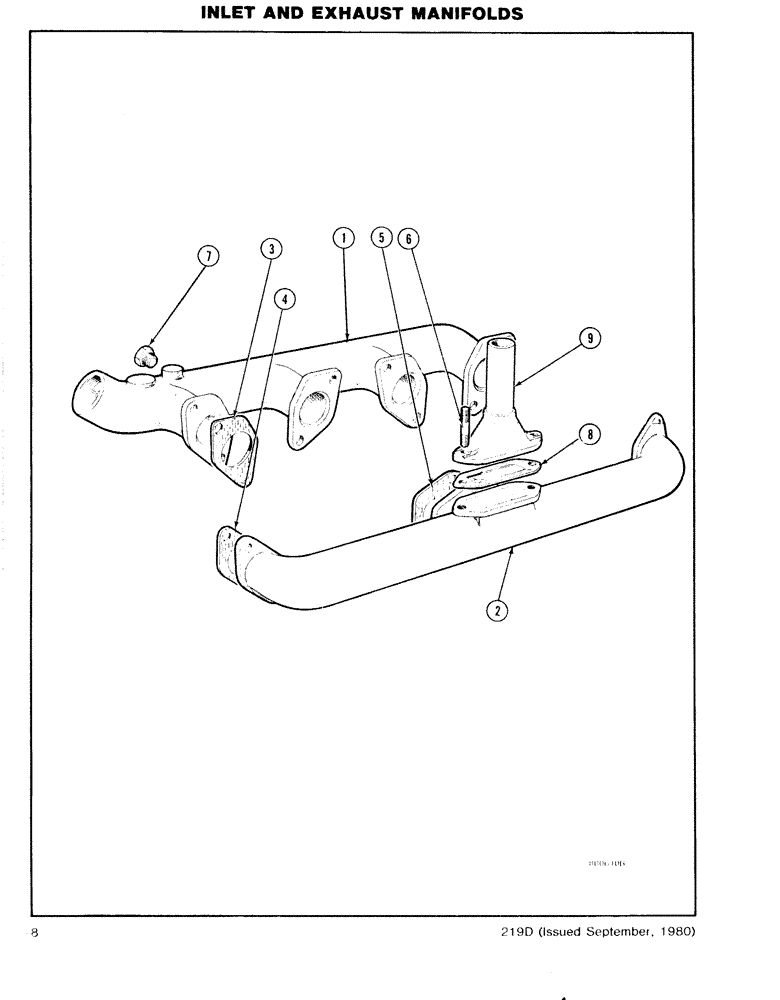

Запчасти Case DH7 (08) - INLET AND EXHAUST MANIFOLDS (10) - ENGINE

1

K923244

MANIFOLD

- Air Inlet

1шт.

K19591

PLUG

- (1/8 NPTF) Inlet Manifold

1шт.

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

- Sealing

1шт.

2

K906744

MANIFOLD

- Exhaust

1шт.

3

K921730

MANIFOLD GASKET

- Inlet Manifold

4шт.

4

K907344

MANIFOLD GASKET

- Exhaust Manifold

2шт.

5

K907343

GASKET

- Exhaust Manifold

1шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

17шт.

6

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- NC HH (3/8 x 1 15/16)

2шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

2шт.

7

K928523

GLOW PLUG

THERMOSTART

1шт.

K626957

WASHER

- Sealing

1шт.

8

G46853

MANIFOLD GASKET

-, Serial Range: Manifold-Flange

1шт.

Should read K957520 gasket.

1шт.

9

H625970

FLANGE

- Exhaust

1шт.

K928668

PIPE,0.25" OD x 14" L

- Exhaust Drain

1шт.

K622402

FERRULE

OLIVE - (1/4)

1шт.

K617421

PIPE UNION NUT

- Union (1/8 BSP)

1шт.

K626051

FITTING

UNION - (1/8 BSP)

1шт.

Should read K952969.

1шт.
