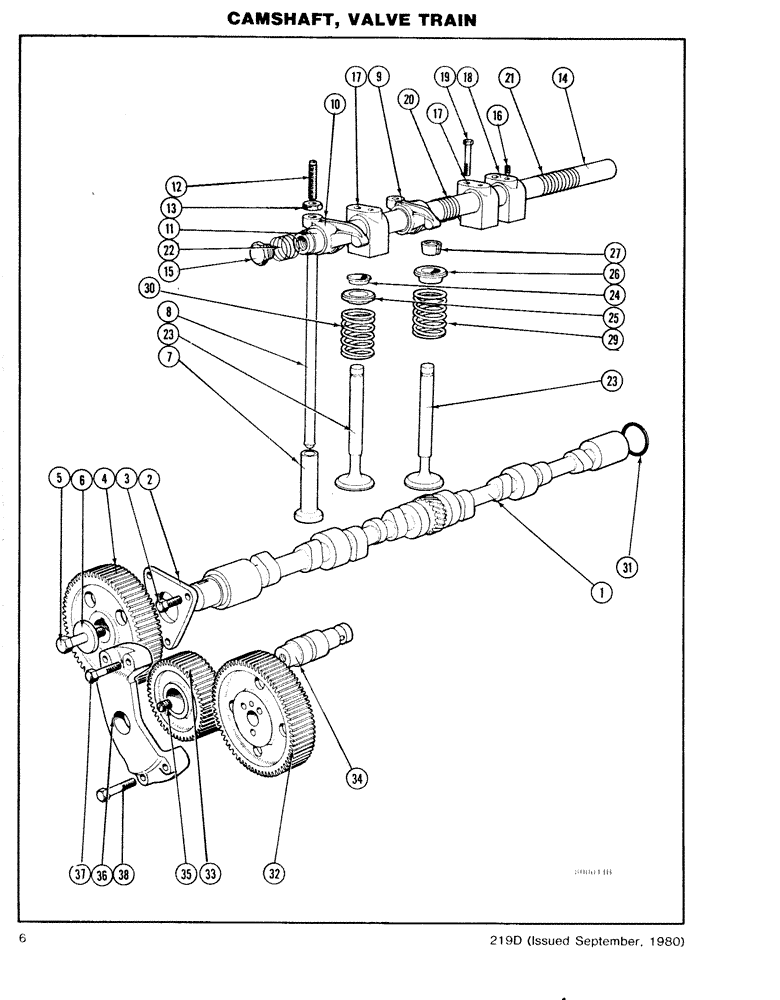

Запчасти Case DH7 (06) - CAMSHAFT, VALVE TRAIN (10) - ENGINE

1

K921769

CAMSHAFT

1шт.

2

K902015

PLATE

- Locating, Includes: Ref. 3

1шт.

3

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

SCREW - HH (5/16 x 1 NC)

3шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

4

K945097

GEAR

- Camshaft (68 teeth), Includes: Ref. 5 and 6

1шт.

126-15

WOODRUFF KEY,#8, 5/32" x 3/4"

(No. 506) #8, 5/32" x 3/4"

1шт.

5

K600700

BOLT

- NC (7/16 x 2) safety wire

1шт.

6

K66382

WASHER

- (7/16)

1шт.

7

K901137

TAPPET

8шт.

8

K902035

ROD

- Push

8шт.

9

K961052

ROCKER

- Valve - R.H.

4шт.

10

K961053

ROCKER

- Valve - L.H.

4шт.

11

K964733

BUSHING

- Valve Rocker

8шт.

12

K900413

ADJUSTMENT SCREW,3/8" - 16 x 1 1/8"

- Adjusting

8шт.

13

87016560

JAM NUT,Jam, 3/8"-16, G5

8шт.

14

K909622

SHAFT

- Rocker

1шт.

15

K19590

PLUG

- (3/8 BSP)

2шт.

16

K606051

SET SCREW,5/16" - 18 x 1/2"

- Locating (5/16 NC)

1шт.

17

K921431

BRACKET

- Rocker Shaft - Nos. 1, 2 and 3

3шт.

18

K921432

BRACKET

- Rocket Shaft - Rear, Includes: Ref. 19

1шт.

19

113-359

BOLT,Hex, 7/16" - 14 x 2-5/8", Gr 5

- NC (7/16 x 2 5/8)

4шт.

92-7

LOCK WASHER,7/16"

4шт.

K626314

WASHER

- (7/16)

4шт.

20

K11017

SPRING

- Locating, Intermediate

2шт.

21

K11034

SPRING

- Locating, Center

1шт.

22

K11018

SPRING

- Locating, Ends

2шт.

23

K928622

STD INLET VALVE

VALVE - Inlet and Exhaust - Standard

8шт.

23

K928986

VALVE

- Inlet and Exhaust - (.010 Oversize Stems)

1шт.

23

K928927

VALVE - Inlet and Exhaust - (.020 Oversize Stems)

1шт.

24

K928623

COLLAR

- Inner - Exhaust Valve

4шт.

25

K928624

COLLAR

- Outer - Exhaust Valve

4шт.

26

K921437

COLLAR

- Inlet Valve

4шт.

27

K943439

LOCKING DEVICE

COTTER - Inlet and Exhaust Valve

16шт.

29

K921435

SPRING

- Inlet Valve

4шт.

30

K921436

VALVE SPRING

SPRING - Exhaust Valve

4шт.

31

K15279

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

0 - RING - Internal (1 3/8)

1шт.

32

K945096

GEAR

- Injection Pump Drive (68 teeth)

1шт.

33

K946144

GEAR

INTERMEDIATE GEAR ASSEMBLY - (47 teeth)

1шт.

K628751

BUSHING

1шт.

34

K944136

GEAR SHAFT

SHAFT - Intermediate Gear - W/Plugs, Includes: Ref. 35

1шт.

35

176-511

SET SCREW,5/16"-18 x 5/16", Slotted

PLUG - (5/16 UNC)

2шт.

36

K904073

SUPPORT

BRACKET - Intermediate Gear Support

1шт.

K902113

SHIM,.003" Thk

Includes Ref. 37 and 38 .003" Thk

1шт.

K902114

SHIM,.010" Thk

Includes Ref. 37 and 38 .010" Thk

1шт.

K908713

SHIM,.020" Thk

Includes Ref 37 and 38 .020" Thk

1шт.

37

26-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 8

- NC (5/16 x 1 3/4)

2шт.

38

26-532

BOLT,Hex, 5/16" - 18 x 2", Gr 8

- NC (5/16 x 2)

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.
