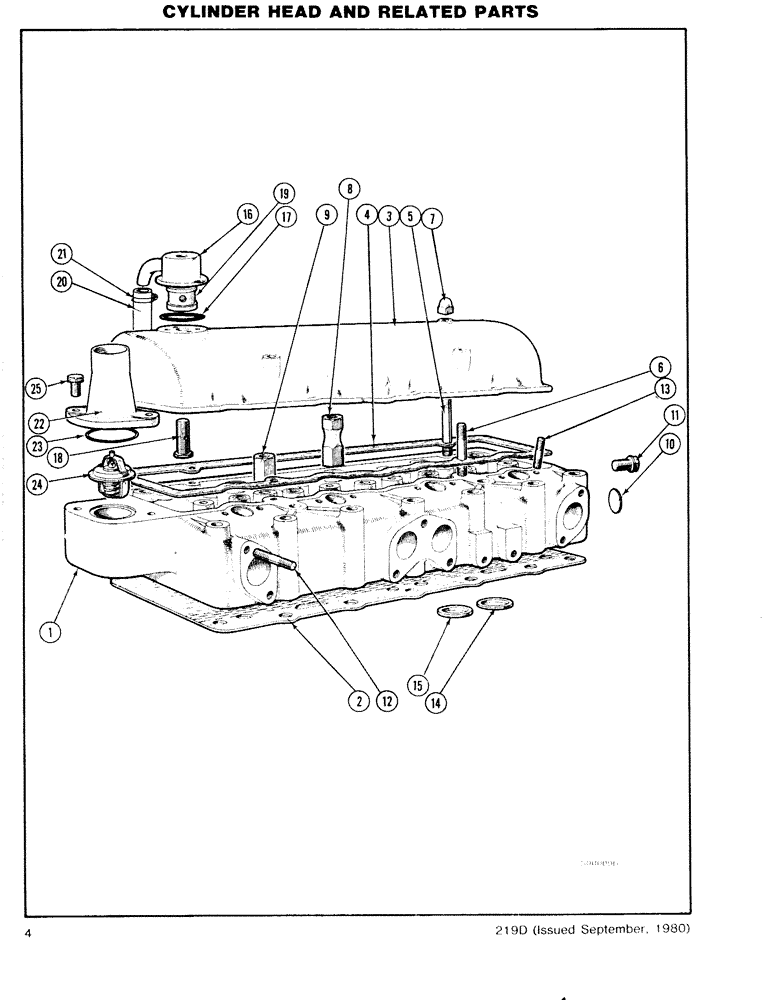

Запчасти Case DH7 (04) - CYLINDER HEAD AND RELATED PARTS (10) - ENGINE

1

K964533

CYLINDER

HEAD - Cylinder

1шт.

K617594

NUT

- NF (1/2) Cylinder Head

5шт.

K953429

WASHER,13.89mm ID x 23.81mm OD x 0.71mm Thk

- (1/2" Surface) Cylinder Head

19шт.

2

K947758

GASKET

- Cylinder Head

1шт.

3

K920678

COVER

- Cylinder Head

1шт.

4

K905229

GASKET,3.97mm Thk

- Cylinder Head Cover, Includes: Ref. 5 - 7

1шт.

5

K608118

STUD

- (5/16 x 3 7/16 NC)

2шт.

6

K608119

STUD

- (5/16 x 2 13/16)

2шт.

7

129-880

CROWN NUT,Crown, 5/16"-18

- Domed (5/16 NC)

4шт.

K14988

WASHER

- Copper - Asbestos (5/16)

4шт.

K600870

BOLT

- (1/2 x 4 1/2 NC - Special)

7шт.

8

K906536

NUT

NUT - Elongated (1/2 NF)

7шт.

9

K906898

NUT

- Lifting (1/2 NF)

2шт.

10

41-1020

PLUG,Cup, 1 1/4"

- Core (1 1/4)

1шт.

11

K19591

PLUG

CAPSCREW

1шт.

K16732

WASHER

- Copper (3/8)

1шт.

12

K608203

STUD

- Manifold (3/8 x 1/7/8 NC)

12шт.

K608237

STUD

- Conduit to Inlet Manifold (3/8 x 2 NC)

2шт.

K608216

STUD

- Exhaust Manifold (3/8 x 1 3/8 NC)

1шт.

13

K608107

STUD

- Injector (5/16 x 2 11/16)

8шт.

9635082

NUT,5/16" - 18, Gr 5

8шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

14

K921246

INSERT

- Inlet Valve Seat (Standard)

4шт.

14

K921795

INSERT - Inlet Valve Seat (Oversize)

1шт.

15

K925019

INSERT

- Exhaust Valve Seat (Standard)

4шт.

15

K921794

INSERT

- Exhaust Valve Seat (Oversize)

1шт.

16

K948118

COVER

1шт.

17

K626901

O-RING,40554" ID x 40575" OD x 0.12"

O - RING - (1 11/16 Internal), Includes: Ref. 18

1шт.

18

K600803

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

- (1/2 x 1 5/8 NC)

1шт.

129-145

JAM NUT,Jam, 1/2"-13, G5

1шт.

19

K945433

BUSHING

PIECE - Distance

1шт.

20

NSS

NOT SOLD SEPARAT

HOSE

1шт.

21

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - Hose

1шт.

K626443

WASHER

- Copper

1шт.

K902765

PIPE

- Oil - Cylinder Block to Head (not illustrated)

1шт.

22

K946852

FITTING

ELBOW - Water Outlet

1шт.

23

K68951

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

-138, 90 Duro, 2.112" ID x .103" Thk

1шт.

24

K917962

THERMOSTAT

1шт.

K200225

GASKET,0.81mm Thk

- Thermostat, Includes: Ref. 25

1шт.

25

K600214

BOLT

- NC (5/16 x 2 1/2)

1шт.

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.
