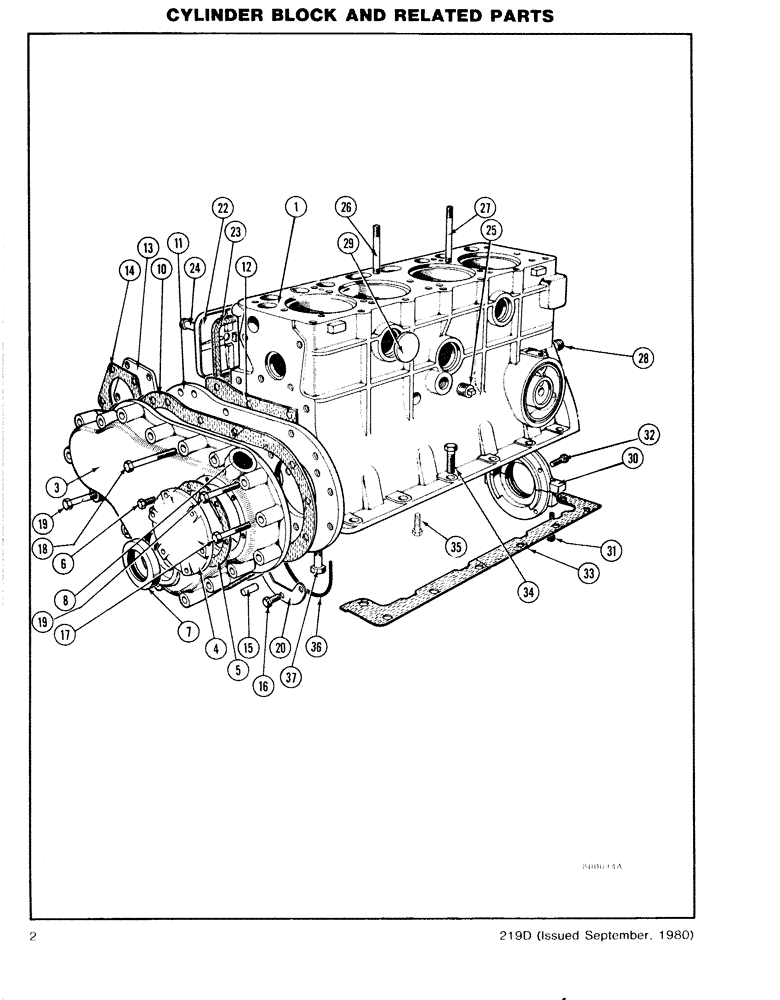

Запчасти Case DH7 (02) - CYLINDER BLOCK AND RELATED PARTS (10) - ENGINE

K964629

BLOCK

- Short, Includes: Ref. 1 - 37

1шт.

Short Block includes block with crankshaft and pistons installed, (does not include the camshaft)

1шт.

1

K965168

BASIC BLOCK

BLOCK - With Main Bearing Caps

1шт.

K964857

LINER, ENGINE CYLIND

LINER - Cylinder

1шт.

K12258

PIN

DOWEL - (5/16 x 3/4) Main Bearing Cap to Cylinder Block

6шт.

K902022

BOLT

- NC HH (5/8 x 3 5/8) Main Bearing Cap to Cylinder Block

6шт.

K929557

WASHER

WASHER - (5/8) Main Bearing Cap to Cylinder Block

6шт.

K12994

BEARING WASHER

TAB WASHER - Main Bearing Cap to Cylinder Block

6шт.

3

K950628

COVER

- Timing Gear

1шт.

4

K924397

COVER

PLATE - Inspection

1шт.

5

K924398

FLEXIBLE JOINT

GASKET, Includes: Ref. 6

1шт.

Included in K965803 Gasket Set

1шт.

6

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

6шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

6шт.

7

K628127

OIL SEAL,52.2mm ID x 73.45mm OD x 9.5mm Thk

- Oil

1шт.

K623454

FELT SEAL,54.77mm ID x 73.82mm OD x 3.17mm Thk

- Felt

1шт.

8

K623791

PLUG

- Core (1/4") Timing Case

1шт.

10

K920794

GASKET

-, Serial Range: Cover-Plate

1шт.

Included in K965803 Gasket Set

1шт.

11

K946855

CARRIER

PLATE - Carrier

1шт.

12

K902031

GASKET

-, Serial Range: Plate-Block

1шт.

Included in K965803 Gasket Set

1шт.

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

O - RING - (3/4 Internal)

1шт.

13

K915158

PLATE

- Blanking

1шт.

14

K915157

GASKET

- Blanking Plate to Carrier Plate

1шт.

Included in K965803 Gasket Set

1шт.

15

K621807

PIN

DOWEL - (5/16 x 1/2)

2шт.

16

26-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

SCREW - HH (5/16 x 3/4) Carrier Plate

4шт.

17

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Timing gear cover Hex, 5/16"-18 x 1", G5, Full Thd

9шт.

18

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Timing gear cover Hex, 5/16"-18 x 2", G5

1шт.

19

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

Timing gear cover Hex, 5/16"-18 x 1 1/2", G5

6шт.

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

Timing gear cover Hex, 5/16"-18 x 5/8", G5, Full Thd

1шт.

9635082

NUT,5/16" - 18, Gr 5

Timing Gear Cover 5/16"-18, G5

3шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Timing gear cover 5/16"

21шт.

20

K902036

GASKET

PLATE - Baffle

1шт.

22

K10029

COVER

- Tappets

2шт.

23

K10030

GASKET

- Tappet Cover, Includes: Ref. 24

2шт.

Included in K965803 Gasket Set

1шт.

24

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Tappet Cover Hex, 3/8"-16 x 2", G5

2шт.

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

- Fibre (3/8)

2шт.

25

K19581

PLUG

- Drain (1/4 BSP)

1шт.

K19501

WASHER

WASHER - Fibre

1шт.

26

K906538

STUD

- (1/2 NC/NF x 4 7/8) Cylinder Head

10шт.

27

K608505

STUD,1/2" x 7/16"

STUD - (1/2 NC/NF x 5 5/16) Cylinder Head

2шт.

28

K609440

PLUG

- (5/8 UNC) Oil Gallery - Rear

1шт.

K619506

WASHER

- Copper (5/8)

1шт.

K609449

PLUG

- (5/8 UNC) Oil Gallery - Front

1шт.

29

K623797

PLUG

- Core (1 3/4)

5шт.

30

K964844

HOUSING

RETAINER - Oil

1шт.

K921611

OIL SEAL

PACKING - Halves - Oil Retainer

2шт.

Included in K965803 Gasket Set

1шт.

K950938

GASKET,0.18mm Thk

- Halves - Oil Retainer

2шт.

Included in K965803 Gasket Set

1шт.

K19482

SPRING WASHER

WASHER - Spring (3/8), Includes: Ref. 31 and 32

16шт.

31

61-524

HEX SOC SCREW,5/16"-18 x 1 1/2"

SCREW - Socket (5/16 NC)

2шт.

32

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

5шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

K623523

O-RING,1.802" OD x 0.143" Width

O - RING - Camshaft Rear Bearing

1шт.

Included in K965803 Gasket Set

1шт.

33

K902044

GASKET

- L.H. Sump to Cylinder Block

1шт.

Included in K965803 Gasket Set

1шт.

K902045

GASKET

- R.H. Sump to Cylinder Block

1шт.

Included in K965803 Gasket Set

1шт.

34

113-362

SCREW

- HH (3/8 x 1 1/8 NC) Sump to Cylinder Block

10шт.

35

K600406

BOLT

- NC (3/8 x 1 3/4) Sump to Cylinder Block

2шт.

36

K902046

SEAL

- Sump to Cylinder Block

2шт.

Included in K965803 Gasket Set

1шт.

37

K600427

BOLT

- NC (3/8 x 5 3/4) Sump to Cylinder Block

4шт.

K623523

O-RING,1.802" OD x 0.143" Width

PIN - Dowel

2шт.
