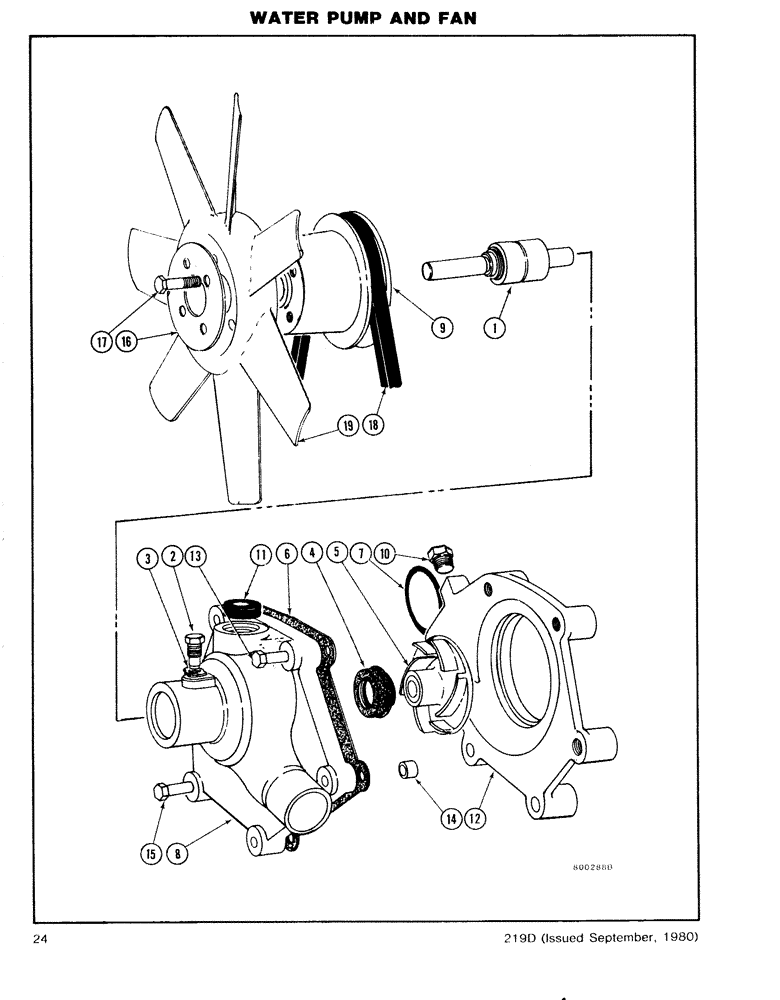

Запчасти Case DH7 (24) - WATER PUMP AND FAN (10) - ENGINE

K954281

WATER PUMP ASSEMBLY Now goes to P/N K200679, Includes: Ref. 1 - 7 to, Serial Range: Up-11300058

1шт.

K200822

PUMP

WATER PUMP ASSEMBLY Now goes to P/N K200679, Includes: Ref. 1 - 7 11300058 and, Start Serial: up

1шт.

K965848

PACKAGE, REPAIR

REPAIR PACK - Water Pump, Includes: Ref. 1 - 7 to, Serial Range: Up-11300058

1шт.

K965860

KIT

REPAIR PACK - Water Pump, Includes: Ref. 1 - 7 11300058 and, Start Serial: up

1шт.

1

K11651

BEARING

SHAFT and BEARING to, Serial Range: Up-11300058

1шт.

1

K620201

BEARING

SHAFT and BEARING 11300058 and, Start Serial: up

1шт.

2

K946260

SCREW

- Locating (5/16 NC) to, Serial Range: Up-11300058

1шт.

3

K11673

WASHER

TAB WASHER - Locating Screw to, Serial Range: Up-11300058

1шт.

4

K68949

SEAL

- Gland to, Serial Range: Up-11300058

1шт.

4

K200823

GLAND

SEAL - Gland 11300058 and, Start Serial: up

1шт.

K200821

RING

SEAL - Gland 11300058 and, Start Serial: up

1шт.

Not Illustrated.

1шт.

5

K943357

IMPELLER

to, Serial Range: Up-11300058

1шт.

5

K200687

IMPELLER

11300058 and, Start Serial: up

1шт.

6

K942844

GASKET

1шт.

Included in K965803 Universal Gasket Set

1шт.

7

K24737

O-RING,0.139" Thk x 1.609" ID, -223, Cl 6, 90 Duro

O - RING - Housing to Cylinder Head to, Serial Range: Up-11300058

1шт.

Included in K965803 Universal Gasket Set

1шт.

7

K915330

SEALING RING

O - RING - Housing to Cylinder Head 11300058 and, Start Serial: up

1шт.

7a

K31787

O-RING,0.984" ID x 1.262" OD x 0.139"

1шт.

8

K955439

BODY to, Serial Range: Up-11300058

1шт.

8

K956669

HOUSING

BODY 11300058 and, Start Serial: up

1шт.

9

K942475

PULLEY

1шт.

K953379

BUSHING

SPACER - Fan Pulley

1шт.

Not Illustrated.

1шт.

10

K623829

PLUG

- (3/8 BSP)

1шт.

K19500

GASKET

WASHER - Fibre

1шт.

11

K915330

SEALING RING

SEAL - Rubber - Pump to Cylinder Head

1шт.

12

K952667

HOUSING

- Impeller

1шт.

13

K600203

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

- NC (5/6 x 1 1/4)

2шт.

14

K19481

SPRING WASHER

DOWEL - Ring

2шт.

15

K600211

BOLT

- NC (5/16 x 2 1/4)

4шт.

16

K921361

SHIM

PLATE - Fan Retaining

1шт.

17

K31787

O-RING,0.984" ID x 1.262" OD x 0.139"

BOLT - NC (3/8 x 1 1/2)

4шт.

K19482

SPRING WASHER

WASHER - Lock (3/8)

4шт.

18

K952514

V-BELT

Fan and Alternator

1шт.

19

K200402

FAN

, Serial Range: 1151896-1188366

1шт.

19

K384073

FAN 1188367 and, Start Serial: up

1шт.
