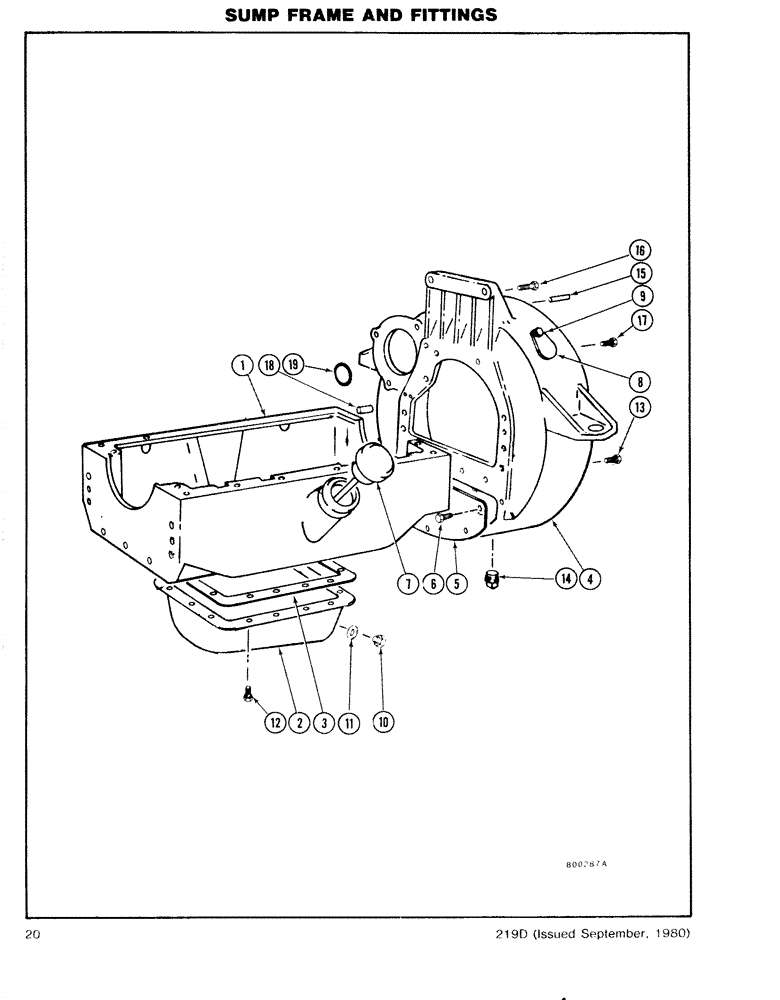

Запчасти Case DH7 (20) - SUMP FRAME AND FITTINGS (10) - ENGINE

1

K945957

MOTOR HOUSING

FRAME - Sump

1шт.

2

K948959

SUMP

COVER - Sump

1шт.

3

K952794

GASKET,1.68mm Thk

- Sump Cover

1шт.

4

K952703

HOUSING

- Flywheel

1шт.

5

K200506

COVER

PLATE - Cover

1шт.

6

K602702

SCREW

BOLT - NC (1/4 x 5/8)

5шт.

K19480

SPRING WASHER

- Lock (1/4)

5шт.

7

K946050

DIPSTICK

OIL FILLER CAP and DIPSTICK ASSEMBLY

1шт.

8

K953569

COVER

- Timing Hole

2шт.

9

K602702

SCREW

BOLT - NC (1/4 x 5/8)

2шт.

10

K623825

PLUG

- (1/2 BSP) Oil Drain

1шт.

11

K626793

WASHER

- Aluminum

1шт.

12

K602803

BOLT

- NC (5/16 x 3/4), Serial Range: Sump-Frame

14шт.

K19481

SPRING WASHER

WASHER - Lock (5/16), Serial Range: Sump-Frame

14шт.

13

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Frame to Flywheel Housing Hex, 3/8"-16 x 1 1/8", G5, Full Thd

8шт.

K19482

SPRING WASHER

WASHER - Lock (3/8) Frame to Flywheel Housing

8шт.

14

K623826

PLUG

- (3/4 BSP) Flywheel Housing

1шт.

K690868

SPRING

PIN - Spring (1/8 x 1 1/2) Flywheel Housing

1шт.

15

K19547

HARDWARE

PIN - Split (3/16 x 1 1/8) Flywheel Housing Drain

1шт.

16

K602908

SCREW

BOLT - NC (3/8 x 1 1/2) Flywheel Housing to Cylinder Block

2шт.

K19482

SPRING WASHER

WASHER - Lock (3/8) Flywheel Housing to Cylinder Block

8шт.

17

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Flywheel Housing to Cylinder Block Hex, 3/8"-16 x 1 1/8", G5, Full Thd

6шт.

18

K12258

PIN

DOWEL - (5/16 x 3/4) Flywheel Housing to Cylinder Block

2шт.

19

K15279

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

- (1 3/8 Internal) Flywheel Housing to Cylinder Block

1шт.
