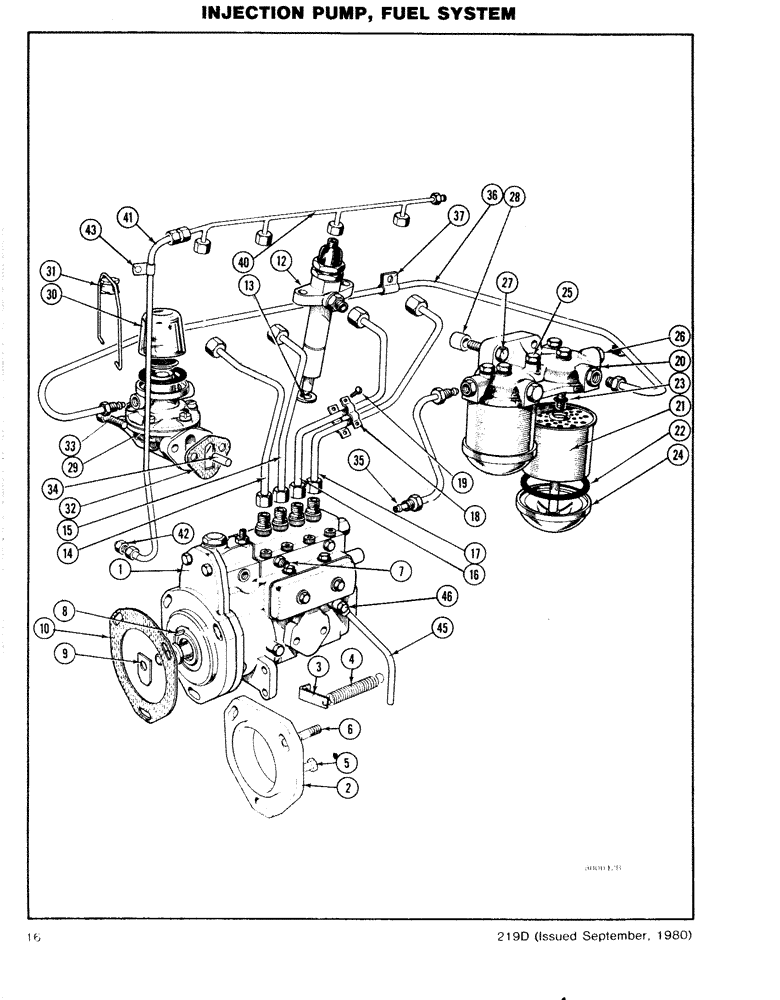

Запчасти Case DH7 (16) - INJECTION PUMP, FUEL SYSTEM (10) - ENGINE

1

K947190

PUMP - Injection (Bosch PES4A850 210RS 1286EP/ RSV300 - 1150 A287 08L)

1шт.

K945096

GEAR

- Injection Pump

1шт.

425-158

JAM NUT,Jam, 1/2"-20, G5

- NF (1/2 - Lock)

1шт.

K620460

ADAPTER

- (1/8 BSP - M8) Injector Leak-Off

4шт.

K36374

WASHER

- 8 mm - Copper

4шт.

Ref.1, k947190 inj. pump s/b k947199.

1шт.

2

K946856

ADAPTER

- Injection Pump

1шт.

3

K947534

SPRING

BRACKET - Anchor - Stop Control Spring

1шт.

4

K624926

SPRING

- Stop Control, Includes: Ref. 5 and 6

1шт.

5

113-2225

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

Adapter to Injection Pump Hex, 3/8"-16 x 1 3/8", G5

4шт.

K19472

WASHER

- (3/8) Adapter to Injection Pump

3шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Adapter to Injection Pump 3/8"

4шт.

6

K608219

STUD

- NC (3/8 x 1 3/8) Adapter to Carrier Plate

3шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Adapter to Carrier Plate 3/8"-16, G5

3шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Adapter to Carrier Plate 3/8"

3шт.

7

K947076

FITTING

UNION - (14 mm x 1/2 NF) Adapter to Carrier Plate

1шт.

K626891

WASHER

- Sealing

1шт.

8

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

(No. 505) #6, 5/32" x 5/8"

1шт.

9

K626429

WASHER

TAB WASHER

1шт.

10

K946857

GASKET

1шт.

12

K954826

INJECTOR ASSY.

NOZZLE and HOLDER ASSEMBLY, Includes: Ref. 13

4шт.

K954827

NOZZLE INJECTION

HOLDER - Nozzle

1шт.

K942176

NOZZLE CAP

NOZZLE

1шт.

13

F62390

WASHER,10mm ID x 21.01mm OD x 2.08mm Thk

- Copper

4шт.

Included in K965803 Universal Gasket Set

1шт.

14

K947123

PIPE

- Fuel - Injection Pump to No. 1 Cylinder

1шт.

15

K947124

PIPE

- Fuel - Injection Pump to No. 2 Cylinder

1шт.

16

K947125

PIPE

- Fuel - Injection Pump to No. 3 Cylinder

1шт.

17

K947126

PIPE

- Fuel - Injection Pump to No. 4 Cylinder

1шт.

K900845

NUT

NUT - Union (Injector Pipes)

8шт.

K947203

FERRULE

OLIVE - (Injector Pipes)

8шт.

18

K14673

CLIP

- (Injector Pipes)

4шт.

19

K12217

SCREW,0.185" x 5/8"

- (2BA x 5/8) Injector Pipes

4шт.

K11109

NUT

- (2BA) Injector Pipes

4шт.

K19488

SPRING WASHER

- Lock (3/16) Injector Pipes

4шт.

20

K963878

FILTER

FUEL FILTER ASSEMBLY - (APF 62900), Includes: Ref. 21 - 25

1шт.

21

K960911

FUEL FILTER,Single pkg qty. For multi pkg [qty.10] order K960911MP

ELEMENT

2шт.

22

K965802

RING

WASHER - Sealing (Supplied with Element) (Upper)

1шт.

K965801

RING

WASHER - Sealing (Supplied with Element) (Lower)

1шт.

23

K960937

O-RING

O - RING - (1/2 Internal)

2шт.

24

K962264

COVER

BASE

2шт.

25

K965010

PLUG

- Vent (5/16 UNC)

1шт.

K15734

WASHER

- Aluminum

1шт.

26

K619541

PLUG

- (1/2 UNF) Fuel Filter

1шт.

K15735

WASHER

- Sealing - Fuel Filter

1шт.

27

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Filter to Cylinder Head Hex, 3/8"-16 x 1 3/4", G5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Filter to Cylinder Head 3/8"

2шт.

28

K627042

BUSHING

PIECE - Distance - Filter to Cylinder Head

2шт.

29

K944997

PUMP

FUEL FEED PUMP ASSEBLY - (AC Delco E/FP 63154/B), Includes: Ref. 30 and 31

1шт.

K961675

FILTER SCREEN

GAUZE - Filter

1шт.

30

K66442

FILTER BOWL

BOWL - Filter

1шт.

K961674

SEAL

GASKET

1шт.

31

K961676

BAIL

RETAINER - Bowl

1шт.

K911917

DIAPHRAGM

1шт.

32

K902136

GASKET

- Feed Pump to Cylinder Block

1шт.

Included in K965803 Universal Gasket Set

1шт.

33

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

Feed Pump to Cylinder Block Hex, 5/16"-18 x 1 1/4", G5

2шт.

K14988

WASHER

- Copper - Asbestos (5/16) Feed Pump to Cylinder Block

2шт.

Included in K965803 Universal Gasket Set +Included in K964883 De-Carbonize Gasket Set

1шт.

K626682

WASHER

- (5/16) Feed Pump to Cylinder Block

2шт.

34

K911928

PUSH ROD,9.51mm OD x 35.99mm L

- Push

1шт.

35

K947127

PIPE

- Fuel - Filter to Injection Pump

1шт.

36

K944999

FUEL TUBE,0.25" OD x 14.531, 6.562" L

PIPE - Fuel - Feed Pump to Filter

1шт.

37

K621603

CLIP

- Fuel Pipe to Manifold Street

1шт.

40

K947870

PIPE

- Leak-Off - Injectors

1шт.

41

K947868

PIPE

- Fuel - Pump Leak-Off to Injector Leak-Off

1шт.

42

K947869

FITTING

UNION - (14 mm x 1/8 BSP)

1шт.

K626891

WASHER

1шт.

43

K621610

CLIP

- Pipe - Manifold

1шт.

45

K948061

PIPE

- Leak-Off, Pump - Plastic

1шт.

46

K948114

BOLT

- Banjo (10 mm)

1шт.

K948115

WASHER

- Seal (5/16)

2шт.
