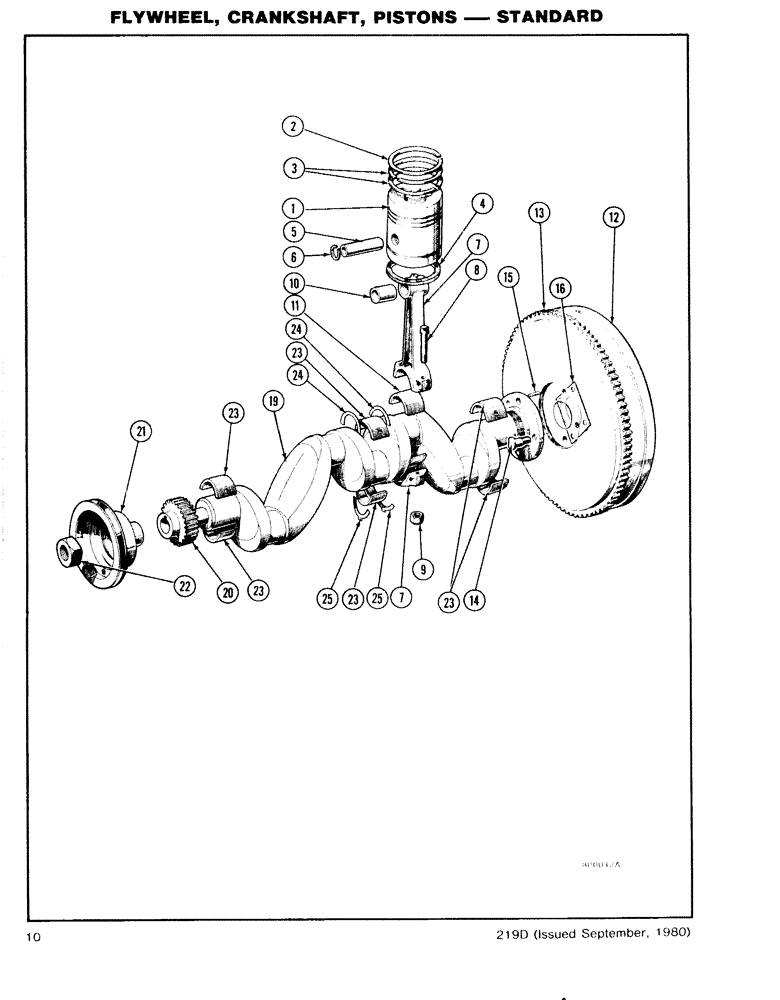

Запчасти Case DH7 (10) - FLYWHEEL, CRANKSHAFT, PISTONS - STANDARD (10) - ENGINE

K949474

PISTON & RINGS KIT

PISTON and GUDGEON PIN ASSEMBLY - (Standard), Includes: Ref. 1 - 6

4шт.

1

NSS

NOT SOLD SEPARAT

PISTON - Standard

1шт.

2

K917407

PISTON

RING - Piston - No. 1 Compression

1шт.

For a complete set of standard piston rings, order K964731 Control Ring Pack - Standard, consists Of 4 each Refs. #2 and #4 and 8 each #3.

1шт.

3

K943882

RING, PISTON

RING - Piston - No. 2 and 3 Compression

2шт.

For a complete set of standard piston rings, order K964731 Control Ring Pack - Standard, consists Of 4 each Refs. #2 and #4 and 8 each #3.

1шт.

4

K917409

SCRAPER

RING - Piston - Scraper

1шт.

For a complete set of standard piston rings, order K964731 Control Ring Pack - Standard, consists Of 4 each Refs. #2 and #4 and 8 each #3.

1шт.

5

K904370

PIN

- Gudgeon

1шт.

6

K34501

RING, SNAP

CIRCLIP - (1 1/4 Internal)

2шт.

7

K80043

ROD, CONNECTING

CONNECTING ROD and CAP ASSEMBLY, Includes: Ref. 8 - 10

4шт.

8

K905198

BOLT

- Connecting Rod

2шт.

9

K623151

LOCK NUT

- (7/16 BSF) - Self-locking

2шт.

10

K31669

BEARING

BUSHING - Small End

1шт.

11

K911904

HALF-BEARING, CRANKS

BEARING - Big End Half - Standard

8шт.

K962158

CRANKSHAFT BEARING

BEARING PACK - (Full Set) - Standard

1шт.

12

K948644

FLYWHEEL

and STARTER RING ASSEMBLY, Includes: Ref. 13 - 25

1шт.

13

K946819

GEAR

RING - Starter, Includes: Ref. 14 - 16

1шт.

14

K903431

STEP BOLT

- (7/16 UNF) Special

4шт.

15

K10629

PIN

DOWEL - (1/2 x 15/16)

1шт.

16

K910883

WASHER

TAB WASHER

1шт.

425-117

NUT,7/16"-20, G5

- (7/16 UNF)

4шт.

19

K905196

CRANKSHAFT

1шт.

19

K210100R

REMAN-CRANKSHAFT

DH7 TRENCHER - CASE 219 ENGINE, PISTONS - STANDARD, Reman for New PN K905196\r\n. Comes with main, thrust & connecting rod bearings

1шт.

19

K210100C

CORE-CRANKSHAFT

Return Number

1шт.

20

K945094

GEAR

- Crankshaft (34 teeth)

1шт.

126-16

WOODRUFF KEY,#9, 3/16" x 3/4"

(No. 606) #9, 3/16" x 3/4"

1шт.

21

K944348

PULLEY

- Crankshaft, Includes: Ref. 22

1шт.

22

K623300

NUT

- 1" Special

1шт.

K626403

WASHER

- 1" Special

1шт.

23

K928541

HALF-BEARING, CRANKS

BEARING - Main, Upper and Lower - Standard

6шт.

24

K928542

SET

WASHER - Thrust, Upper - Standard

2шт.

25

K928543

SET

WASHER - Thrust, Lower - Standard

2шт.
