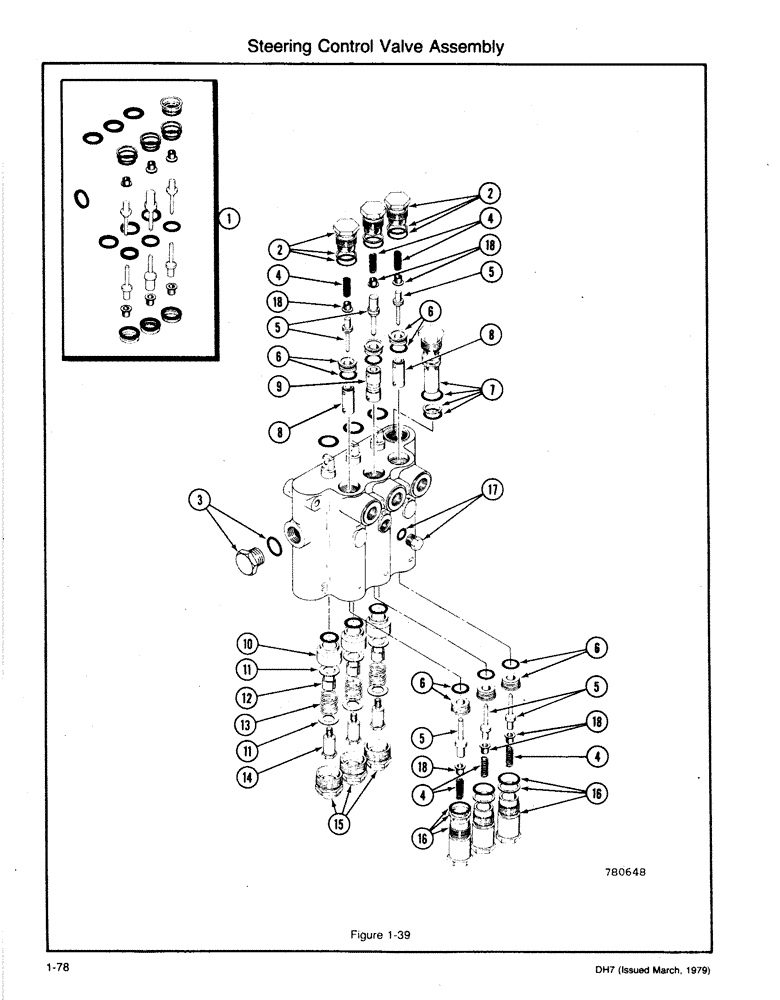

Запчасти Case DH7 (1-78) - STEERING CONTROL VALVE ASSEMBLY (41) - STEERING

H652297

LOCK VALVE

CONTROL VALVE ASSEMBLY, Includes: Ref. 1 - 18

1шт.

1

H628453

KIT

REPAIR KIT - Seal

1шт.

2

F35197

PLUG

ASSY (Includes O Ring and Washer)

3шт.

3

H570374

PLUG

ASSY (Includes O Ring and Washer)

1шт.

4

F35198

VALVE SPRING

SPRING

6шт.

5

H59808

VALVE POPPET

POPPET ASSY (Included in Seal Repair Kit)

6шт.

6

F37884

SEAT

ASSY (Includes O Ring)

6шт.

7

H102053

VALVE

ASSY - Relief (Includes O Rings and Washer)

1шт.

8

F8229

PLUNGER

2шт.

9

H271718

PLUNGER

1шт.

10

T39069

BUSHING

3шт.

11

F8235

WASHER

6шт.

12

F37885

SPACER

3шт.

13

F14091

VALVE SPRING

SPRING

3шт.

14

F37886

SCREW

- Spool

3шт.

15

F35196

CAP

ASSY

3шт.

16

H172601

PLUG

ASSY (Includes O Ring and Washer)

3шт.

17

H580621

PLUG ASSY (Includes O Ring)

1шт.

Ref. 17 The O-ring for this plug is part H756627.

1шт.

18

H266684

AXLE PIN

EYELET

6шт.
