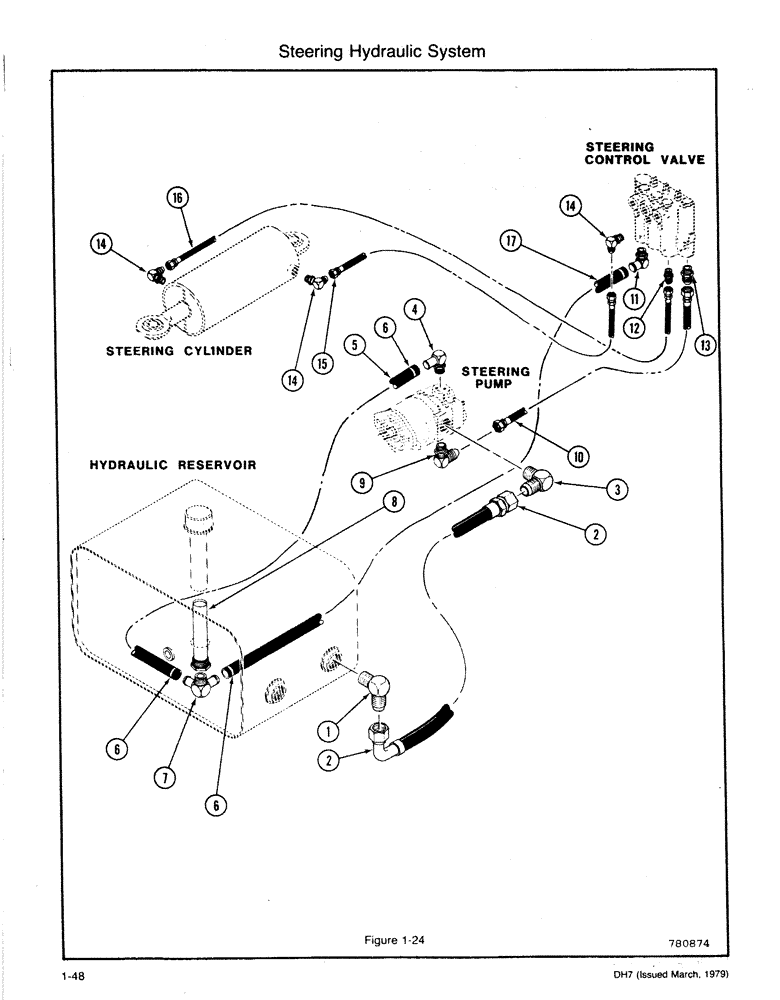

Запчасти Case DH7 (1-48) - STEERING HYDRAULIC SYSTEM (41) - STEERING

1

218-1068

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 1/4"-11 1/2, NPTF

- 90 degrees ( 1 5/16 JIC M x 1-1/4 MP)

1шт.

2

H280677

HOSE

- 1 x 33 (1-5/16 JIC Fe Sw Ends)

1шт.

3

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º (1-5/16 JIC M x 1-5/16 ORB)

1шт.

4

217-361

FITTING,90 Degree Elbow, 3/4" Hose Barb x 7/8" - 14 Male ORB

ELBOW - 90 degrees (7/8 ORB x 3/4 Hose)

1шт.

See Backhoe Or Backfill Blade Hydraulic System

1шт.

5

H307777

HOSE ASSY.

HOSE (3/4 x 20)

1шт.

See Backhoe Or Backfill Blade Hydraulic System

1шт.

6

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

4шт.

7

D59868

ELBOW UNION

TEE (3/4 Barb x 3/4 Barb x 1 MP)

1шт.

8

H151399

FILTER STRAINER

FILTER - Screen

1шт.

9

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degrees (7/8 JIC Fe Sw Ends)

1шт.

10

S8581

HOSE ASSY.

HOSE - 1/2 x 48 (7/8 JIC Fe Sw Ends)

1шт.

11

217-364

FITTING,90 Degree Elbow, 3/4" Hose Barb x 3/4" - 16 Male ORB

ELBOW - 90 degrees (3/4 ORB x 3/4 Barb)

1шт.

12

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR (9/16 ORB x 9/16 JIC M)

1шт.

13

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., (7/8 JIC M x 3/4 ORB)

1шт.

14

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degrees (9/16 JIC M x 9/16 ORB)

3шт.

15

H185736

HYDRAULIC HOSE,6.35 mm ID x 1066.80 mm, SAE 100R1

6.35 mm ID x 1066.80 mm, SAE 100R1

1шт.

16

H243790

HYDRAULIC HOSE,6.35 mm ID x 1473.20 mm, SAE 100R1

6.35 mm ID x 1473.20 mm, SAE 100R1

1шт.

17

H338087

HOSE

(3/4 x 66)

1шт.
