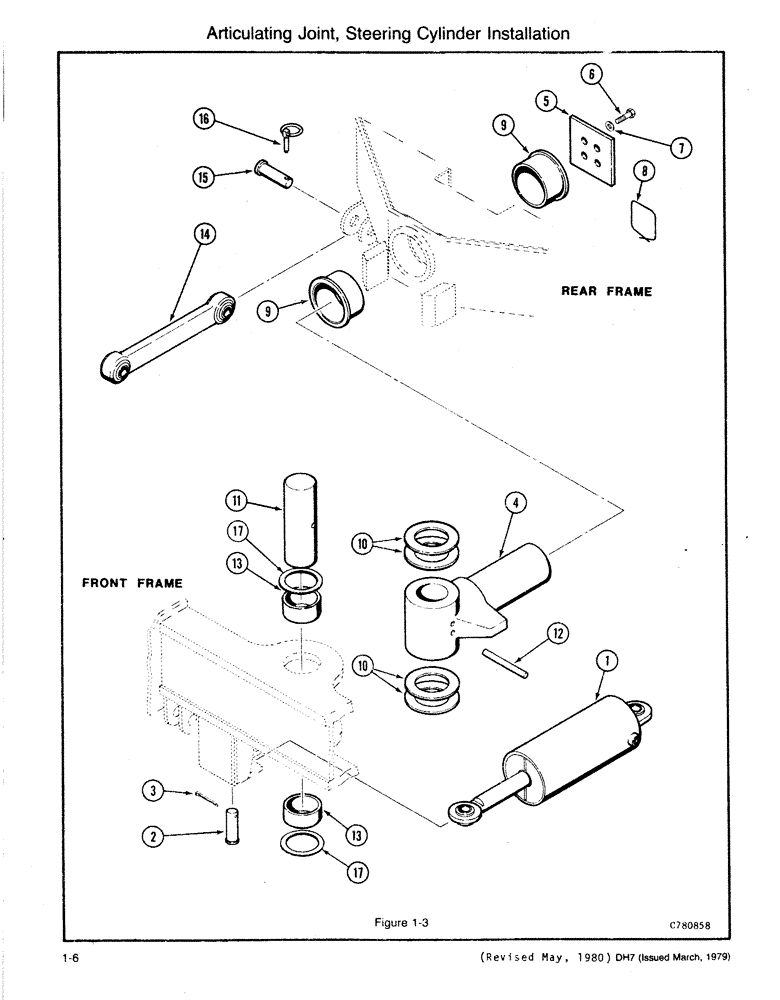

Запчасти Case DH7 (1-06) - ARTICULATING JOINT, STEERING CYLINDER INSTALLATION (39) - FRAMES AND BALLASTING

1

H639872

CYLINDER

ASSEMBLY - Steering (See Figure 1-82), Includes: Ref. 2 and 3

1шт.

2

H70623

AXLE PIN

PIN - Clevis

2шт.

3

132-345

COTTER PIN,3/16" x 1 1/2"

PIN, SPLIT (COTTER), 3/16" x 1 1/2"

2шт.

4

H276964

AXLE PIN

SHAFT - Pivot

1шт.

No grease Zerks used

1шт.

5

H210708

PLATE

Includes: Ref. 6 - 8

1шт.

6

H283614

BOLT

- NC HH (5/8 x 1-1/2)

4шт.

7

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - Flat, Heat Treated (5/8)

4шт.

8

H283648

WIRE - Safety

1шт.

9

H350462

BUSHING

shows as one piece. It is replaced by H405696 thrust washer and H407080 bushing.

2шт.

Rear Frame Assembly includes 2 each Ref. 9.

1шт.

10

H261834

SHIM,.030" Thk

1шт.

10

H260950

SHIM,.060" Thk

1шт.

10

H260943

SHIM,.135" Thk

1шт.

11

H350306

PIVOT ASSY.

PIN, Includes: Ref. 12

1шт.

12

H216572

AXLE PIN

PIN - Keeper

1шт.

13

H350280

BEARING

BUSHING

2шт.

Front Frame Assembly includes 2 each Refs. 13 & 17.

1шт.

Bushing is self lubing

1шт.

14

H644658

LINK - Articulating Joint Lock, Includes: Ref. 15 and 16

1шт.

15

H70623

AXLE PIN

PIN - Clevis (1 x 3-1/8)

2шт.

16

A30338

PIN

- Klik

2шт.

17

H389908

WASHER

RETAINER - Washer

2шт.

Front Frame Assembly includes 2 each Refs. 13 & 17.

1шт.
