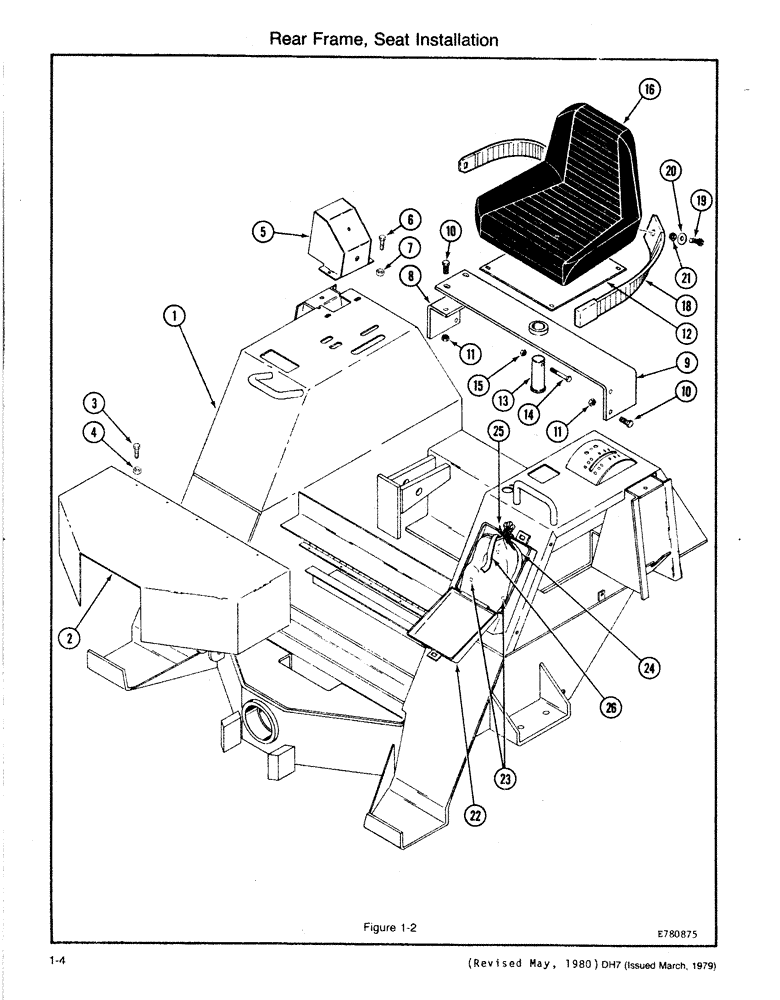

Запчасти Case DH7 (1-04) - REAR FRAME, SEAT INSTALLATION (39) - FRAMES AND BALLASTING

1

H651828

REAR FRAME ASSEMBLY, Serial Range: 1164542-1188367

1шт.

H630046

REAR FRAME ASSEMBLY, Start Serial: 1188367

1шт.

2

H350694

PLATE - Floor, Includes: Ref. 3 and 4

1шт.

3

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

5шт.

4

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

5шт.

5

H646299

BOX - Switch, Includes: Ref. 6 and 7

1шт.

6

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

7

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - NC Hex C/L (5/16)

2шт.

8

H360198

ANGLE - Seat Bracket

1шт.

9

H637645

MOUNTING - Seat

1шт.

10

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

6шт.

11

131-1182

LOCK NUT,1/2"-13, GA

NUT - NC Hex C/L (1/2)

6шт.

12

H623496

SEAT

PLATE - Seat

1шт.

13

H315531

AXLE PIN

PIN, Includes: Ref. 14 and 15

1шт.

14

113-248

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

15

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC Hex C/L (3/8)

1шт.

16

D76157

SEAT

ASSEMBLY (See Figure 1-05A)

1шт.

18

H594564

SAFETY BELT ,3.00" W

Includes Ref. 19 - 21 3.00" W

1шт.

19

114-302

BOLT,Hex, 7/16" - 20 x 1-1/4", Gr 5, Full Thd

- NF HH (7/16 x 1-1/4)

2шт.

20

H277566

WASHER

- Flat

2шт.

21

131-1170

LOCK NUT,7/16"-20, GA

NUT, LOCK, 7/16"-20, GA

2шт.

22

R38893

CASE

- Manual, Includes: Ref. 23

1шт.

23

151-522

RIVET,Pop, 3/16" x .575"

- Pop (3/16 x 9/16, 5/8 D.hd)

3шт.

24

352-85

BAG - Plastic

1шт.

25

R40745

STRAP

TIE - Nylon

1шт.

26

A141917

ROPE

LANYARD

1шт.
