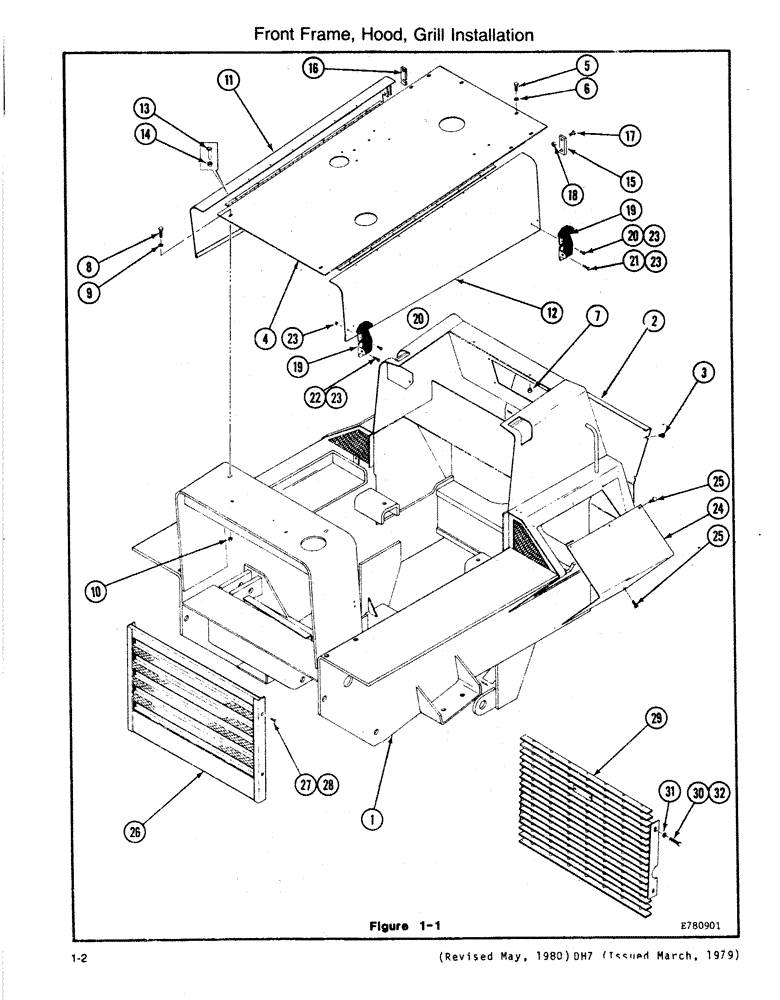

Запчасти Case DH7 (1-02) - FRONT FRAME, HOOD, GRILL INSTALLATION (39) - FRAMES AND BALLASTING

1

H632331

FRAME ASSEMBLY - Front, Serial Range: 1164542-1188366

1шт.

H650341

FRAME ASSEMBLY - Front, Start Serial: 1188367

1шт.

2

H361014

COVER - Console, Includes: Ref. 3

1шт.

3

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

4

H632307

HOOD ASSEMBLY - Center, Includes: Ref. 5 - 10, Serial Range: 1164542-1188366

1шт.

H651208

HOOD ASSEMBLY - Center, Includes: Ref. 5 - 10, Start Serial: 1188367

1шт.

5

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

6

195-521

WASHER,5/16", SAE

- Flat (5/16)

6шт.

7

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT NC HH C/L (5/16)

6шт.

8

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

9

195-525

WASHER,3/8", SAE

- Flat (3/8)

2шт.

10

230-4216

LOCK NUT,3/8"-16, GA

NUT NC HH C/L (3/8)

2шт.

11

H632182

HOOD ASSEMBLY - Right, Includes: Ref. 13 and 14, Serial Range: 1164542-1188366

1шт.

H651190

HOOD ASSEMBLY - Right, Includes: Ref. 13 and 14, Start Serial: 1188367

1шт.

12

H632190

HOOD ASSEMBLY - Left, Includes: Ref. 13 and 14, Serial Range: 1164542-1188366

1шт.

H651182

HOOD ASSEMBLY - Left, Includes: Ref. 13 and 14, Start Serial: 1188367

1шт.

13

H352674

BOLT

PIN

14шт.

14

H352682

COLLAR

14шт.

15

H332585

SUPPORT

HOLD-UP - Hood (left), Serial Range: 1164542-1188366

1шт.

16

H373704

HOLD-UP - Hood (right), Serial Range: 1164542-1188366

1шт.

H373704

HOLD-UP - Hood, Includes: Ref. 17 and 18, Start Serial: 1188367

2шт.

17

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

18

230-4216

LOCK NUT,3/8"-16, GA

NUT NC HH C/L (3/8)

2шт.

19

H628263

LATCH ASSY.

LATCH - Hood, Includes: Ref. 20 - 23

4шт.

20

163-32

SCREW,Hex, #10 - 24 x 1/2"

BOLT NC HH (#10 x 1/2)

8шт.

21

113-1003

SCREW,Hex, #10 - 24 x 3/4", Gr 5

4шт.

22

113-1001

SCREW,Hex, #10 - 24 x 1"

BOLT NC HH (#10 x 1)

4шт.

23

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, #10-24, GA

16шт.

24

H361006

COVER - Pump, Includes: Ref. 25

2шт.

25

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

8шт.

26

H635755

GRILL, Includes: Ref. 27 and 28, Serial Range: 1164542-1188366

1шт.

27

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

, Serial Range: 1164542-1188366

4шт.

28

131-115

NUT

- Tinnerman (1/4), Serial Range: 1164542-1188366

4шт.

29

H648543

GRILL, Includes: Ref. 30 - 32, Start Serial: 1188367

1шт.

30

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

, Start Serial: 1188367

4шт.

31

195-525

WASHER,3/8", SAE

- Flat (3/8), Start Serial: 1188367

4шт.

32

230-4216

LOCK NUT,3/8"-16, GA

NUT NC HH C/L (3/8), Start Serial: 1188367

4шт.
