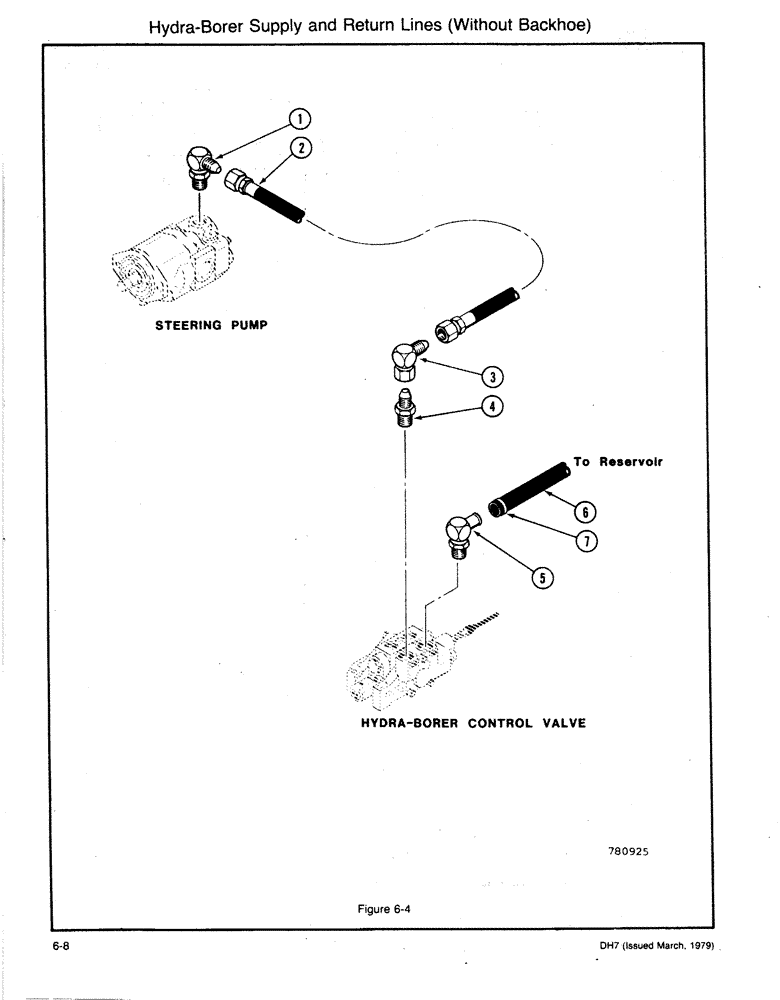

Запчасти Case DH7 (6-08) - HYDRA-BORER SUPPLY AND RETURN LINES (WITHOUT BACKHOE) (35) - HYDRAULIC SYSTEMS

1

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degrees (7/8 ORB x 7/8 JIC M)

1шт.

2

L46723

HOSE

- 1/2 x 40 (7/8 JIC Fe Sw x 7/8 JIC Fe Sw)

1шт.

3

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degrees (7/8 JIC M x 7/8 JIC Fe Sw)

1шт.

4

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - Straight (1-1/16 ORB x 7/8 JIC M)

1шт.

5

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW - 90 degrees (1-1/16 ORB x 3/4 Barb)

1шт.

6

H338095

HOSE

- 3/4 x 61

1шт.

7

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose

2шт.
