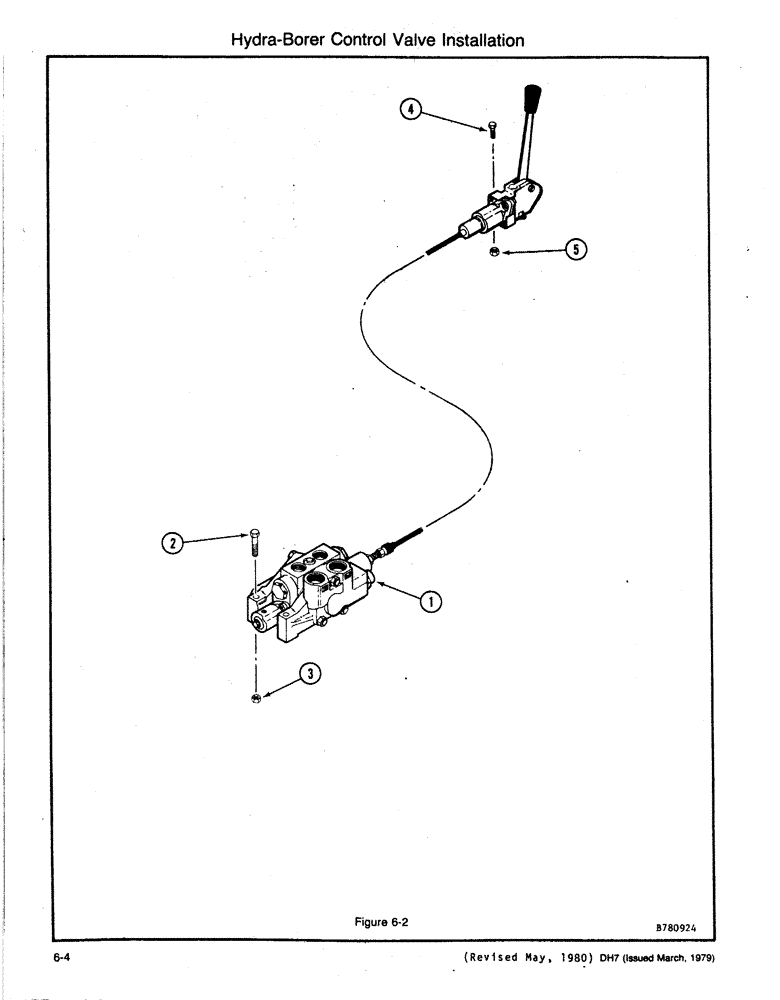

Запчасти Case DH7 (6-04) - HYDRA-BORER CONTROL VALVE INSTALLATION (35) - HYDRAULIC SYSTEMS

1

H652255

VALVE

/CABLE ASSEMBLY (See Figure 6-16), Includes: Ref. 2 - 5

1шт.

2

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

- NC HH (3/8 x 3)

3шт.

3

230-4216

LOCK NUT,3/8"-16, GA

NUT - NC Hex C/L (3/8)

3шт.

4

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

5

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.
