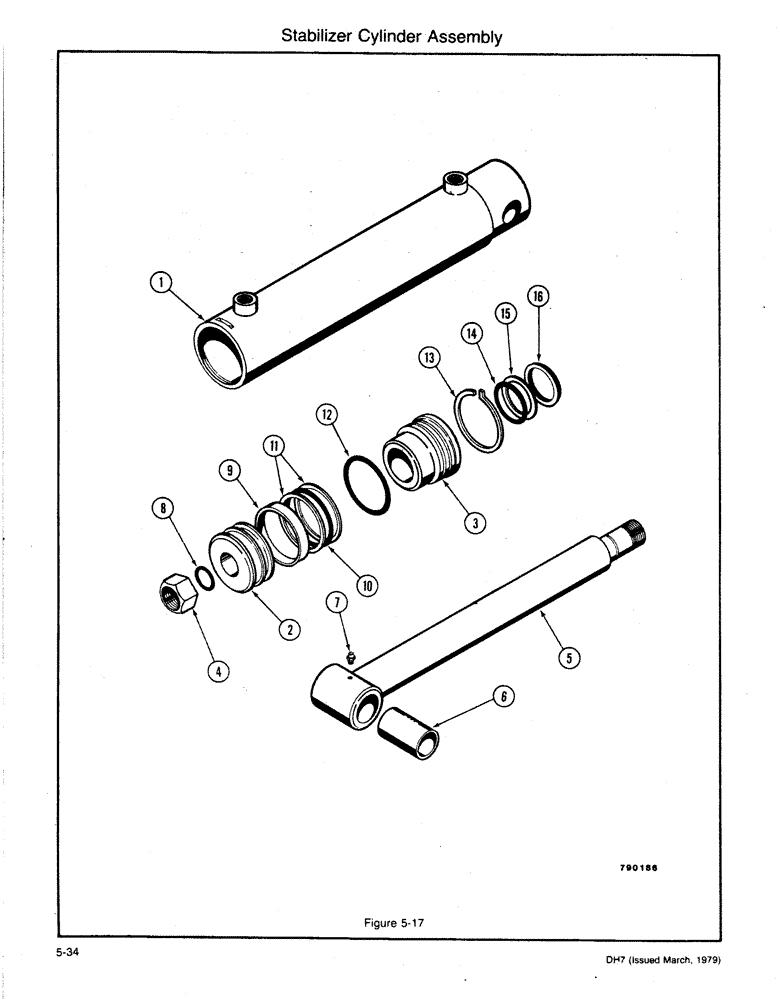

Запчасти Case DH7 (5-34) - STABILIZER CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

H587782

CYLINDER BLOCK

CYLINDER ASSEMBLY - Stabilizer, Includes: Ref. 1 - 16

2шт.

1

H596098

CYLINDER

BARREL

1шт.

2

H274050

PISTON ASSY.

PISTON

1шт.

3

H274068

GLAND

1шт.

4

H223198

NUT

1шт.

H596080

ROD

ASSEMBLY - Piston, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

ROD - Piston

1шт.

6

H274043

BUSHING

1шт.

7

H745299

FITTING

- Grease

2шт.

H596072

SEAL ASSY.

KIT - Seal Repair, Includes: Ref. 8 - 16

1шт.

Ref. 7 another grease fitting used not a sub 219-8.

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - Rod Static

1шт.

9

NSS

NOT SOLD SEPARAT

RING - Wear

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - Piston

1шт.

11

NSS

NOT SOLD SEPARAT

RING - Backup

2шт.

12

NSS

NOT SOLD SEPARAT

SEAL - Gland Static

1шт.

13

NSS

NOT SOLD SEPARAT

WIRE - Lock

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - Rod

1шт.

15

NSS

NOT SOLD SEPARAT

RING - Backup

1шт.

16

NSS

NOT SOLD SEPARAT

WIPER - Rod

1шт.
