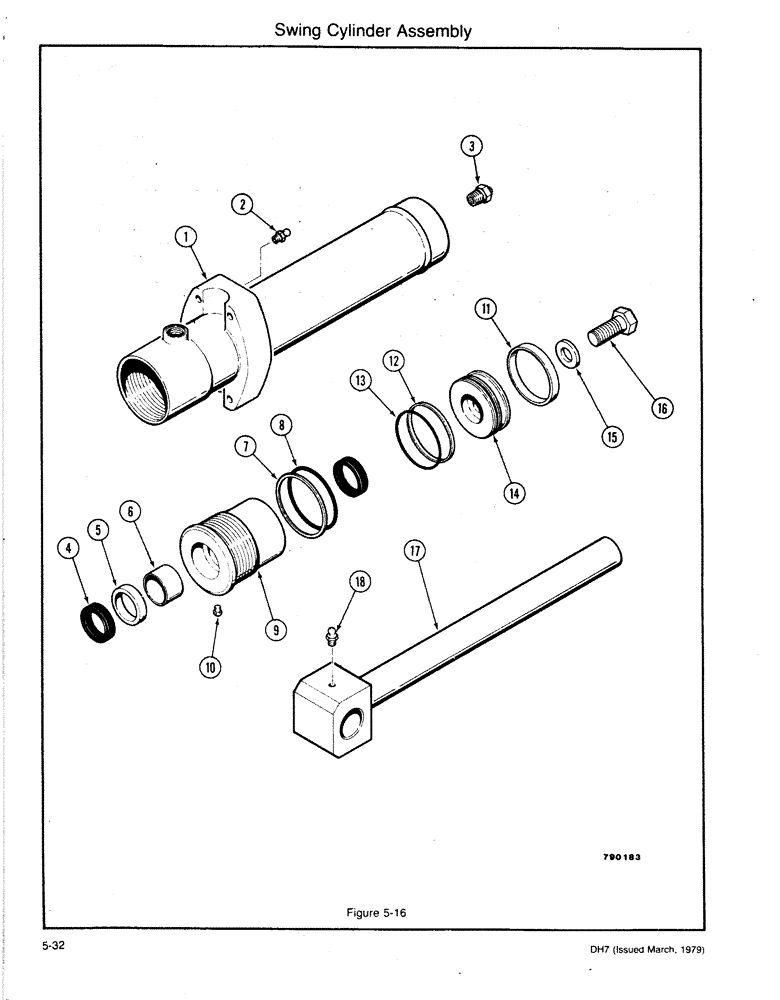

Запчасти Case DH7 (5-32) - SWING CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

G100905

CYLINDER ASSY.

CYLINDER ASSEMBLY - Swing, Includes: Ref. 1 - 18

2шт.

1

G100906

TUBE,18.55" L

BARREL

1шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - Grease

2шт.

3

A43250

BREATHER

VALVE - Relief

1шт.

G35218

GLAND

ASSEMBLY, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

WIPER - Rod

1шт.

Order G34656 Seal Repair Kit

1шт.

5

NSS

NOT SOLD SEPARAT

RING - Steel

1шт.

Order G34656 Seal Repair Kit

1шт.

6

NSS

NOT SOLD SEPARAT

BEARING - Rod

1шт.

Order G34656 Seal Repair Kit

1шт.

7

NSS

NOT SOLD SEPARAT

RING - Backup

1шт.

Order G34656 Seal Repair Kit

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Order G34656 Seal Repair Kit

1шт.

9

NSS

NOT SOLD SEPARAT

GLAND

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - NC Self Tapping (No. 8 x 1/4)

1шт.

G35263

PISTON

ASSEMBLY, Includes: Ref. 11 - 14

1шт.

11

NSS

NOT SOLD SEPARAT

RING - Wear

1шт.

Order G34656 Seal Repair Kit

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL

1шт.

Order G34656 Seal Repair Kit

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Order G34656 Seal Repair Kit

1шт.

14

NSS

NOT SOLD SEPARAT

PISTON

1шт.

15

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- Special, Includes: Ref. 16

1шт.

16

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

17

G100912

ROD

- Piston

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - Grease

1шт.

19

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street 90º, 1/8"-27, NPT

1шт.

20

H396119

HOSE ASSY.

HOSE

1шт.
