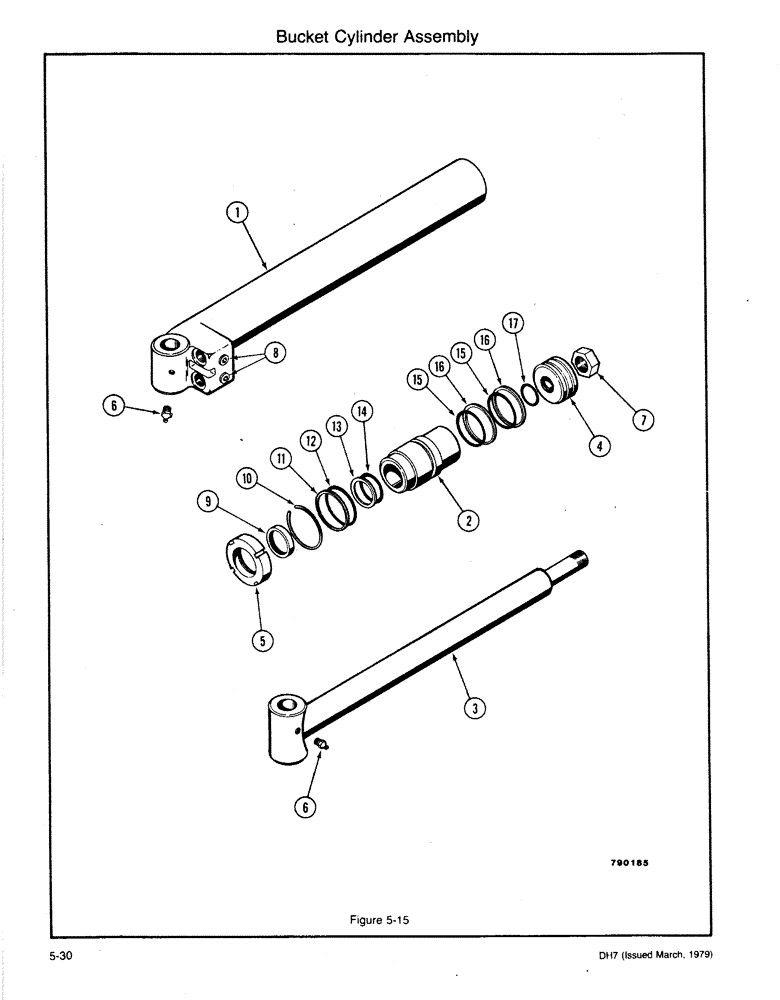

Запчасти Case DH7 (5-30) - BUCKET CYLINDER ASSEMBLY (35) - HYDRAULIC SYSTEMS

H530493

CYLINDER

ASSEMBLY - Bucket, Includes: Ref. 1 - 17

1шт.

1

H120386

CYLINDER

BARREL

1шт.

2

H120394

BEARING

1шт.

3

H120402

ROD

- Piston

1шт.

4

H120410

PISTON ASSY.

PISTON

1шт.

5

H120428

BUSHING

NUT - Bearing

1шт.

6

H745257

FITTING

- Grease

2шт.

7

H737650

NUT

1шт.

8

H749564

PLUG

- Pipe

2шт.

H120444

GASKET KIT

KIT - Seal Repair, Includes: Ref. 9 - 17

1шт.

9

NSS

NOT SOLD SEPARAT

WIPER - Rod

1шт.

10

NSS

NOT SOLD SEPARAT

WIRE - Lock

1шт.

11

NSS

NOT SOLD SEPARAT

RING - Backup

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - Bearing Static

1шт.

13

NSS

NOT SOLD SEPARAT

RING - Backup

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - Piston Rod

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - Piston

2шт.

16

NSS

NOT SOLD SEPARAT

RING - Backup

2шт.

17

NSS

NOT SOLD SEPARAT

SEAL - Rod Static

1шт.
