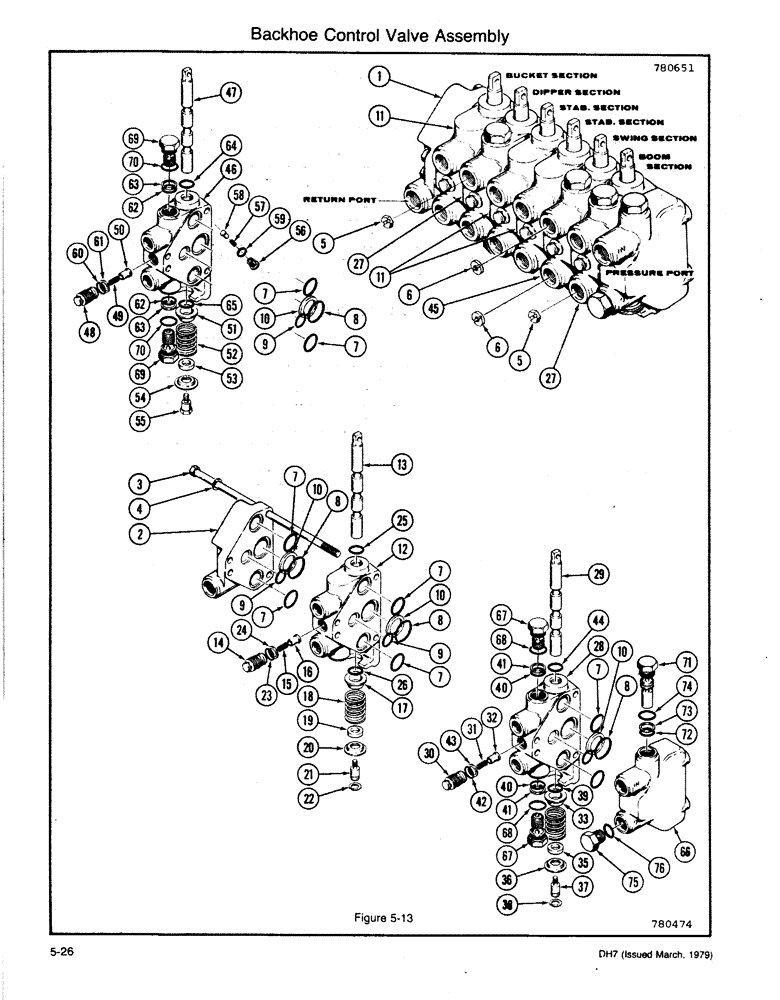

Запчасти Case DH7 (5-26) - BACKHOE CONTROL VALVE ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

H528844

LOCK VALVE

VALVE ASSEMBLY - Backhoe Control, Includes: Ref. 2 - 76

1шт.

2

H52803

PLATE ASSY.

OUTLET SECTION - Valve

1шт.

3

H52811

BOLT

BOLT - Section Retaining

4шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

H746859

PLATE ASSY.

ORIFICE - Dipper Section (upper), Boom Section (lower)

2шт.

6

H60178

PLATE ASSY.

ORIFICE - Swing Section (both parts)

2шт.

H120097

SEAL ASSY.

KIT - Seal Repair (section to section), Includes: Ref. 7 - 10

1шт.

7

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - O-Ring (medium)

14шт.

8

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

SEAL - O-Ring (large)

7шт.

9

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

SEAL - O-Ring (small)

7шт.

10

H210849

WASHER

- Backup

7шт.

H120105

SEAL ASSY.

KIT - Major Seal Repair (contains all seals need to overhaul valve)

1шт.

11

H513648

VALVE

BUCKET AND STABILIZER SECTIONS, Includes: Ref. 12 - 26

3шт.

12

NSS

NOT SOLD SEPARAT

BODY - Valve Sections

1шт.

13

NSS

NOT SOLD SEPARAT

SPOOL - Valve

1шт.

14

H52886

BODY

- Lift Check

1шт.

15

H47514

SPRING

- Check

1шт.

16

H52894

PLUNGER

1шт.

17

H52902

CAP

RETAINER - Spring (deep)

1шт.

18

F59118

SPRING

- Spool Return

1шт.

19

H746164

WASHER

SPACER - Spring

1шт.

20

F59116

WASHER

RETAINER - Spring (shallow)

1шт.

21

NSS

NOT SOLD SEPARAT

SCREW - Spool

1шт.

22

A27804

CIRCLIP,#50, .392" Dia, E-Type

RING, Retaining, #50, .392" Dia, E-Type

1шт.

H52977

GASKET KIT

KIT - Seal Repair, Includes: Ref. 23 - 26

1шт.

23

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

SEAL - O-Ring, Check

1шт.

24

L30443

BACK-UP RING,0.547" ID x 0.049" Width

WASHER - Backup

1шт.

25

F37887

O-RING

SEAL - O-Ring, Spool (upper)

1шт.

26

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL - O-Ring, Spool (lower)

1шт.

27

H513630

SECTOR

DIPPER AND BOOM SECTIONS, Includes: Ref. 28 - 38

2шт.

28

NSS

NOT SOLD SEPARAT

BODY - Valve Sections

1шт.

29

NSS

NOT SOLD SEPARAT

SPOOL - Valve

1шт.

30

H52886

BODY

- Lift Check

1шт.

31

H47514

SPRING

- Check

1шт.

32

H52894

PLUNGER

1шт.

33

H52902

CAP

RETAINER - Spring (deep)

1шт.

34

F59118

SPRING

- Spool Return

1шт.

35

H746164

WASHER

SPACER - Spring

1шт.

36

F59116

WASHER

RETAINER - Spring (shallow)

1шт.

37

NSS

NOT SOLD SEPARAT

SCREW - Spool

1шт.

38

A27804

CIRCLIP,#50, .392" Dia, E-Type

RING, Retaining, , Includes: Ref. 39 - 44 #50, .392" Dia, E-Type

1шт.

H52985

GASKET KIT

KIT - Seal Repair, Includes: Ref. 39 - 44

1шт.

39

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL - O-Ring, Spool (lower)

1шт.

40

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - O-Ring, Relief Valve

4шт.

41

A35698

BACK-UP RING

WASHER - Backup, Relief Valve

2шт.

42

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

SEAL - O-Ring, Check

1шт.

43

L30443

BACK-UP RING,0.547" ID x 0.049" Width

WASHER - Backup, Check

1шт.

44

F87887

SEAL - O-Ring, Spool (upper)

1шт.

45

H641514

KNIFE SECTION

SWING SECTION, Includes: Ref. 46 - 65

1шт.

46

NSS

NOT SOLD SEPARAT

BODY - Valve Section

1шт.

47

NSS

NOT SOLD SEPARAT

SPOOL - Valve

1шт.

48

H52886

BODY

- Lift Check

1шт.

49

H47514

SPRING

- Check

1шт.

50

H52894

PLUNGER

1шт.

51

H52902

CAP

RETAINER - Spring (deep)

1шт.

52

F59118

SPRING

- Spool Return

1шт.

53

H746164

WASHER

SPACER - Spring

1шт.

54

F59116

WASHER

RETAINER - Spring (shallow)

1шт.

55

H138248

SCREW,1/4" - 20 x 7/16"

- Spool

1шт.

56

NSS

NOT SOLD SEPARAT

PLUG - Check

2шт.

57

F36082

SPRING

- Check

2шт.

58

F36081

VALVE POPPET

PLUNGER

2шт.

H641852

SEAL ASSY.

KIT - Seal Repair, Includes: Ref. 59 - 65

1шт.

59

H756627

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

SEAL - O-Ring, Check Plug

2шт.

60

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

SEAL - O-Ring, Check

1шт.

61

L30443

BACK-UP RING,0.547" ID x 0.049" Width

WASHER - Backup, Check

1шт.

62

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - O-Ring, Relief Valve

2шт.

63

A35698

BACK-UP RING

WASHER - Backup, Relief Valve

2шт.

64

F37887

O-RING

SEAL - O-Ring, Spool (upper)

1шт.

65

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL - O-Ring, Spool (lower)

1шт.

66

H52852

PLATE ASSY.

INLET AND OUTLET SECTION - Valve

1шт.

H351791

VALVE

- Relief (3000 PSI) (dipper and boom sections), Includes: Ref. 67 and 68

4шт.

67

NSS

NOT SOLD SEPARAT

BODY - Relief Valve

1шт.

68

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - O-Ring

1шт.

H120204

LOCK VALVE

VALVE - Relief (2375 PSI) (swing section), Includes: Ref. 69 and 70

2шт.

69

NSS

NOT SOLD SEPARAT

BODY - Relief Valve

1шт.

70

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - O-Ring

1шт.

H120121

VALVE

- Relief (2375 PSI) (inlet and outlet section), Includes: Ref. 71 - 74

1шт.

71

NSS

NOT SOLD SEPARAT

BODY - Relief Valve

1шт.

72

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

SEAL - O-Ring

1шт.

73

G32626

RING

WASHER - Backup

1шт.

74

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

SEAL - O-Ring

1шт.

75

86512512

PLUG,7/8" - 14 ORB

1шт.

76

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - O-Ring

1шт.
