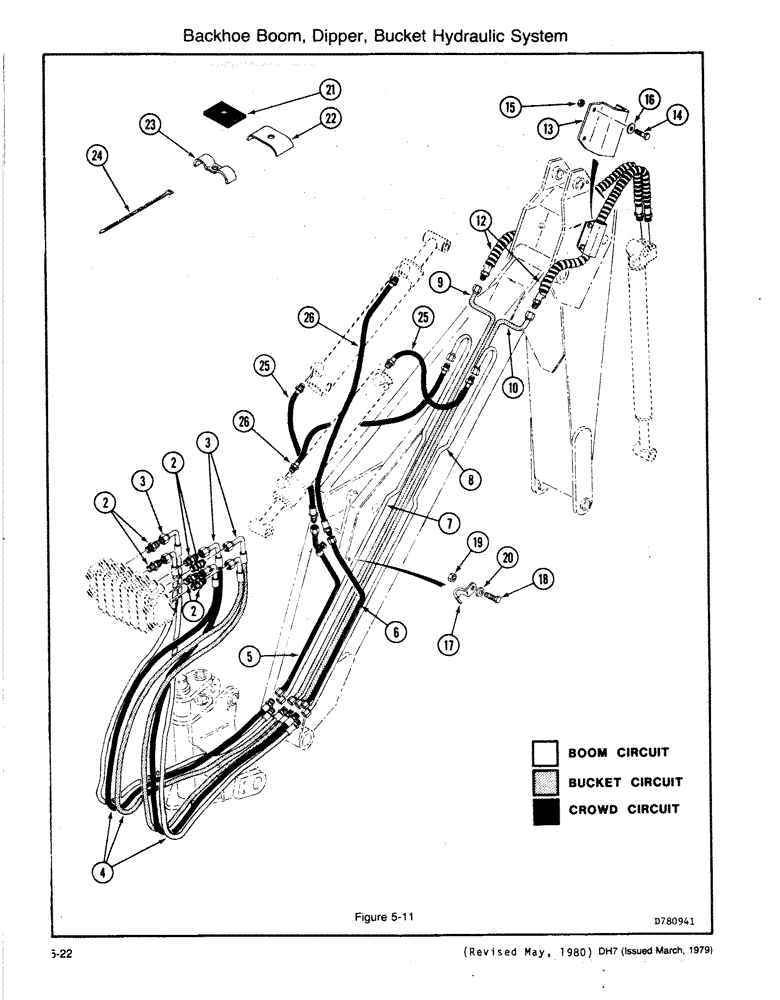

Запчасти Case DH7 (5-22) - BACKHOE BOOM, DIPPER, BUCKET HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR (3/4 ORB x 3/4 JIC M)

6шт.

3

H270645

HOSE

AND TUBE - 3/8 x 34'

3шт.

4

H270637

HOSE

AND TUBE - 3/8 x 31'

3шт.

5

H630327

TUBE ASSY.

TUBE - Crowd - LH

1шт.

6

H630319

TUBE ASSY.,0.625" OD

TUBE - Crowd - RH

1шт.

7

H594382

TUBE,0.625" OD x 56, 2.5" L

- Boom - LH

1шт.

8

H594390

TUBE

- Boom - RH

1шт.

9

H594408

TUBE,0.625" OD x 62.312, 4" L

- Bucket - LH

1шт.

10

H594416

TUBE ASSY.

TUBE - Bucket - RH

1шт.

12

H270280

HOSE

- 1/2 x 39 (3/4 ORB x 7/8 JIC M)

2шт.

13

H111468

CLAMP

- Hose, Includes: Ref. 14 - 16

2шт.

14

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

15

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - Hex (5/16 NC Lock)

4шт.

16

195-521

WASHER,5/16", SAE

- Flat (5/16)

4шт.

17

H98897

CLAMP

- Tube, Includes: Ref. 18 - 20

4шт.

18

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

4шт.

19

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - Hex (5/16 NC Lock)

4шт.

20

195-521

WASHER,5/16", SAE

- Flat (5/16)

4шт.

21

H356675

PAD

4шт.

22

H46888

CLAMP

- Tube

2шт.

23

H59345

CLAMP

- Hose

1шт.

24

H119628

MOUNTING CLIP

STRAP - Plastic Banding

4шт.

25

H357897

HOSE ASSY.

HOSE - 1/2 x 15 (3/4 ORB x 7/8 JIC M)

2шт.

26

H357905

HOSE ASSY.

HOSE - 1/2 x 43 (3/4 ORB x 7/8 JIC M)

2шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
