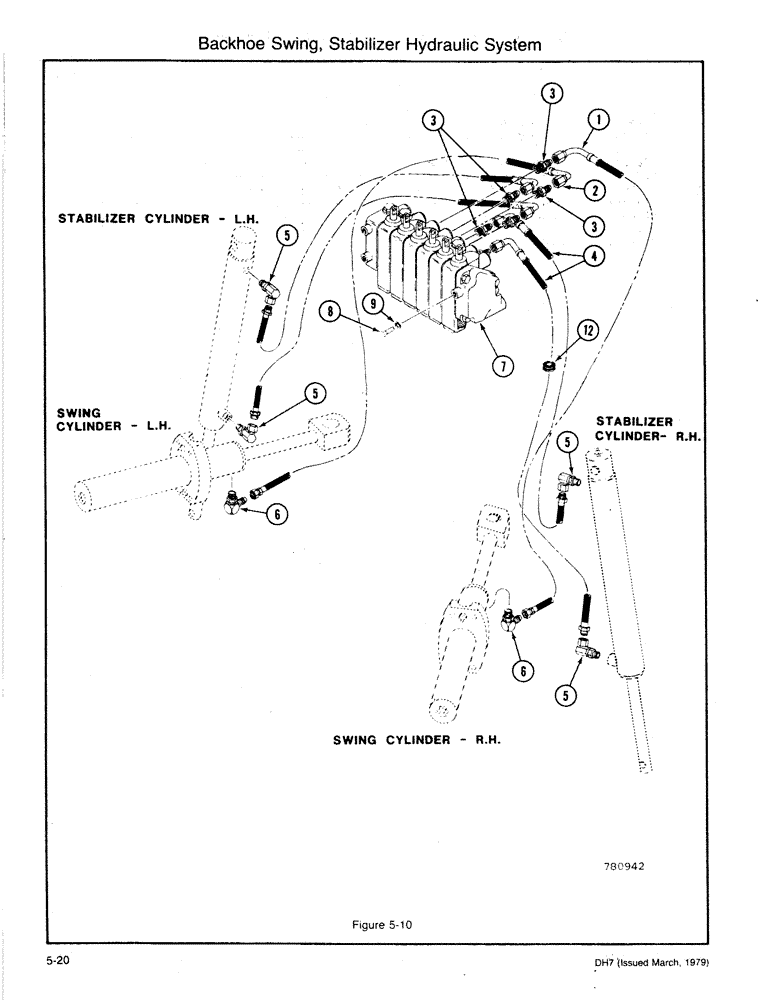

Запчасти Case DH7 (5-20) - BACKHOE SWING, STABLILIZER HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

H357913

HOSE ASSY.

HOSE AND TUBE - 1/4 x 16 (9/16 JIC Fe Sw Ends)

1шт.

2

H357921

HOSE ASSY.

HOSE AND TUBE - 1/4 x 12 1/2 (9/16 JIC Fe Sw Ends)

1шт.

3

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

CONNECTOR (3/4 ORB x 9/16 JIC M)

6шт.

218-2006

O-RING

1шт.

4

H112607

HOSE,0.375" OD x 30" L

AND TUBE - 1/4 x 30 (3/8 MP x 9/16 JIC M)

4шт.

5

218-5392

ELBOW,90 Degree, 9/16"-18 O-Ring x 3/8" NPSM Fem

- 90 degrees (9/16 ORB x 3/8 NPSM)

4шт.

6

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degrees (3/4 ORB x 9/16 JIC M)

2шт.

7

H528844

LOCK VALVE

BACKHOE CONTROL VALVE Assembly (See Figure 5-26), Includes: Ref. 8 and 9

1шт.

8

113-335

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5, Full Thd

3шт.

9

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

12

S99941

GROMMET

4шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
