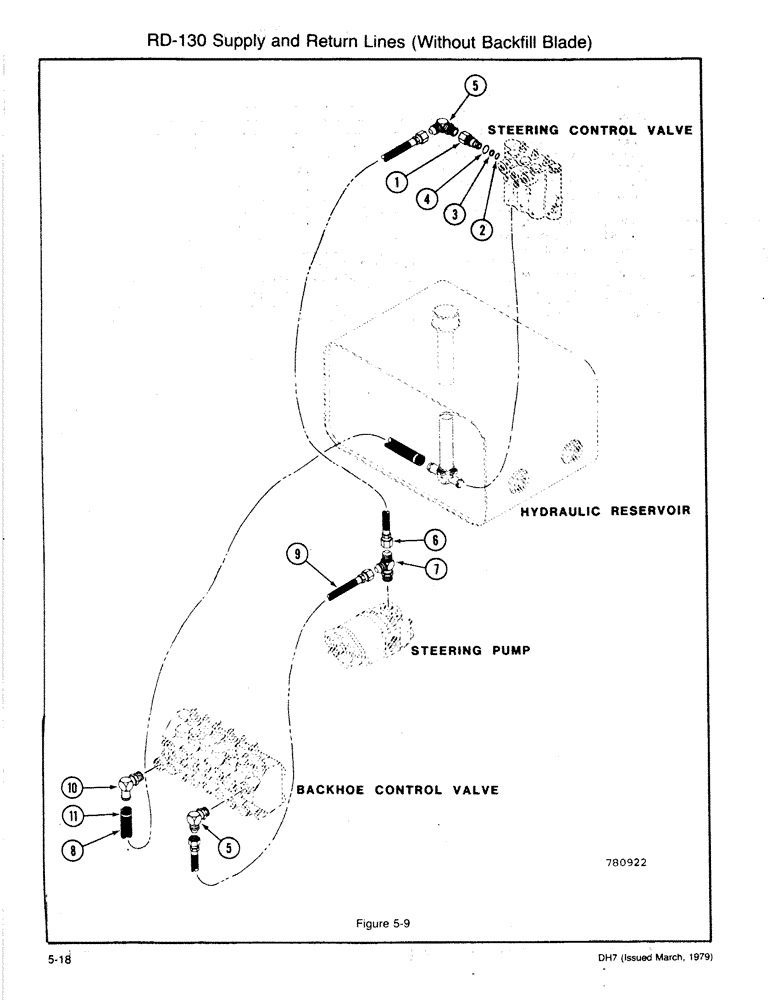

Запчасти Case DH7 (5-18) - RD-130 SUPPLY AND RETURN LINES (WITHOUT BACKFILL BLADE) (35) - HYDRAULIC SYSTEMS

D61608

SLEEVE

ADAPTER - Pressure Beyond, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

2

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

O RING

1шт.

3

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

WASHER - Backup

1шт.

4

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

O RING

1шт.

5

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degrees (7/8 ORB x 7/8 JIC M)

2шт.

6

H202028

HOSE

- 1/2 x 58 (7/8 JIC Fe Sw Ends)

1шт.

7

D24568

TEE

(7/8 JIC M x 7/8 ORB x 7/8 JIC M)

1шт.

8

H341362

HOSE

(3/4 x 80)

1шт.

9

H246074

HOSE - 1/2 x 86 (7/8 JIC Fe Sw Ends)

1шт.

10

217-361

FITTING,90 Degree Elbow, 3/4" Hose Barb x 7/8" - 14 Male ORB

ELBOW - 90 degrees (7/8 ORB x 7/8 JIC M)

1шт.

11

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose

2шт.
