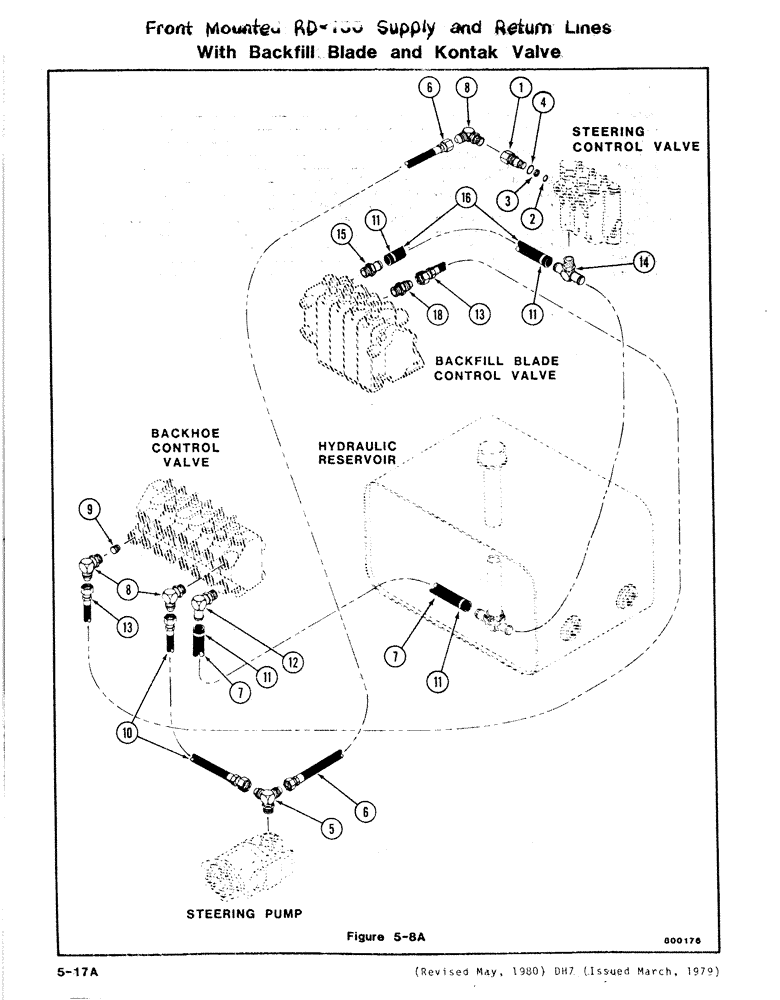

Запчасти Case DH7 (5-17A) - WITH BACKFILL BLADE AND KONTAK VALVE (35) - HYDRAULIC SYSTEMS

D61608

SLEEVE

ADAPTER - Power Beyond, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

2

A7892

BEARING, CUP

O RING

1шт.

3

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

WASHER - Backup

1шт.

4

A14814

O RING (7/8)

1шт.

5

D53471

TEE

(7/8 ORB & 7/8 JIC M & 7/8 JIC M)

1шт.

6

H215798

HOSE 1/2 x 69 (7/8 JIC Fe Sw Both Ends)

1шт.

7

H382028

HOSE 3/4 x 122.05

1шт.

8

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

90 degrees (7/8 ORB & 7/8 JIC M)

3шт.

9

221-23

PLUG

- Power Beyond (3/8 SHd P)

1шт.

10

H246074

HOSE 1/2 x 104 (7/8 JIC Fe Sw Both Ends)

1шт.

11

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - Hose #12

4шт.

12

217-361

FITTING,90 Degree Elbow, 3/4" Hose Barb x 7/8" - 14 Male ORB

ELBOW 90 degrees (7/8 ORB & 3/4 Barb)

1шт.

13

H382101

HOSE 1/2 x 150 (7/8 JIC Fe Sw Both Ends)

1шт.

14

H356634

TEE (3/4 ORB & 3/4 Barb & 3/4 Barb)

1шт.

15

217-177

FITTING,3/4" Hose Barb x 1-1/16" - 12 Male ORB

ADAPTER - St (1-1/16 ORB & 3/4 Barb)

1шт.

16

H93385

HOSE

3/4 x 7

1шт.

17

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - St (1-1/16 ORB & 7/8 JIC M)

1шт.
